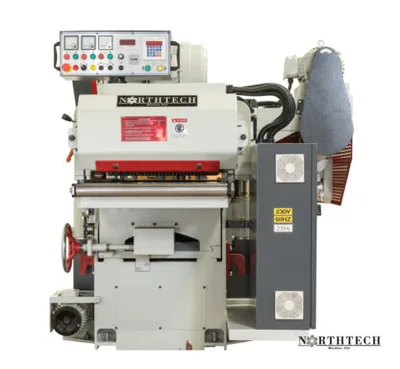

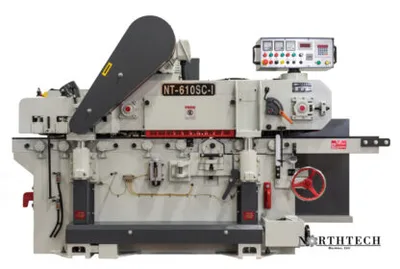

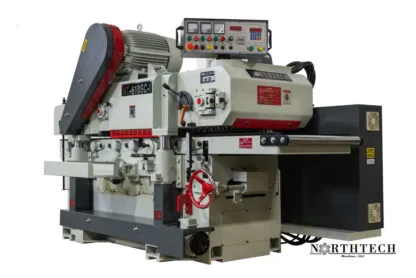

NEW NORTHTECH NT-610SC-I

The NT 610SC-I is our most popular double surfacer. Double surfacers, some times referred to as 2

sided planers are used to size the thickness of wood and other dense materials such as plastic. The

NT 610SC-I has a 24″ working width and an 8″ working height, making it an extremely versatile

machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters

for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed

system is designed with (7) rollers integrated in the chrome bed and a spring loaded carpet spike

infeed with a gearbox connected carden shay drive. The carden shay drive delivers a slack free

feed with out the common chain adjustments. The jointer table infeed and overhead spring loaded

carpet spike system allows this machine to not only size the thickness, but also straighten warped

or crooked material. The top head is easily accessible for tooling changes by removing the dust

hood and the bottom head pulls out of the machine completely in just a couple minutes for full

access. The upper assembly is supported by a (4) column slide system that provides precision

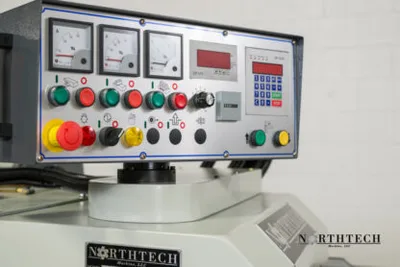

thickness sizing across the entire width and has digital thickness positioning control. Northtech

Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and

can be oxered with a safety/sound enclosure.

Voltage: 230/460V
Machine HP: 75 HP
Phase: 3Ph
