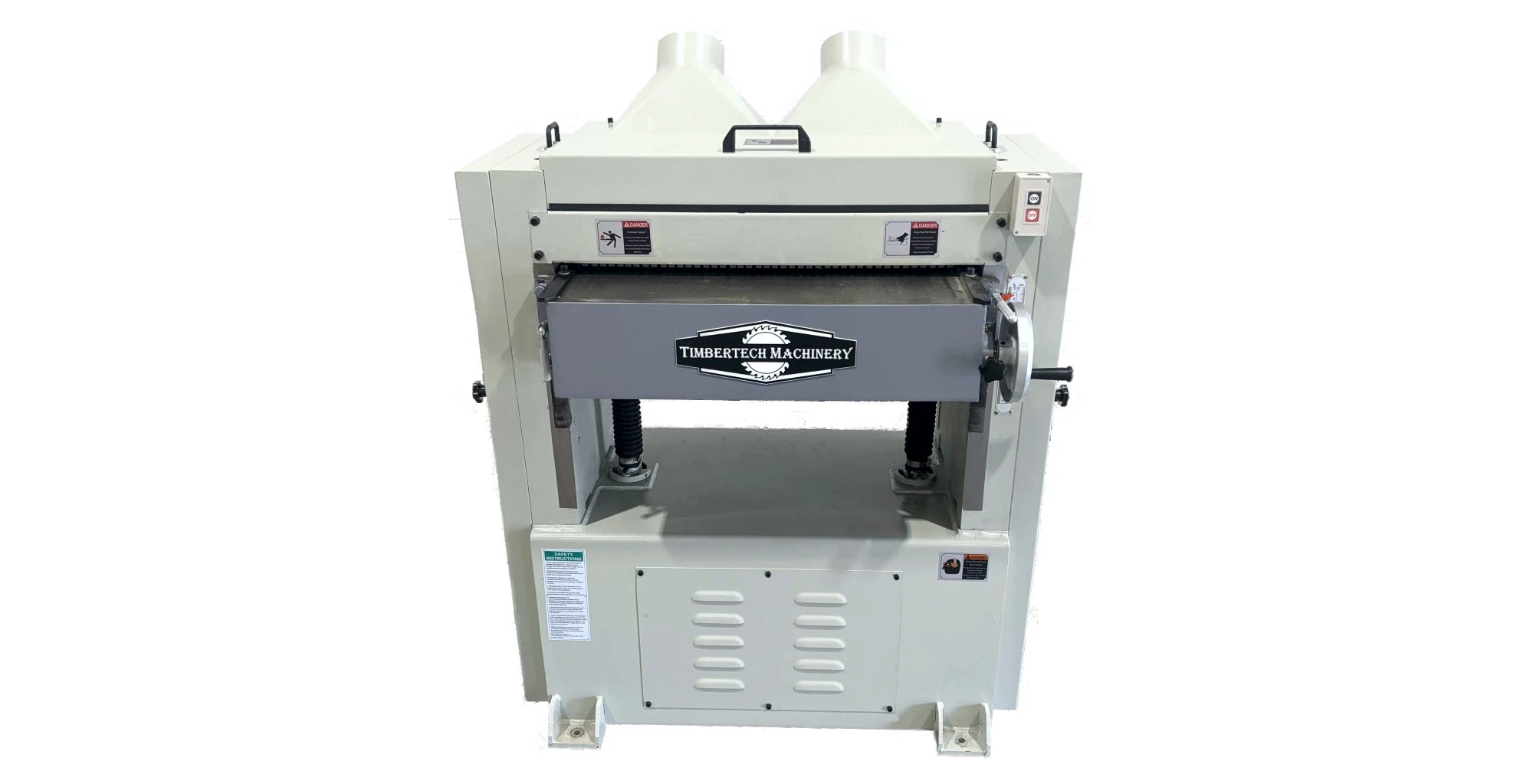

NEW TIMBERTECH T630S

Timbertech model T630S, 25″ Planer

PRODUCT DIMENSIONS

• Min. Thickness: 3/16”

• Min. Length: 8’’

• Max Thickness: 8’’

• Max. Width: 24-7/8’’

FEATURES

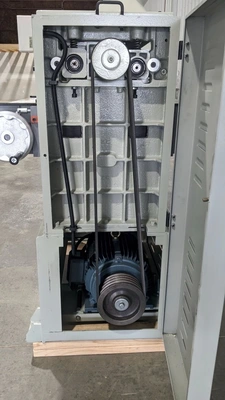

• Main Motor: 10HP, 3PH, 230V, 60 HZ

• Feed Motor: 1/2HP

• Feed System: Segmented Infeed / Solid Outfeed

• Segmented Chip Breaker

• Elevation System: (2) Jack Screws, Manual Adjustment

• Cutterhead: 5900 RPM, 3-1/4’’ x 25’’

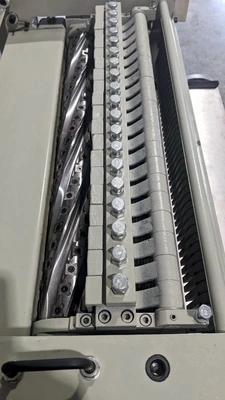

• 15x15x2.5mm insert knives, 6 rows (144 total)

• Full row of anti-kickback fingers for added operator safety

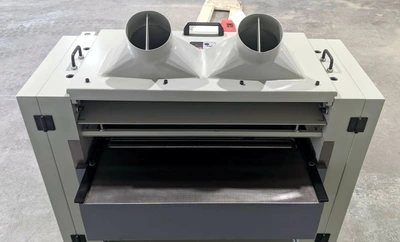

• Dust hood with 2 5’’ ports

• Table Size: 26’’ x 27-3/4’’

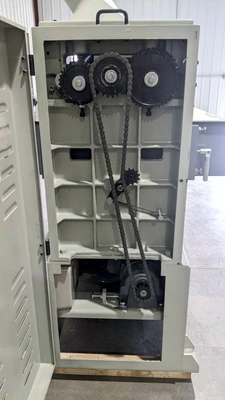

• Chain and Gear Drive Train

• (1) Tool box

• Amperage requirements: 230V, 60HZ, 3PH: 28 Amps

• Machine Dimensions: 39’’ x 29’’ x 53’’

• Machine / Packaging weight: 1,100 lbs. / 1,200 lbs.

• Warranty is one year parts

Download spec sheet here: Timbertech T630S Planer Specs

Voltage: 220V
Machine HP: 10
Phase: 3Ph
