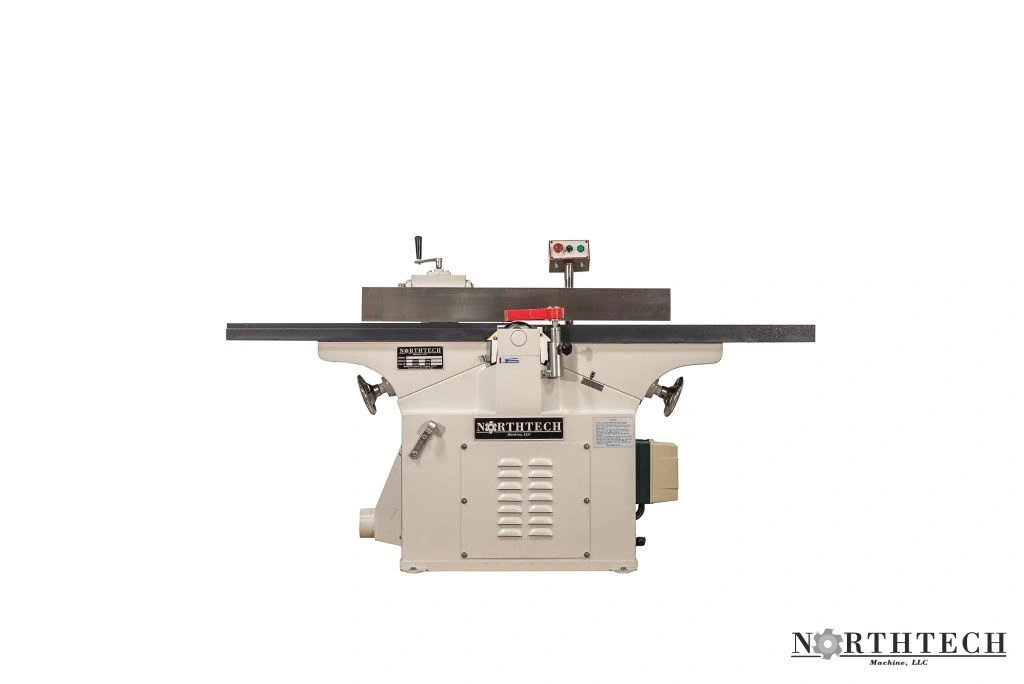

The NT-J12 Jointer has a 12″ working width and long infeed and outfeed table for a smooth and
flat surface making them ideal for gluing surface prep. Cast iron bases with dovetail slide infeed
and outfeed table provides the most rigid and precision movements available. This dovetail design
has a much longer precision capability over lower cost parallelogram designs that can have 16
different pivoting wear points. Northtech Jointers are designed for the industrial use and will
provide decades of use. Helical cutter heads employ a 30x12x2.5mm insert that can be rotated 2
times for a new cutting surface and provides more stock removal capability when compared to
square inserts.
TOP HEAD HP: 7.5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 10/20 Amps
ELEVATION STYLE: Manual Hand Wheel
ELEVATION SYSTEM: Dovetail Way
TOTAL MACHINE HP: 7.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: Line Voltage
PASS-LINE: 31-1/2”
MIN. WORKING LENGTH: 12”
MIN. WORKING WIDTH: 1”
MAX. WORKING WIDTH: 12”
MIN. WORKING THICKNESS: 5/8”
Voltage: 230/460
Machine HP: 7.5HP
Phase: 3Ph
