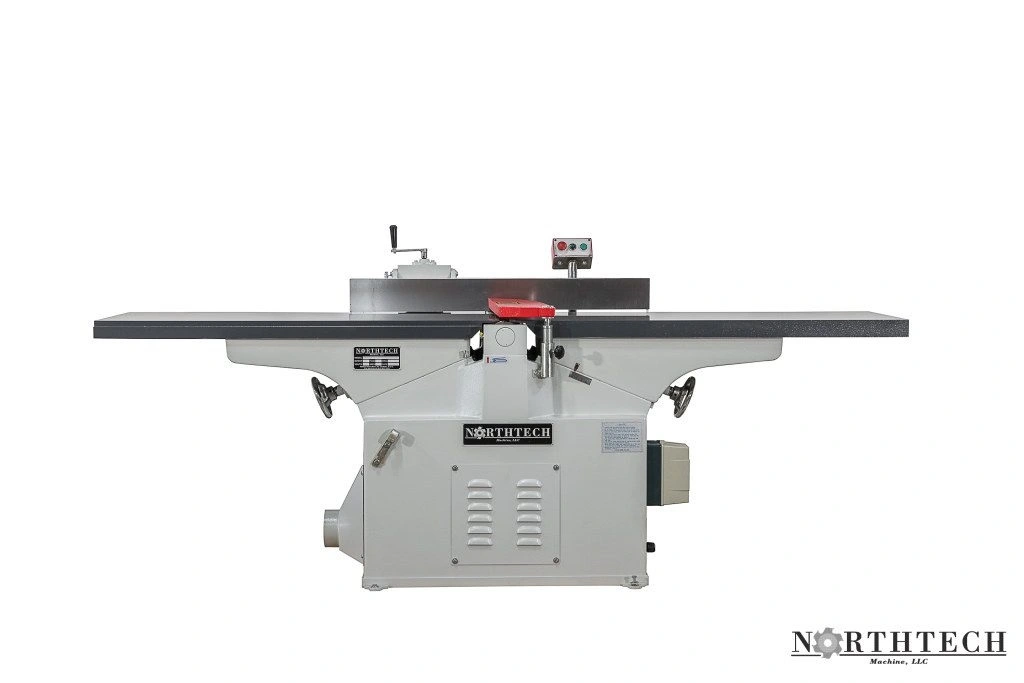

NEW NORTHTECH NT-J20

The NT-J20 Jointer has a 20″ working width, 10HP and over 100″ infeed and outfeed table for a

smooth and flat surface making them ideal for gluing surface prep. Cast iron bases with dovetail

slide infeed and outfeed table provides the most rigid and precision movements available. This

dovetail design has a much longer precision capability over lower cost parallelogram designs that

can have 16 di{erent pivoting wear points. Northtech Jointers are designed for the industrial use

and will provide decades of use. Helical cutter heads employ a 30x12x2.5mm insert that can be

rotated 2 times for a new cutting surface and provides more stock removal capability when

compared to square inserts.

TOP HEAD HP: 10 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60Hz

PHASE: 3 Phase

AMP REQUIREMENT: 13/26 Amps

ELEVATION STYLE: Manual Wheel Adjustment

ELEVATION SYSTEM: Dovetail Way

TOTAL MACHINE HP: 10 HP

APPROVED ELECTRICAL PARTS: CE Approved Parts

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: Line Voltage

PASS-LINE: 32-1/2” – 33-1/2”

MIN. WORKING LENGTH: 12”

MIN. WORKING WIDTH: 1-1/2”

MIN. WORKING THICKNESS: 5/8”

CUTTER HEAD RPM: 4830 RPM

Voltage: 230/460
Machine HP: 10HP
Phase: 3Ph
