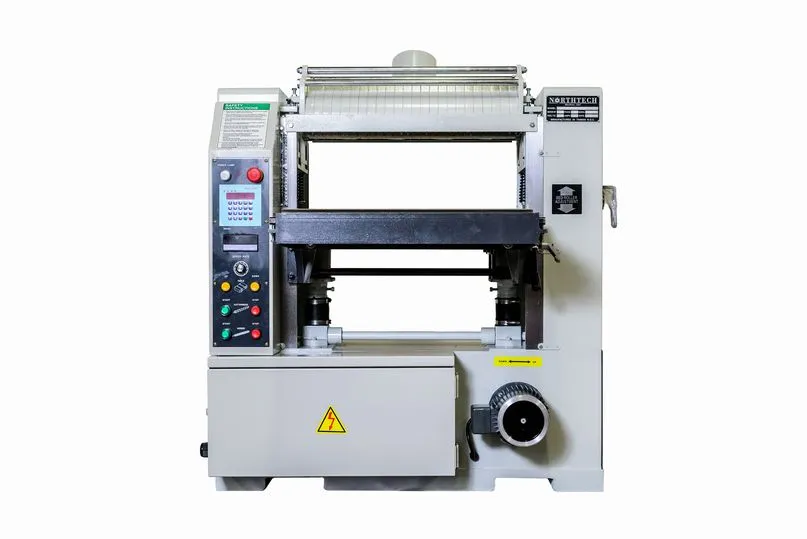

NEW NORTHTECH NT-24-15HCVS

The NT 24-15HCVS is Northtechs most popular planer and the best value available, which is why it is  called the Ultimate. The 24″ working width provides excellent flexibility and versatility and makes the Ultimate a staple in many wood shops and large factories across the US. The Ultimate comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop and inverter speed control. It also comes standard with limit switches to restrict head access while running, front and rear emergency stop buttons, and anti kick back fingers for added safety. The corrugated sectional infeed roller with smooth non marking outfeed roller coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. The 15HP motor powers the cutter head through any specie of material while providing a pristine finish. Unlike many competitive models, all Northtech feed rollers are synchronized to turn at the same speed.

Click here for a pdf spec sheet of this machine: Northtech Ultimate Planer Specs

TOP HEAD HP: 15 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60HZ

PHASE: 3 Phase

AMP REQUIREMENT: 19/38 Amps

FEED HP: 1 HP

FEED SYSTEM: Segmented Infeed / Poly Outfeed

FEED SPEED RANGE: 5-70 FPM

VARIABLE FEED SPEED: Inverter Controlled

ELEVATION HP: 1 HP

ELEVATION STYLE: REC 727M Digital Controller

ELEVATION SYSTEM: (2) Post Jack Screw

TOTAL MACHINE HP: 17 HP

APPROVED ELECTRICAL PARTS: CE Approved Components

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: 110 Volt

PROGRAMABLE: Elevation

MIN. WORKING LENGTH: 10”

MAX. WORKING WIDTH: 24”

MIN. WORKING THICKNESS: 3/16”

MAX. WORKING THICKNESS: 7-3/4”

CUTTER HEAD RPM: 5250 RPM

HEAD TYPE: Spiral Helical Cutter Head

CUTTER HEAD DIMENSIONS: 3-3/4” x 24”

CUTTER HEAD MATERIAL: Alloy Steel

ROWS OF CUTTERS: 6 Rows

NO. OF INSERTS: 144 Inserts

INSERT SIZE: 15 x 15 x 2.5 MM

DUST COLLECTION REQUIREMENT: 981 CFM @ Point of Extraction

DUST PORT SIZE OUTLET: (1) 6” Port

DIGITAL DISPLAY: Feed Speed / Elevation

POWERED ROLLERS: (2) Top Rollers

IDLE ROLLERS: (1) Bottom Infeed (1) Bottom Outfeed

HOLD DOWN STYLE: (24) Chip Breakers (1) Pressure Plate

REAR E STOP: Push Button

GUARDING: Full Enclosure

FRAME CONSTRUCTION: Cast/Steel Construction

INFEED TABLE LENGTH: 15-1/2” (3) Roller Infeed

DECIBEL RATING: 77 dB

NET WEIGHT: 1525 Lbs.

GROSS WEIGHT: 1630 Lbs.

MACHINE DIMENSIONS: 43” x 45” x 55”

PACKAGING DIMENSIONS: 36” x 49” x 54”

Voltage: 220/460 Volt
Machine HP: 17HP
Phase: 3Ph
