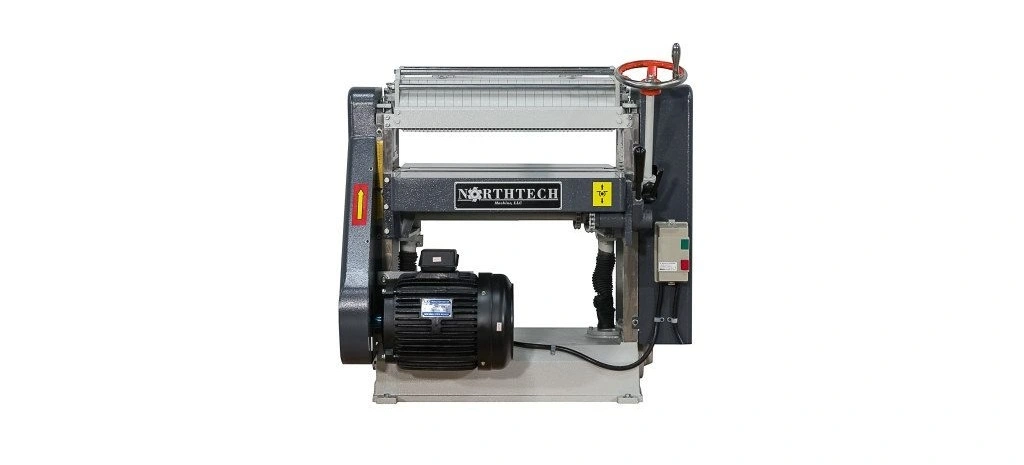

NEW NORTHTECH NT-24KHC3S

The NT 24K-10HC3S is our 24″ entry level planer. A classical but rugged and dependable design

with modern features such as sectionalized infeed rollers and helical heads. The 10HP motor

powers the feed and cutter head through a industrial gear pattern. The NT24 comes standard with

manual elevation control and single speed feed, but has an optional multi-speed feed system. The

overarm control center allows for safe control placement during operation while the flexibility of

varying product inputs. Unlike many single surface planers available, Northtech feed rollers are

synchronized to turn at the same speed.

Click here for a pdf spec sheet of this machine: Northtech NT-24KHC3S Planer Specs

VOLTAGE, FREQUENCY: 230/460 Volt 60HZ

PHASE: 3 Phase

AMP REQUIREMENT: 13/26 Amps

FEED HP: Driven By 10 HP Cutterhead Motor

FEED SYSTEM: Segmented Infeed / Rubber Roller Outfeed

DRIVE SYSTEM: Gear Driven

FEED SPEED RANGE: 20 / 25 / 30 FPM

VARIABLE FEED SPEED: 3 Speed Pulley

ELEVATION STYLE: Manual Wheel Adjustment

ELEVATION SYSTEM: (2) Post Jack Screw

TOTAL MACHINE HP: 10 Hp.

APPROVED ELECTRICAL PARTS: CE Approved Components

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: 230/460 Line Voltage

MIN. WORKING LENGTH: 8”

MAX. WORKING WIDTH: 24”

MIN. WORKING THICKNESS: 3/16”

MAX. WORKING THICKNESS: 7-9/16

CUTTER HEAD RPM: 5520 RPM

HEAD TYPE: Spiral Helical Cutter Head

CUTTER HEAD DIMENSIONS: 3-1/4” x 24”

CUTTER HEAD MATERIAL: Alloy Steel

ROWS OF CUTTERS: 6 Rows

NO. OF INSERTS: 150 Inserts

INSERT SIZE: 15 x 15 x 2.5 MM

DUST COLLECTION REQUIREMENT: 681 CFM @ Point of Extraction

DUST PORT SIZE OUTLET: (1) 5” Port

POWERED ROLLERS: (2) Top Powered Rollers

IDLE ROLLERS: (2) Bottom Idle Rollers

HOLD DOWN STYLE: (24) 1” Kickback Fingers / (1) Pressure Plate

FRAME CONSTRUCTION: Cast Constructionm

DECIBEL RATING: 75 dB

MACHINE DIMENSIONS: 36” x 39” x 41”

PACKAGING DIMENSIONS: 44” x 41” x 45”

Voltage: 220/460 Volt
Machine HP: 10HP
Phase: 3Ph
