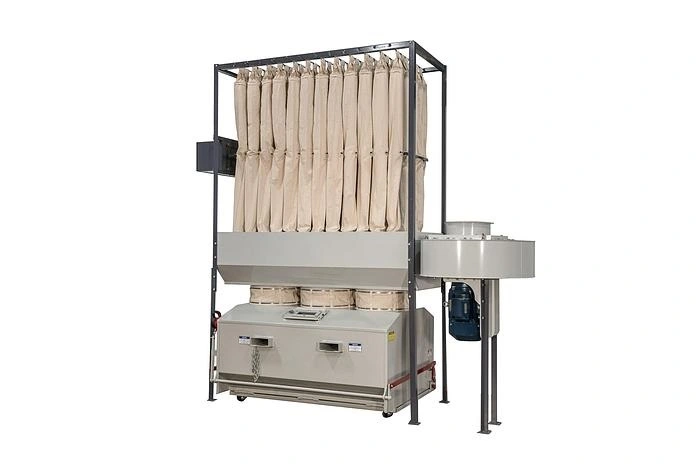

NEW NORTHTECH NT-DC5SS

Northech Soft Sound dust collectors.
Available in a 5hp, 7-1/2hp, 10hp and 15hp

Dust Collector with Enclosureless Baghouse and Soft Sound Technology

• Direct Drive Blower, 7.5HP 3PH, 208-230/460V 60HZ

• Fan performance: 1800RPM 5,000 CFM @ 3” WC ESP (External Static Pressure)

4,500 CFM @ 4.5” wc ESP

3,500 CFM @ 8” wc ESP

• 12” Ø Inlet @ 3,500 CFM standard

• 26” Ø Steel fabricated fan wheel is dynamically balanced

• Mechanical shaker included

• (48) 5” x 69” Cotton sateen filter tubes

• 340SF of filter media

• (2) 22-1/2” x 40” plastic waste bags disposal

• Air Velocity: 3648fpm

• Northtech is proud to manufacture this product in America

• 95% Return-air efficiency of 2.5 micron particles

• (Optional) Motorized mechanical filter shaker is 1/4HP TEFC motor

• Filter bags equipped with a quick clamp fit-up on the inlet side

Download spec sheet here: Northtech DC5SS Dust Collector

Voltage: 208-230/460 Volt
Machine HP: 5HP
Phase: 3Ph
