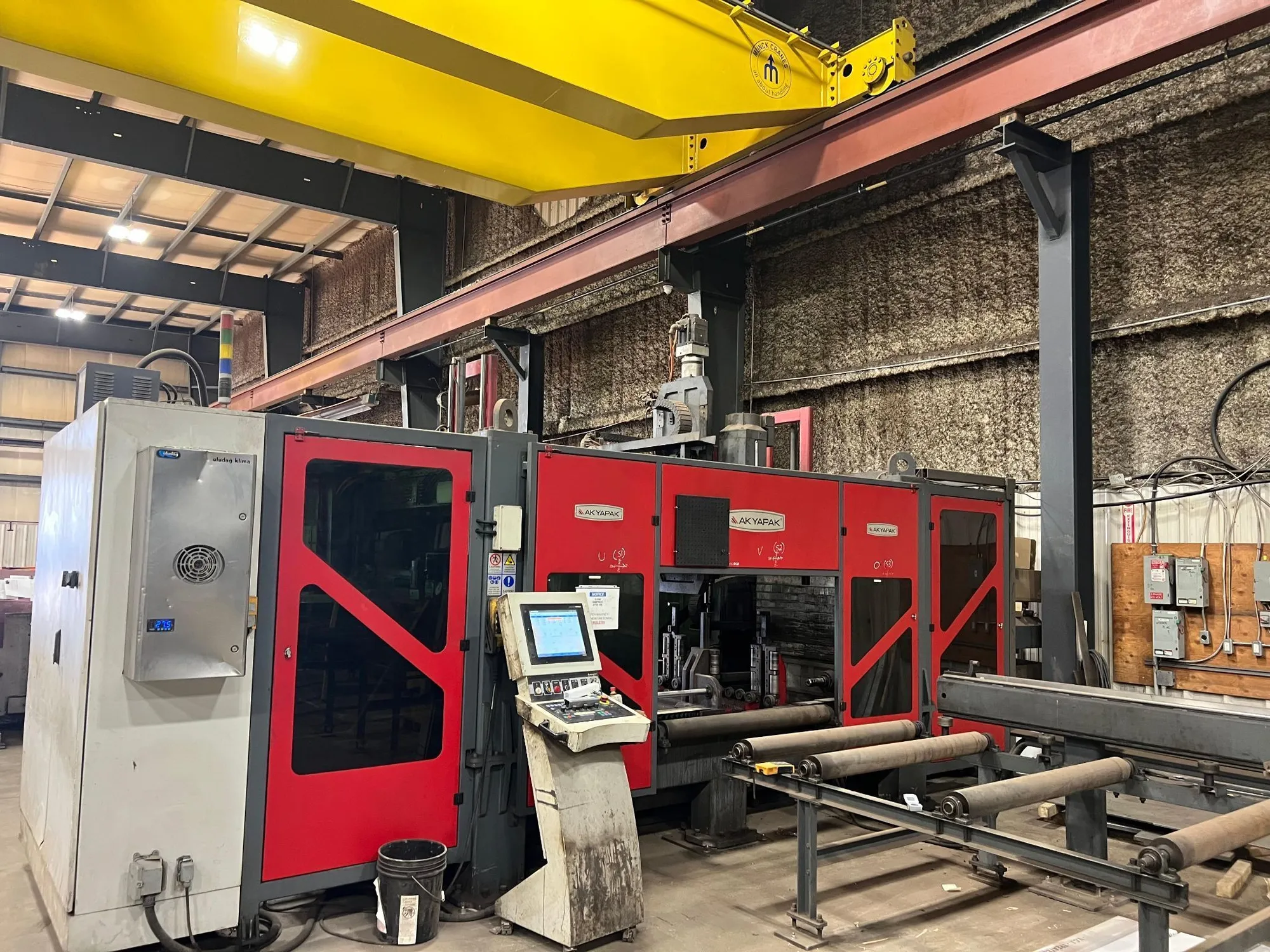

USED AKYAPAK 3ADM 1200

Akyapak 3 ADM 1200 CNC Drilling machine.

Key details:
Infeed and outfeed conveyors 12m
central lubrication sysatem
tool cooling
AC cooling for electrical panel
Auto tool changer
Mobile pedestal style control panel
Mitsubishi C70 CNC system
Lantek Flex 3D steel work
Feeding arm arm long enough to reach bandsaw - Behringer double mitre bandsaw
Chip conveyor
Tool and material management
Remote control
3 tools (1 per spindle)
1 air driven marking tool

Controller Mitsubishi
Operating Range mm
Min. 200 x 80
Max: 1200 x 500
Drilling Units 3
Spindle positioning speed /
returning speed m/min 15
Machine Weight kg 13000
Drill Diameter mm
10 – 40 (Carbide and U-drill)
40 – 50 (U-drill only)
Thread Tapping M12 – M24
Drill Holder BT40
Spindle Speed rpm 50 – 3000 stepless
Spindle Power kW 22
Spindle Torque Nm 280
Tool Changer 3 x 4
Weight per linear meter kg/m 60
