JUST SOLD. Inquire about other upcoming listings
| Max Profile Width | 41" | 1,041.4 mm |
| Minimum Profile Width | 2" | 50.8 mm |
| Max Profile Height | 18" | 457.2 mm |
| Minimum Profile Height | 0.375" | 9.525 mm |
| Layout Marking | Yes | Yes |
| Power Source | Hypertherm XPR300 Core (1 unit) | Hypertherm XPR300 Core (1 unit) |
| Amps | 300 | 300 |
| Bevel | Yes | Yes |
| Material Thickness | 3" | 76.2 mm |
| In-feed Conveyors | 41' | 12,497 mm |
| In-feed Transfers | 16' | 4,876.8 mm |
| Out-Feed Conveyors | 41' | 12,497 mm |
| Out-Feed Transfers | 16' | 4,876.8 mm |
| Dust Collector | DFPRE 4 – 50L | DFPRE 4 – 50L |
| Positioning Weight | 33,000 lb | 14,968.6 kg |
| Power Requirements | 480V - 60 Hz | 480V - 60 Hz |
| Machine Hours | 162 | 162 |
| Control | CNC | CNC |
| Weight | 15,432 lbs. | 15,432 lbs. |
System Components & Equipment:
Operational direction: From left to right
Consumables can be negotiated
-One-way infeed cross transport (CT1):
Mechanical drag-dogs
Length: 16 ft
3 supports
Fully loadable; transports profiles up to 270 lbs/ft
- Two-way outfeed cross transport (CT2):
Double pneumatic-operated drag-dogs
Length: 16 ft
4 supports
Fully loadable; transports profiles up to 270 lbs/ft
- Infeed roller conveyor (RC1):
Width: 41"
Roll diameter: 6-1/4"
Transports profiles up to 41 ft
Minimum profile length: 8-1/4 ft
Max weight: 270 lbs/ft
- Outfeed roller conveyor (RC2):
Width: 41"
Roll diameter: 6-1/4"
Transports profiles up to 41 ft
Minimum profile length: 4-1/2 ft
Max weight: 270 lbs/ft

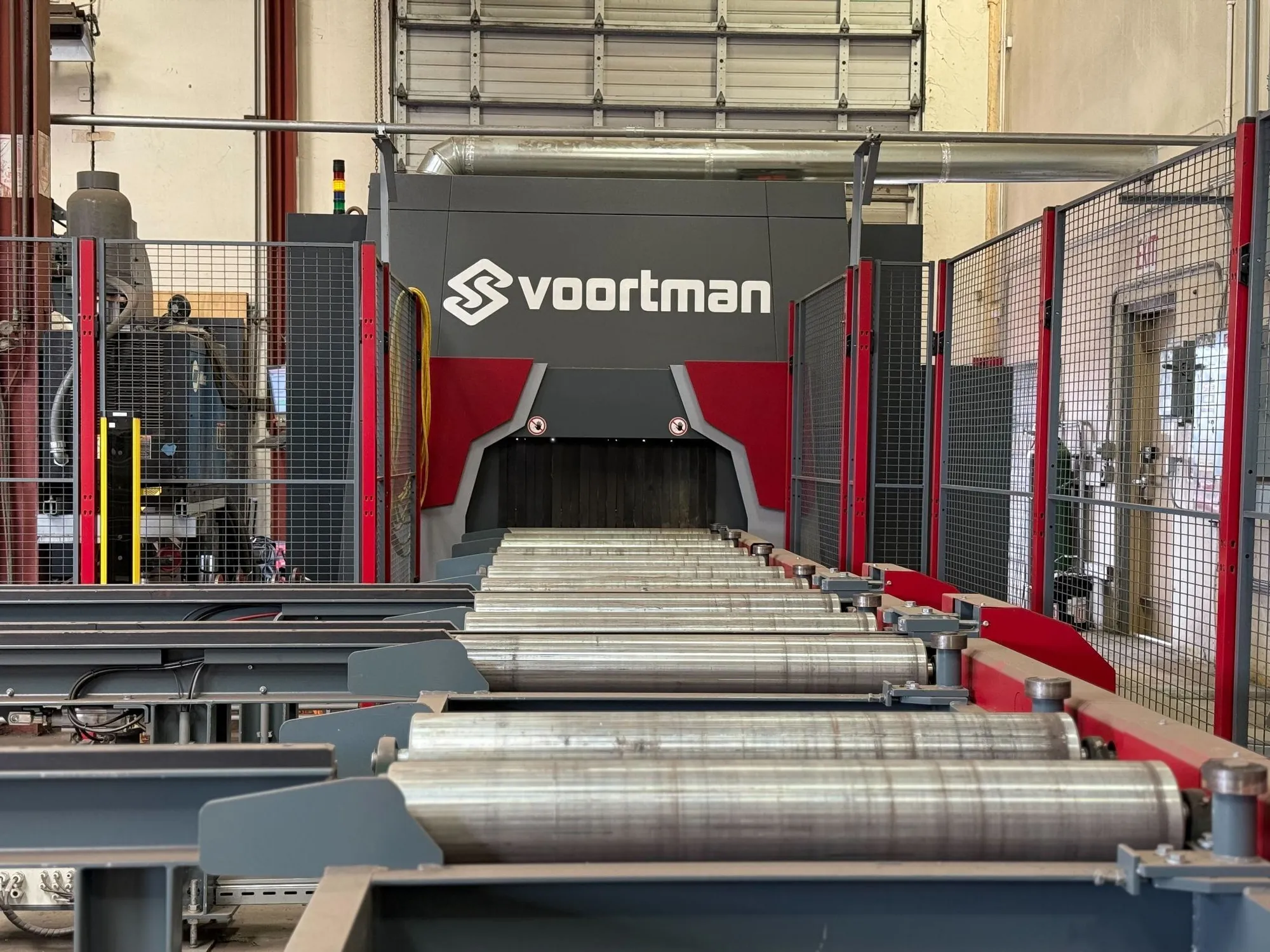

- V807M Coping Machine:
7-axis system
Calibrated Stäubli robot
Air conditioning for switch panel
Length measuring system with feeder rolls
- Plasma Cutting Unit:
Hypertherm XPR300 Core (1 unit)
Fume Extraction Unit: DFPRE 4 – 50L
-Safety Devices:
Interlocking door for machine housing
Safety fencing
Light curtain (machine housing)
Light Curtain – Cross Transport (Indoor) 1 unit (no outdoor solution)
Light Curtain – Cross Transport (Outdoor) - 1 unit
- Includes heating device in columns to prevent lens fogging
Light Curtain – General Outdoor Use - 1 unit
- Includes heating device in columns to prevent lens fogging
