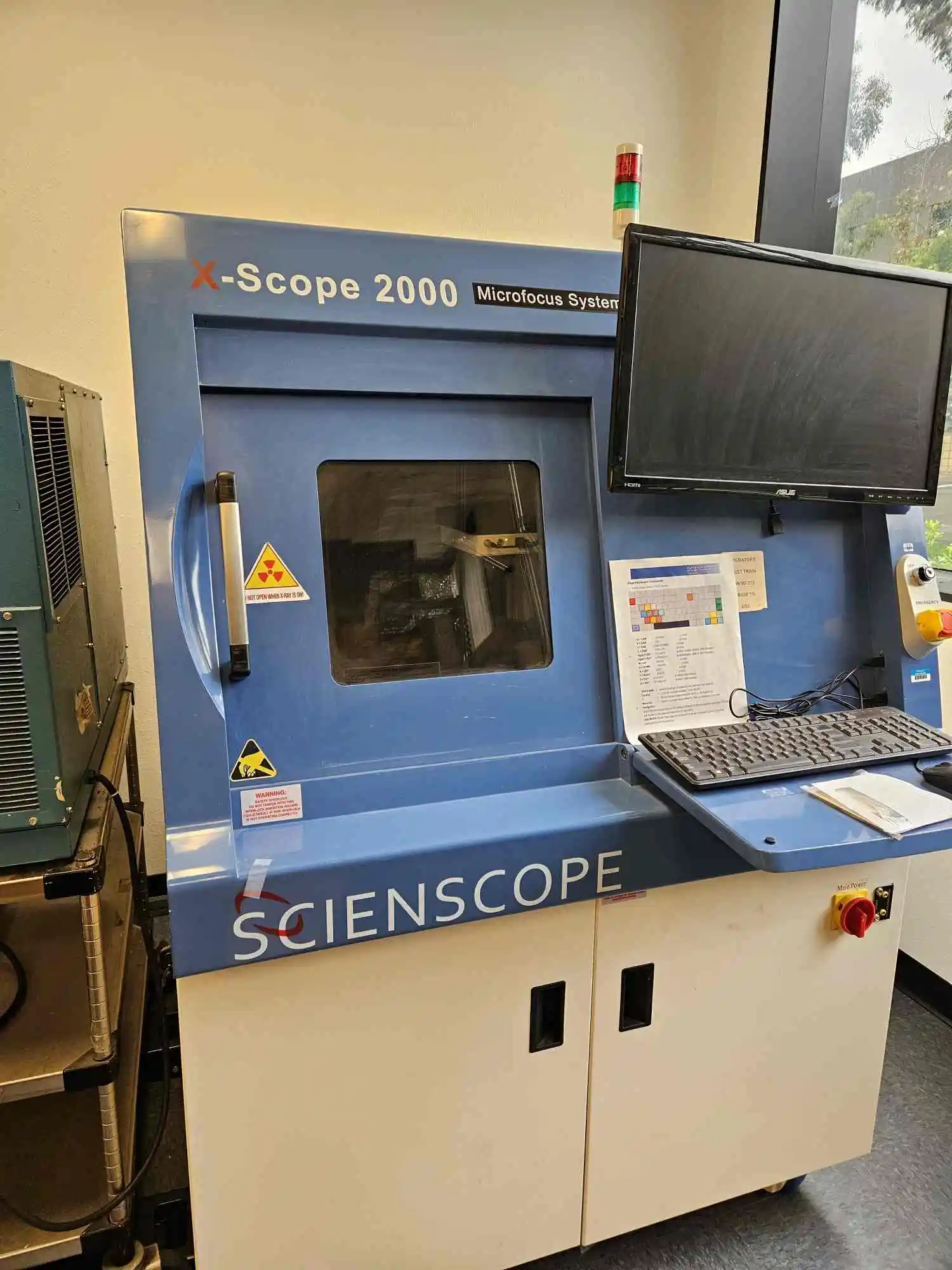

USED 2018 SCIENSCOPE X-SCOPE 2000

Scienscope X-Scope 2000 Microfocus System for X-Ray Inspection
Applications:
– BGA Inspection
– Inspection of over molded electrical connectors
– Encapsulated components
– Aluminum die castings
– Molded plastic components
– Ceramics
– Aerospace components
– Electrical / mechanical components
– Electronic components
– Pharmaceuticals
– Automotive assemblies
– Agriculture
– Counterfeit inspection
– Cell phone battery inspection
X-Ray Tube Specs:
– Tube Style: Closed Type
– Tube Voltage: 90kV / 110kV
– Tube Current: 0.256mA / 0.315mA
– Focal Spot Size: 5 Micron
– Tube Cooling: Forced Air
– Geometric Magnification: 150X
– System Magnification: 750X
Digital Flat Panel X-Ray Detector:
– Gray Scale: 14-bit (16,384 shades of – – grayscale)
– Speed: 30 FPS
– Camera Resolution: 99 m (1.2 MP)
– Detector Size: 4″ x 3″ high resolution
X-Ray Cabinet:
– Dimension (mm): 46.5″ (L) x 53.5″ (W) x 65″ (H)
– Sample Table Size: 22″ (X) x 21″ (Y)
– Sample Table Tilt 70 degree
– Sample Table Movement: X Axisz: 20.5″, Y Axis: 19.7″ Z Axis: 15.8″
– Weight: 1100 kg / 2425 lbs
Automatic switching power supply: 110 – 230 VAC 50/60 Hz
Operating System: Microsoft Windows 7 PRO
