USED 2015 HYUNDAI WIA KIT250
Overview
Description

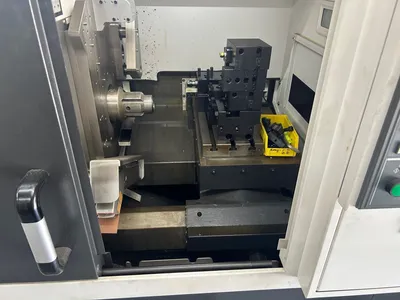

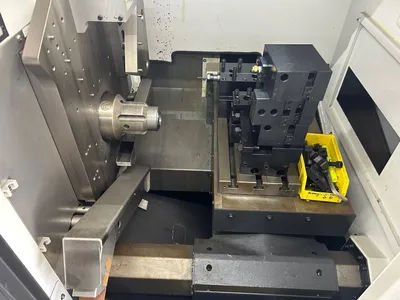

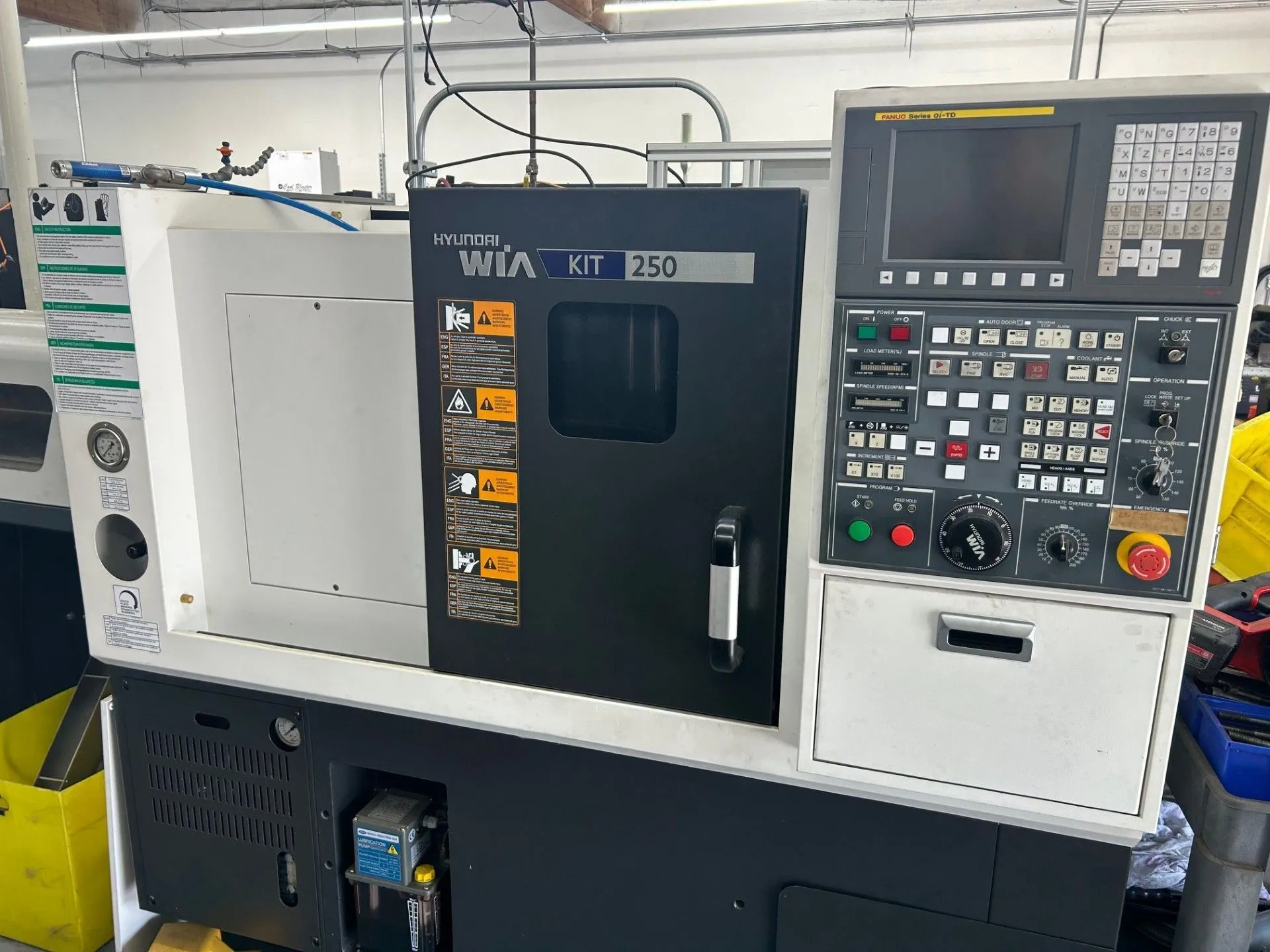

2015 HYUNDAI WIA KIT250 Gang Type CNC Turning Center
Beautiful Machine. Compact and efficient gang tool lathe designed for high-speed, high-precision production work. This 2015 model features a slanted bed design for superior chip evacuation and enhanced accessibility to tooling and chuck.
Specifications
| Swing | 12.6" | 320.04 mm |
|---|---|---|
| Machining Length | 5.9" | 149.86 mm |
| Chuck Size | 5.3" | 134.62 mm |
| Bar Capacity | 1.3" | 33.02 mm |
| Power | 7.4 hp | 5.6 kW |
| Max RPM | 7,000 RPM | 7,000 RPM |
| Turning Dia | 6.3" | 160.02 mm |
| Weight | 4,189 lb | 4,189 lb |
Swing Over the Bed in 12.6″
Max. Turning Dia. in 6.3″
Max. Turning Length in 5.9″
Bar Capacity in 1.3″
SPINDLE Chuck Size in 5.3″
Spindle Bore in 1.65″
Spindle Speed (rpm) r/min 50~7,000
Motor (Max/Cont.) kW(HP) 5.5/3.7 (7.4/5)
Torque (Max/Cont.) ft.lb 35.4/23.9
Spindle Type – BELT
Spindle Nose – FLAT ø110
FEED Travel (X/Z) in 9.8″/7.9″
Rapid Travel (X/Z) in/min 945/1181
Slide Type – LM GUIDE
BLOCK TOOL No. of Tool EA 4
Tool Size OD in 1″
ID in 1″
TANK CAPACITY Coolant Tank ℓ(gel) 95 (25.1)
Lubricating Tank ℓ(gel) 1.8 (0.48)
POWER SUPPLY Electric Power Supply kVA 20
Thickness of Power Cable Sq OVER 16
Voltage V/Hz 220/60 (200/50)
MACHINE Floor Space (L×W) in 66″×66″
in 66.1″×66.8″
Height in 61.8″
Weight kg(lb) 1,900 (4,189)

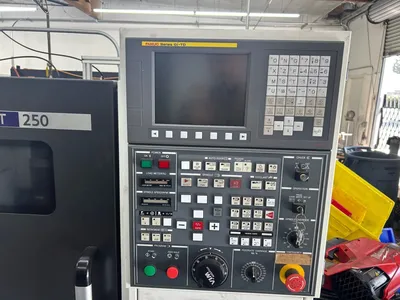

NC Controller HYUNDAI WIA FANUC i Series
Equipped With
Automation/Process Integration, Easy to Operate
Gang Type Lathes
- Variety Accessories, Robot System Application (ex: KN Robot)

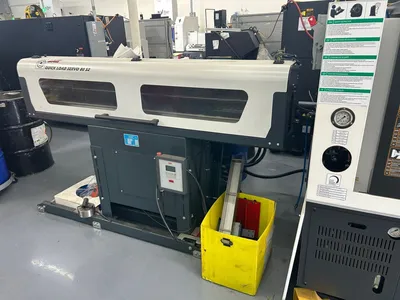

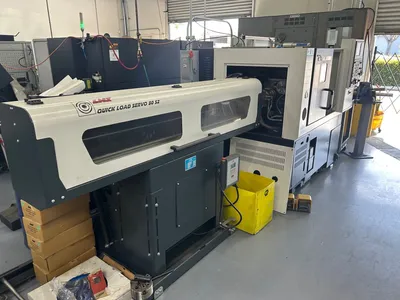

- Variety Optional figures are available, Auto Loader/Bar Feeder/ Parts Catcher, etc.
- Slant bed design gives better access to the tool holder, and chuck. Also, this design is more efficient to remove chips.
- Locate chip box at the front or sides
- For the operator’s convenient, multi-purpose toolbox and used lubrication collect box is equipped
