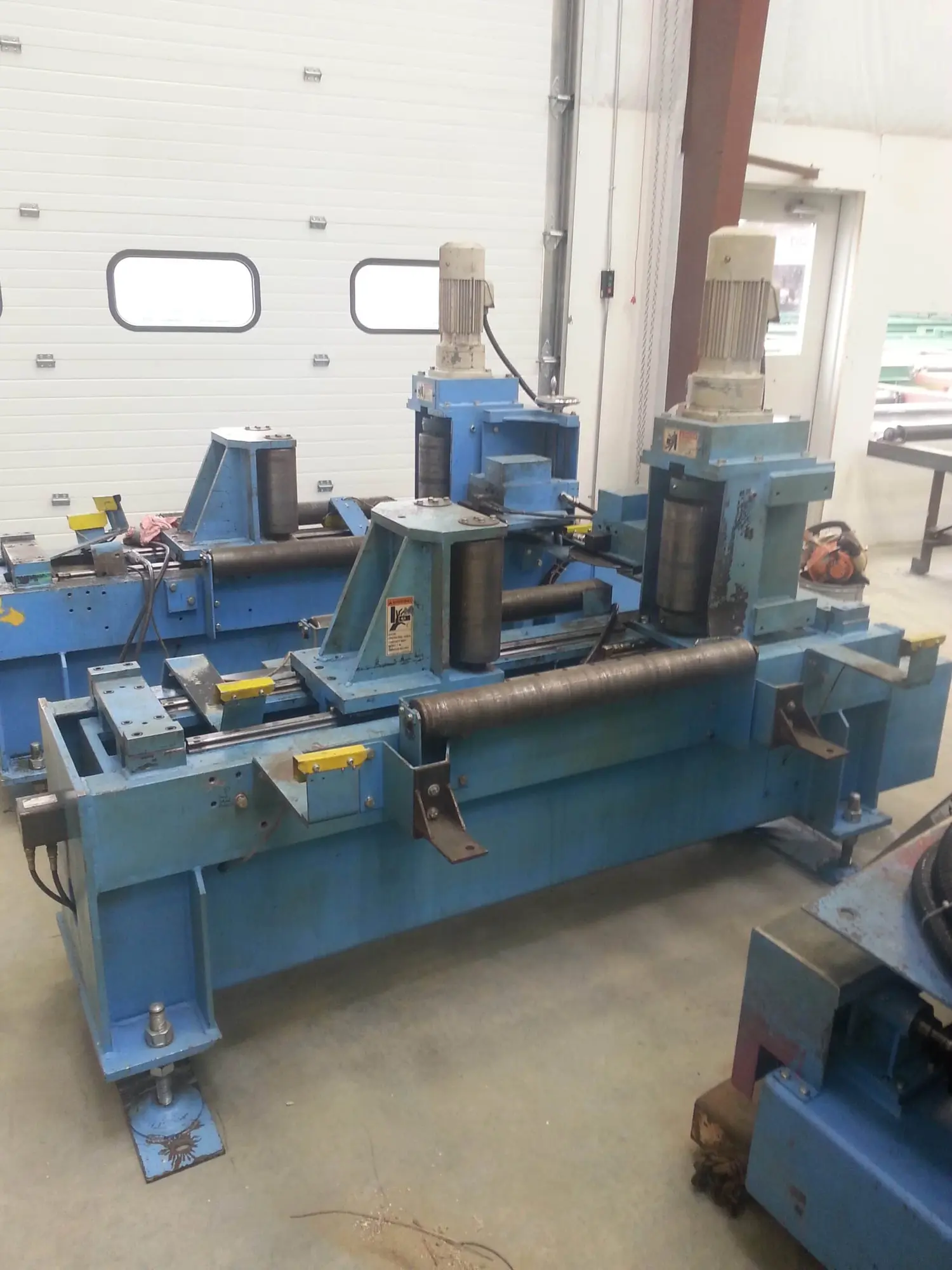

USED 1994 DAITO DNE 700

Motor: AC200V
Drill: 3.7kw x 3, Coolant Pump 0.06kw x 1, Hydraulic Pump 1.5kw x1, Left Assembly 0.4kw x1, Lubricant Pump 0.01kw x1
Electrics: AC100V: DC12V, 24V
Dimensions: W-121.25″ x D- 87.8″ x H- 86.5″
Shipping Weight: 8708 lbs.
H-Beam Capacity: Max 27×12
Max Work Thickness: Flange 2”, Web 2-1/4”
Hole Diameter: Upper .5″ – 1-5/16”, Left/Right .5″ – 1”
Spindle Socket: Upper: 4MT, Left/Right – 3MT
Minimum Feed Length: 59”
Maximum Weight: 6400 lbs.
Equipped With:
Powered Coolant Pump and Lubrication Pump,
3-spindle Manual Style CNC Structural Drill,
No Direct Download Capability
“Feed Master” Power Rollers
Rush 250A Drill Sharpener (available at additional cost)
Included Conex
