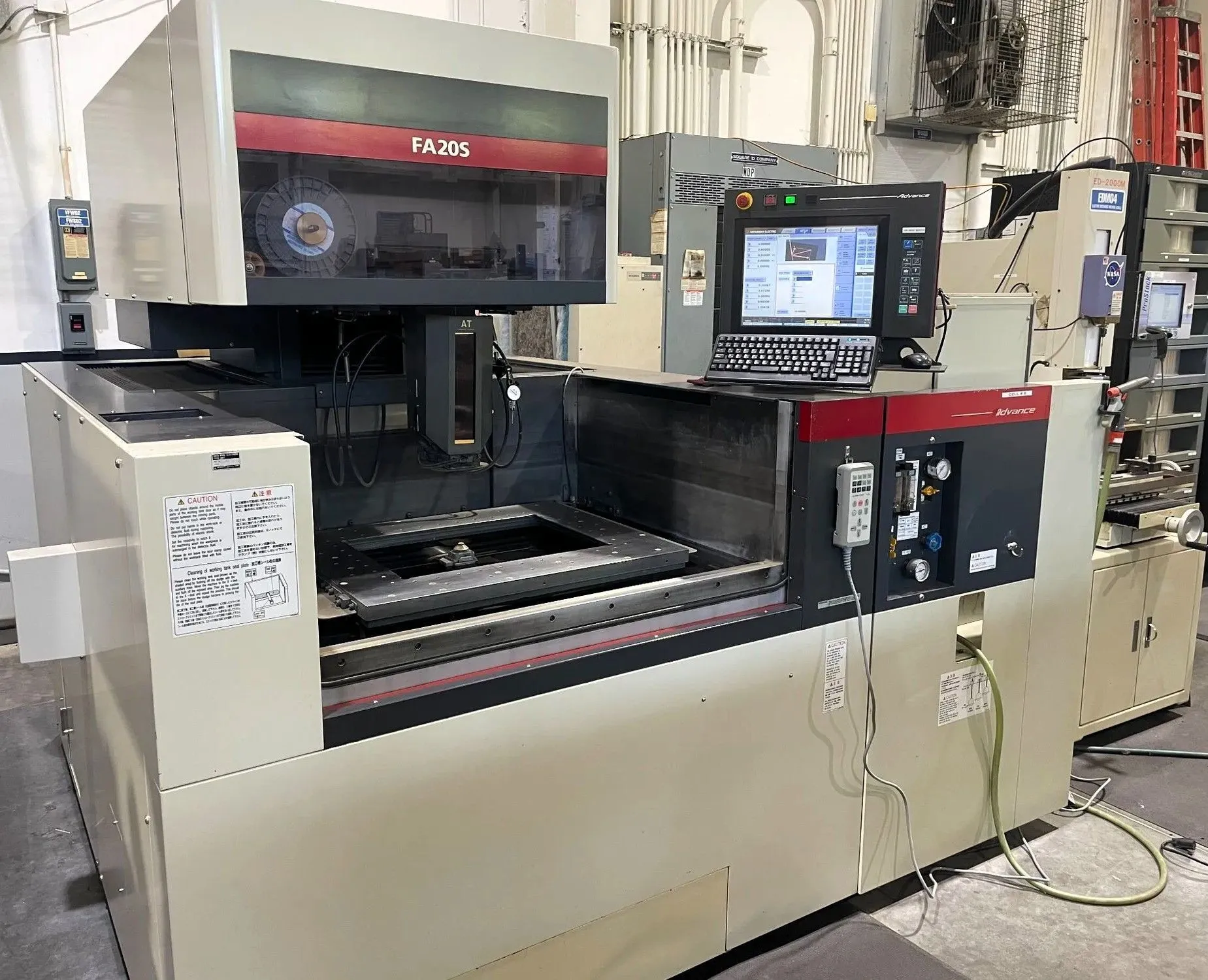

USED 2007 MITSUBISHI FA20S ADVANCE
Overview
Mitsubishi FA20S Advance Wire EDM, New in 2007.
Automatic Wire Threader (Submerged & Breakpoint).
Mitsubishi M750 CNC Control w/Touchscreen.
4-Sided Zeroline Table
On-Board CAM Programming
Automatic Fluid Level Control
Specs
General Specifications:
Machining Stroke ( X x Y x Z ) 13.8" x 19.7" x 11.8"
Machining Stroke ( U x V ) +/- 3.0"
Maximum Workpiece Size 41.3" x 31.5" x 11.6"
Table Size 30.7" x 24.8"
Tank Dimensions 42" x 32" x 12"
Taper Capacity +/-30 Degrees
Taper Angle @ Thickness 15 deg @ 10.5"
Maximum Workpiece Weight 3,300 lbs
Maximum Drive Unit / Resolution 0.00001mm / 2 Millionths
Min Hole Diameter .02"
Wire Diameter Capability .004" - .012"
Wire Guides Included .008"
Max. Wire Spool Size STD 22 lbs
Dielectric Water Capacity 187 Gal
Electrical Requirements 200-220V/3Phz/60Hz
Machine System Footprint Dimensions 102"L x 109"W x 85"H
Machine Tool Dimensions 80" x 104" x 85"H
Machine System Weight 9,516 lbs
Equipped With
* Mitsubishi M750 CNC Control w/Touchscreen
* Submerged Machining Capability
* Automatic Wire Threader (Submerged & Breakpoint)
* Ethernet, USB, RS232
* 4-Sided Zeroline Table
* On-Board CAM Programming
* Automatic Fluid Level Control
* Auto-Lock Vertical Tank Door Mechanism
* Fine-Grain Dianite Casting Material
* Moving Column Design
* DC-Servo (Closed Loop) Torque Control Wire Tensioning System:
* Direct Drive 32mm Ball Screws
* Linear Motion Guide Ways
* New Digital 500 Watt AC Servo Drive System
* All-Axes Absolute Control System
* Linear Glass Scales (X&Y)
* Fine Resolution Encoder Feedback (U&V)
* Standard Long Travel 3-Inch U-V Taper Unit
* 16 Step Programmable Flushing Control
* Remote Hand Pendant
* Wire Chopper
* Filtration System
* Electric Chiller
* All Available System Disks, Manuals and Accessories
