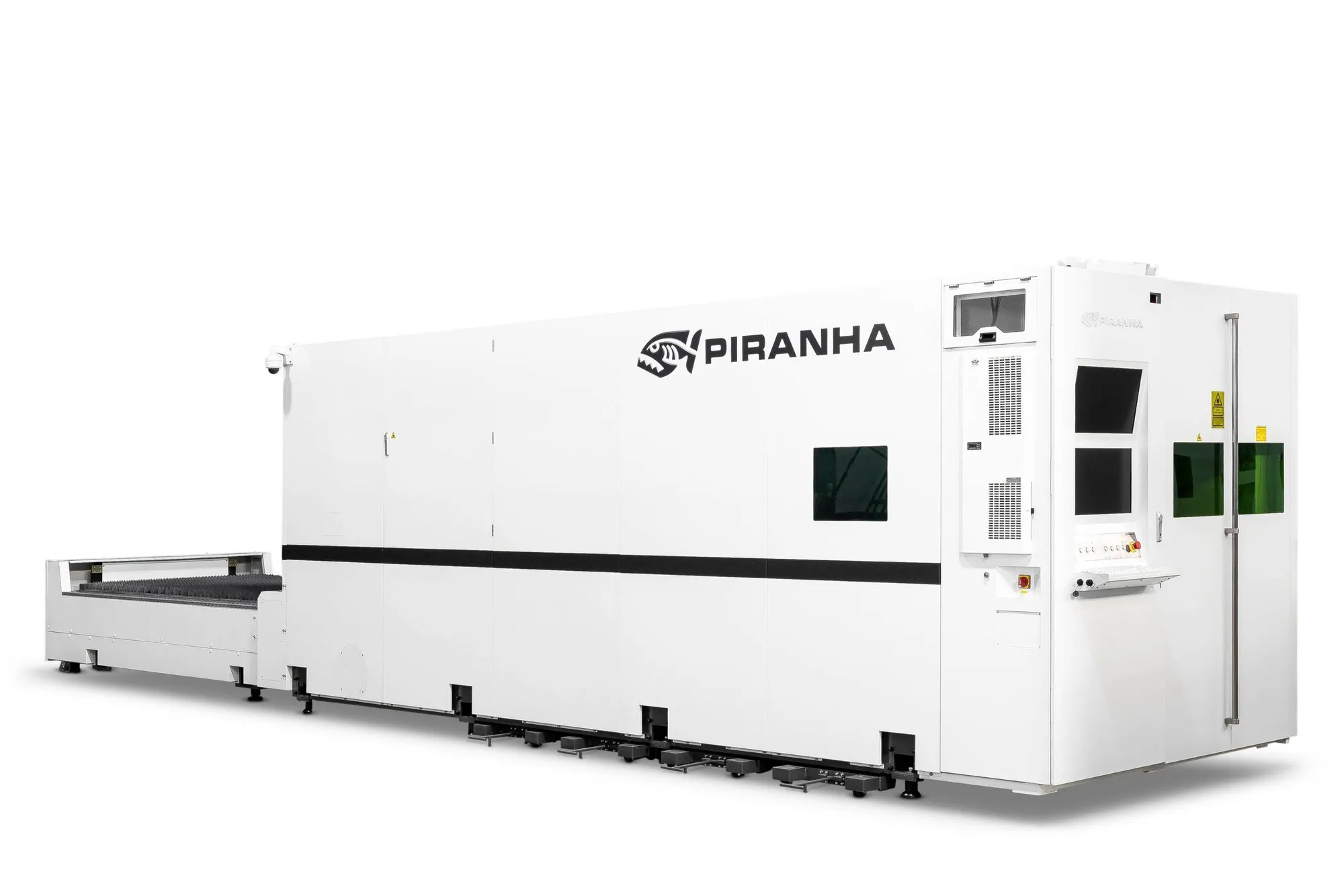

NEW 2025 PIRANHA Flex512 3kW

Take your shop to the next level with the Piranha FLEX Series CNC Fiber Lasers. Designed for speed, accuracy, and uptime, FLEX machines deliver clean cuts shift after shift with fewer breakdowns and lower operating costs. Backed by real support from U.S. experts, they’re built to keep you profitable.
Flex 512 (5’x12′)

F30 (SUPPORTS ONE MACHINE)
• Air Flow Rate ………. 1,800 SCFH
• Delivery Pressure………. 204 PSIG
• Air Compressor………. 20 HP
Components
• Fixed speed rotary screw air compressor
• Compressed air tank
• Compressed air filtration assembly
• Membrane dryer

F50 (SUPPORTS TWO MACHINES)
• Air Flow Rate………. 3,000 SCFH
• Delivery Pressure………. 204 PSIG
• Air Compressor………. 25 HP Ozen Compressor
Components
• Fixed speed rotary screw air compressor
• Compressed air tank
• Compressed air filtration assembly
• Membrane dryer

Nitrogen Generation Systems (Optional)
Nitrogen generator is the separation of air components to capture nitrogen. Nitrogen makes up 78% of the gas in the atmosphere. The rest is 20.9% oxygen, 0.9% argon, 0.03% carbon dioxide and trace gases such as hydrogen, helium, neon, krypton, and xenon. For industrial LASER cutting equipment, PRESSURE SWING ABSORPTION (PSA) is used to provide the high pressures and flow rates required.
NOTE: The maximum flow rate and purity required depend upon the cutting application and edge quality expectations. Other nitrogen generation systems are available to meet different requirements. Please contact Piranha for more information.

Nitrogen Systems: F3000.............. F4000............ F5000
N2 Flow Rate: 3,000 SCFH…..4,000 SCFH…..5,000 SCFH
Purity: 99.50%.......... 99.50%.......... 99.50%
Delivery Pressure: 400 PSIG…….. 400 PSIG…….. 400 PSIG
Air Compressor: 40 HP…………. 50 HP………….. 60 HP
Booster Compressor: 10 HP…………. 20 HP………….. 20 HP
Warranty: 3 years

Components
• Fixed speed rotary screw air compressor
• Refrigerated air dryer
• Condensate oil / water separator
• Compress air tank
• Oil mist eliminator
• Compressed air filtration assembly
• Nitrogen generator with touch screen display
• Nitrogen buffer tank
• Booster compressor
• High pressure tank
• Four stage high pressure filtration assembly
Requirements
Facility
Ambient Conditions
The Piranha FLEX must be in an area which has the following ambient conditions:
1. Ambient temperature between 10° and 40°C [50° and 104°F]
2. Relative Humidity at 95% or less
NOTE: Piranha requires that the LASER and chiller always remain on to avoid costly damage from condensation.

Foundation
No special foundation is needed for the Piranha FLEX LASER. Standard concrete floors of a minimum 150mm (6”) depth are recommended. Flatness should be within 12mm (0.5”). There should be no expansion joints, saw cuts, or cracks in the floor beneath the frame of the LASER.

Electrical Power

ITEM................................................................ VOLTAGE............................... CURRENT
Machine and LASER Resonator 3kW-6kW... 480/3/60 VAC (WYE TYPE).. 75A
Machine and LASER Resonator 12kW
Machine and LASER Resonator 20kW
Dust Collector................................................. 480/3/60 VAC....................... 15A
NOTE: Transformers are available for other voltages. Contact Piranha for more information.

Cutting Gas
GAS PURITY CONSUMPTION
Oxygen
• 99.95% 40 ~ 350 SCFH @ 140 PSI
• 19 ~ 165 L/min @ 9.5 Bar
(Mild Steel Cutting)

Nitrogen
• 99.8% 320 ~ 3000 SCFH @ 300 PSI
• 150 ~ 1,400 L/min@ 20 Bar
(Stainless, Aluminum Cutting)
NOTE: Customer shall install and utilize bulk liquid oxygen and bulk liquid nitrogen storage tanks. Using portable tanks for O2 or N2 will create additional chances of contamination entering the gas supply lines and the cutting head due to frequent tank changes. Contamination will cause cutting head lens failure and thus cause machine down time and additional operating expense.

Add an Automation System
Boost productivity, cut labor costs, and keep your laser running at peak efficiency by adding a Piranha automation system to your order. Whether you need maximum throughput, space-saving versatility, or a simple lift assist, there’s an automation option designed to match your workflow and budget.

Why Add Automation?
• Reduce manual labor and material handling time
• Increase cutting throughput and consistency
• Minimize downtime between jobs
• Future-proof your investment with automation-ready design

Choose Your Automation System:

Below, you’ll find three automation solutions—each engineered to make your Flex Series laser work harder for you from day one.

1. AGT Series
Automation Gantry with Tower
• Full material storage, loading, and unloading in one robust system. Keeps your laser running with minimal labor.
• Stores multiple sheet types for quick changeovers
• Fully automated handling for maximum throughput
2. AG Series
Automation Gantry – Load & Unload
Fast, automated sheet loading and unloading without tower storage. Great for shops with floor-staged material.
• Rapid changeovers to keep cutting improve efficiency
• Smaller footprint with lower investment
3. LA Series
Pivoting Loading Arm
Compact, affordable loading assistance for faster setups and less manual lifting.
• Reduces operator labor and strain
• Fits tight shop layouts
