This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.
Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.
| Max Thickness | 0.1875" | 4.7625 mm |
| Length of Blade | 12' | 3.7 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Weight | 22,600 lbs | 22,600 lbs |

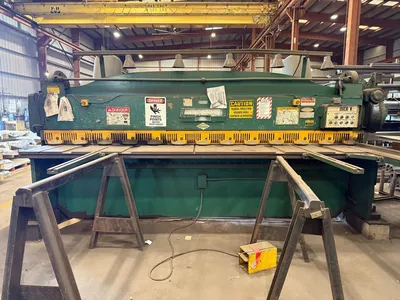

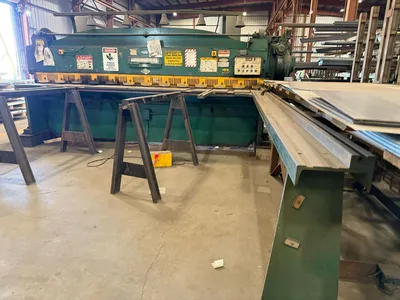

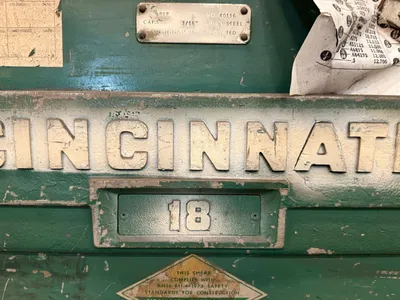

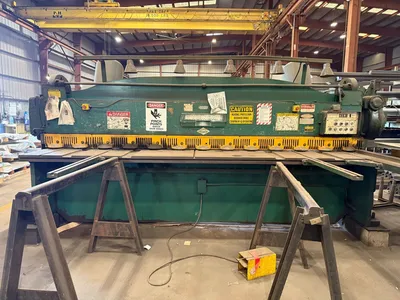

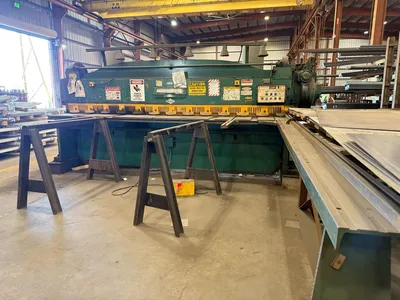

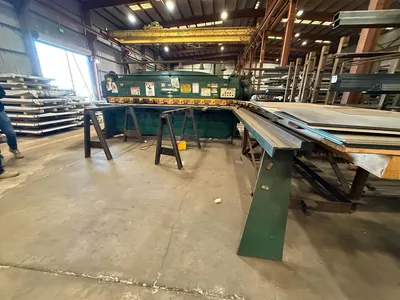

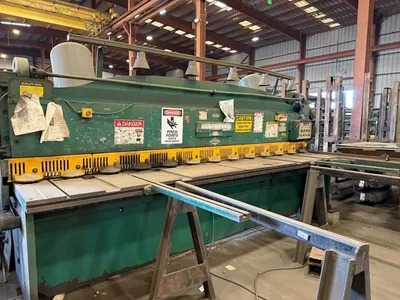

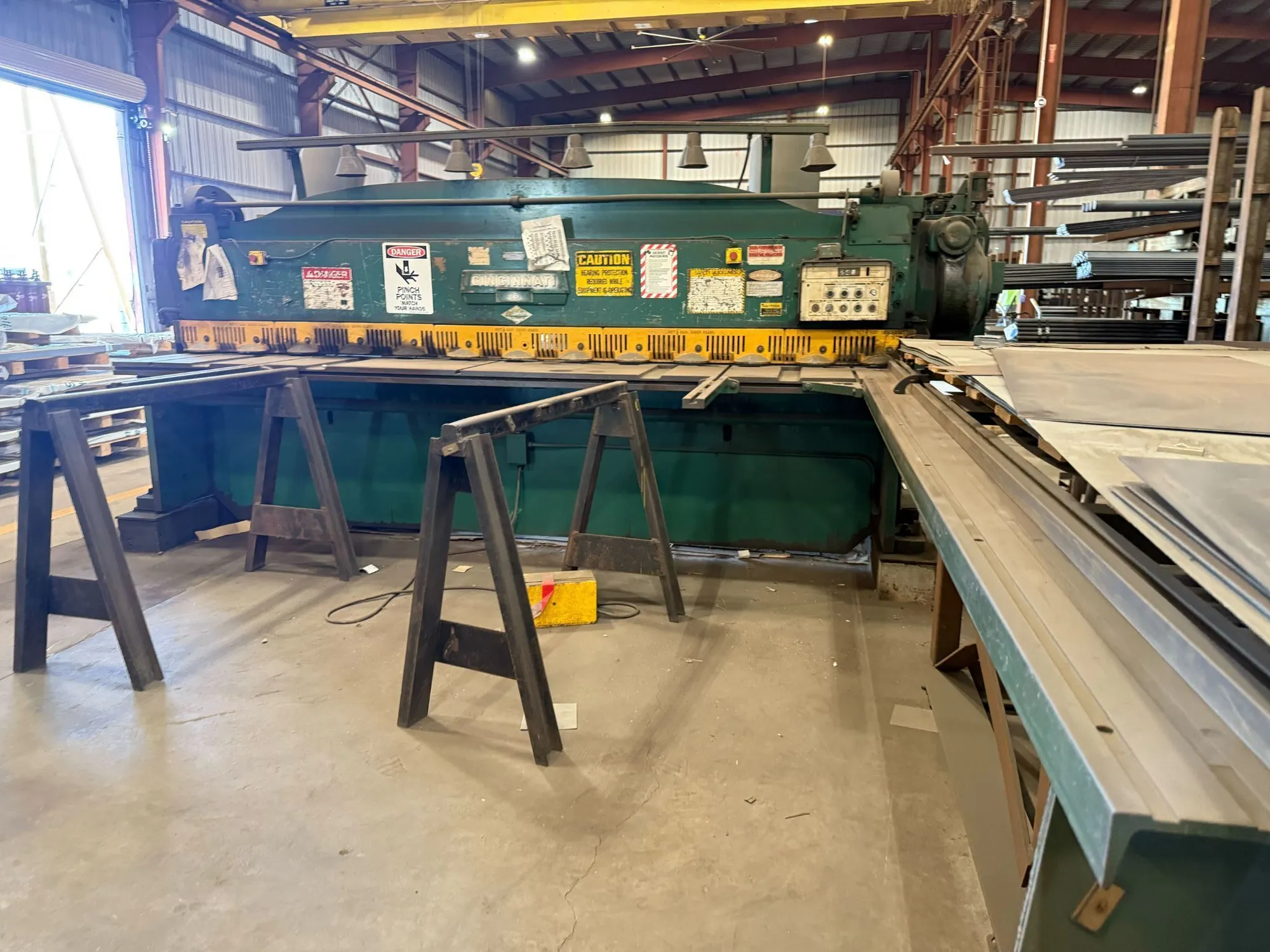

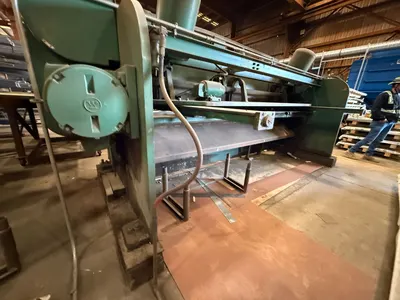

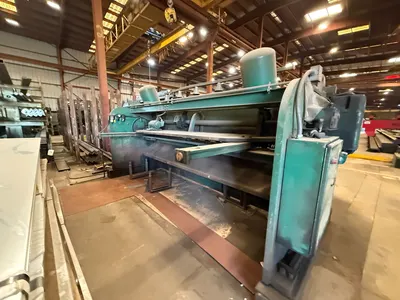

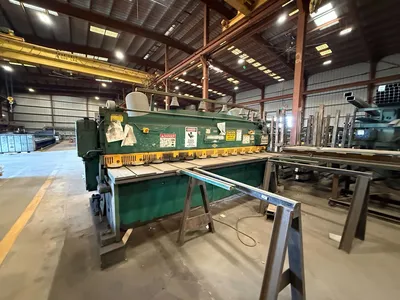

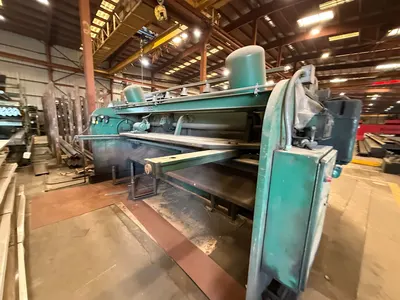

1974 Cincinnati 1812 12' x 3/16" Mechanical Power Squaring Shear
(Mechanical Autoshear Series)

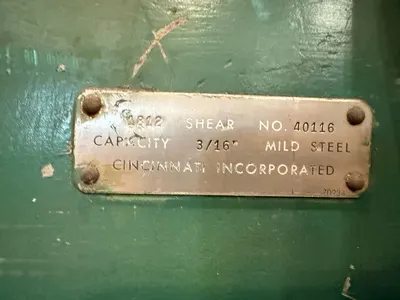

Capacity (Mild Steel): 3/16"
Maximum Cutting Length: 12′ (144")
Strokes per Minute: 60 SPM
Rake Angle / Taper per Foot: 1/4"
Number of Hold‑Downs: 13 hydraulic hold‑downs
Throat Gap: 18"
Back Gauge Range: 0–36"
Knife Size: 4″ × 1″ × 12′4"
Table Height: 32"
Motor: 10 HP
Overall Dimensions: 183" × 80" × 80"
Approx. Weight: 22,600 lbs

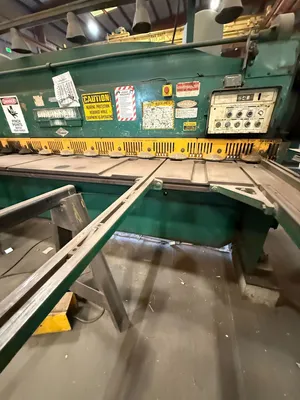

Front‑operated power back gauge with indicator
Foot treadle operation
1 Squaring arm + 3 front support arms
