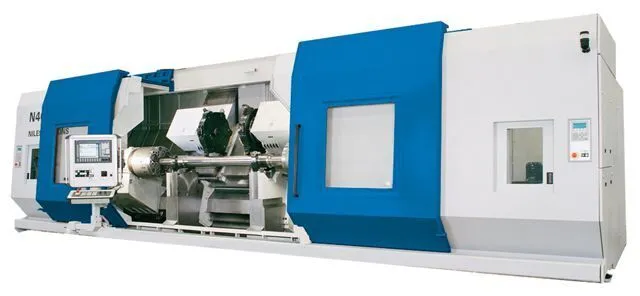

Niles-Simmons CNC- Lathe N30
- Incremental turning lengths up to 4500 mm for flexible shaft machining with one or two tool turrets
- Left and right turning spindle (optional) as powerful motor-
driven spindle or gear spindle with high torque and backlash-free rotary axis
- Two independent NC-steady rests
- Machine can be equipped with lower tool slide
- Process combinations:
Turning / Cam profiling
Turning / Keyway machining
Turning / Drilling / Milling with driven tool spindles

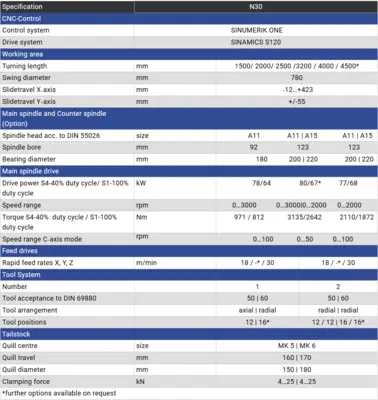

| Swing | 780 mm | 30.709" |
| Power | 77 kW | 103.3 hp |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Control | CNC (Siemens) | CNC (Siemens) |
