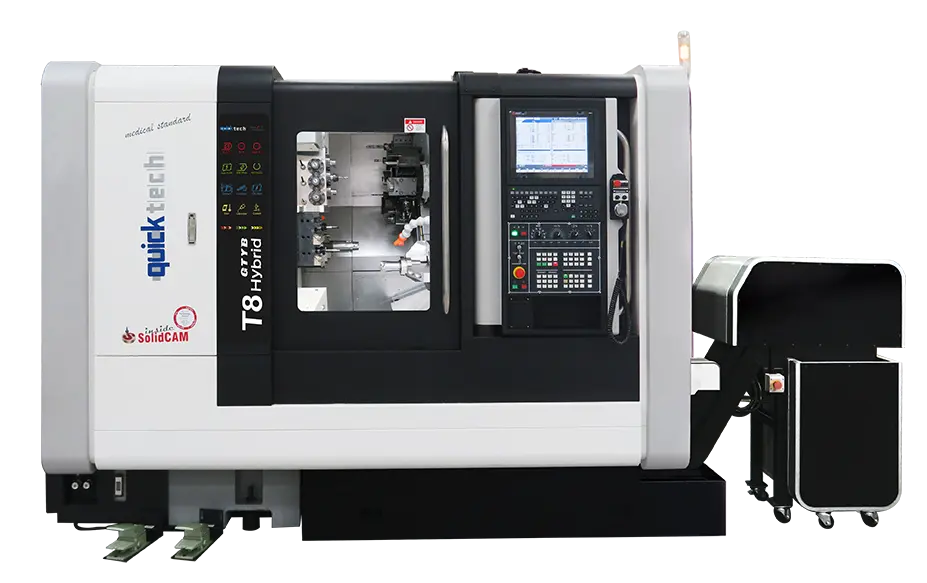

NEW QUICKTECH T8 Hybrid

The Quicktech T8 Hybrid combines the versatility of a 9-axis twin-spindle CNC mill-turn center with both a BMT-55 turret and a 4-axis gang slide featuring a 360° B-axis, enabling complete, complex machining in one compact footprint. Designed for high-precision, high-mix production, the T8 Hybrid is ideal for aerospace, medical, defense, and precision automotive manufacturers that require intricate geometries, ultra-fine surface finishes, and full done-in-one capability.

Competitors include Haas, Doosan, DMG Mori, and Mazak, but Quicktech’s hybrid turret-and-B-axis architecture delivers unmatched flexibility and value in its class.

Key Features

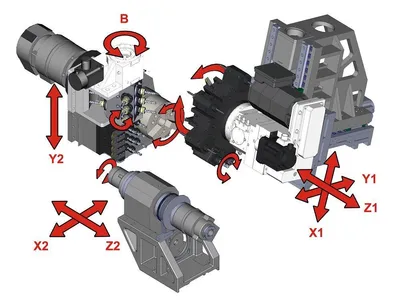

- 9-Axis Machining Platform: Combines dual turning spindles, two live milling spindles, a full 360° B-axis, and a true linear Y-axis for complete simultaneous control.
Dual Spindle System:
- Main Spindle – 15 HP motor, 8″ chuck (65 mm bar capacity) with C-axis braking system.
- Sub Spindle – 7.5 HP integral motor, 42 mm collet capacity, fully synchronized for accurate part handoff.

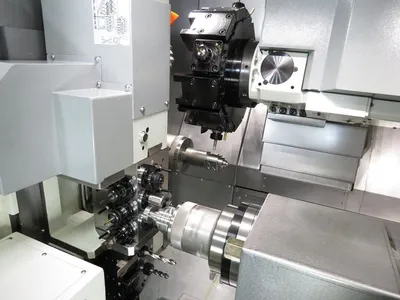

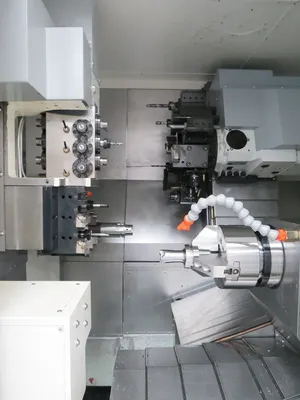

Hybrid Tooling System:
- 12-station BMT-55 live turret (5 HP motor, 80 mm Y-axis travel) with rigid hydraulic clamping and full live capability.
- 4-axis gang slide (X, Y, Z + B-axis) with 12 live tools powered by 2 HP motor for secondary milling and back-working operations.
- Rigid Construction: One-piece Meehanite iron 75° slant bed; 35 mm Hiwin roller guideways; 32 mm double-anchored ballscrews ensure accuracy and thermal stability under load.

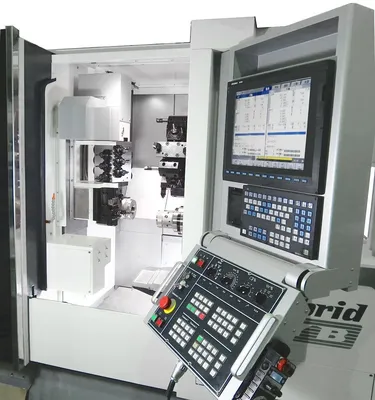

- High-Performance Control: Mitsubishi M830S with 15″ LCD touchscreen; Fanuc OiT-F Plus optional. Includes 3D graphics, Ethernet connectivity, and SSS high-finish control.
- Cycle-Time Efficiency: 1181 ipm rapid traverse rates and simultaneous multi-axis motion reduce setup and cut times.
- Automation-Ready: Standard bar feeder interface, parts catcher, parts conveyor, chip conveyor, and 400 - PSI high-pressure coolant pump included.
- Service & Reliability: 12-month machine warranty and 3-year Mitsubishi CNC warranty supported by
