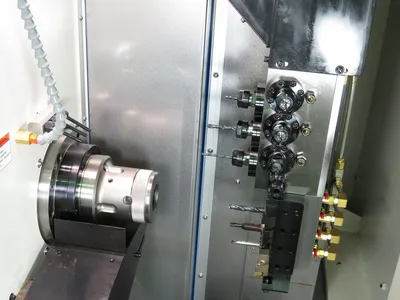

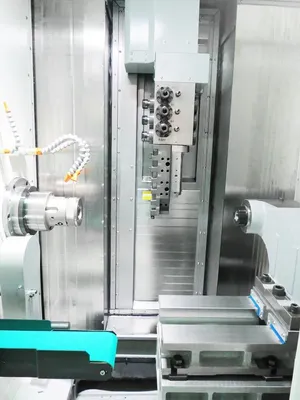

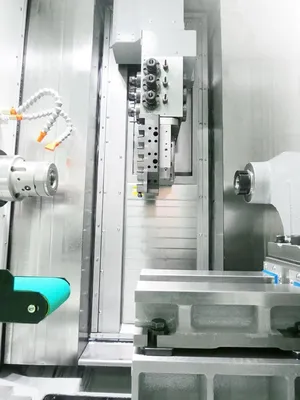

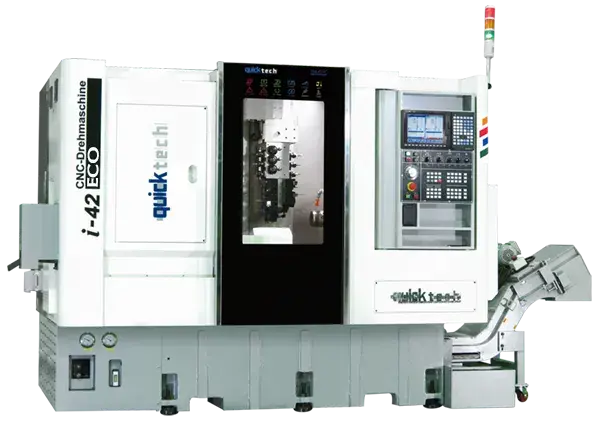

Quicktech ECO Series – 4 & 5 Axis Mill-Turn Centers with Tailstocks
The Quicktech ECO Series — available in i-42 and i-60 models — delivers high-precision, high-production performance in a compact, cost-effective turn-mill center. Cast from Meehanite iron for exceptional rigidity and stability, each model offers complete single-operation part machining including complex milling, off-center drilling, and full contouring. With 4 axes standard and an optional 5th-axis B-head, the ECO Series provides unmatched machining flexibility for medical, automotive, aerospace, and general precision component manufacturers seeking to reduce cycle times and increase throughput.
Competitors include Miyano, Ganesh, and Doosan, but few can match the ECO’s blend of affordability, rigidity, and multitasking capability.
Key Features
- 4-Axis / Optional 5-Axis Capability
- High-Torque Main Spindle
- Gang-Type Tooling System
- Heavy-Duty Construction
- Live Tooling System
- Tailstock with Programmable Quill
- Reliable CNC Control Options
- Integrated Productivity Features
| Machining Length | 9.8" | 248.92 mm |
| # Axis | 4 | 4 |
| Bar Capacity | 2.36" | 59.944 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
