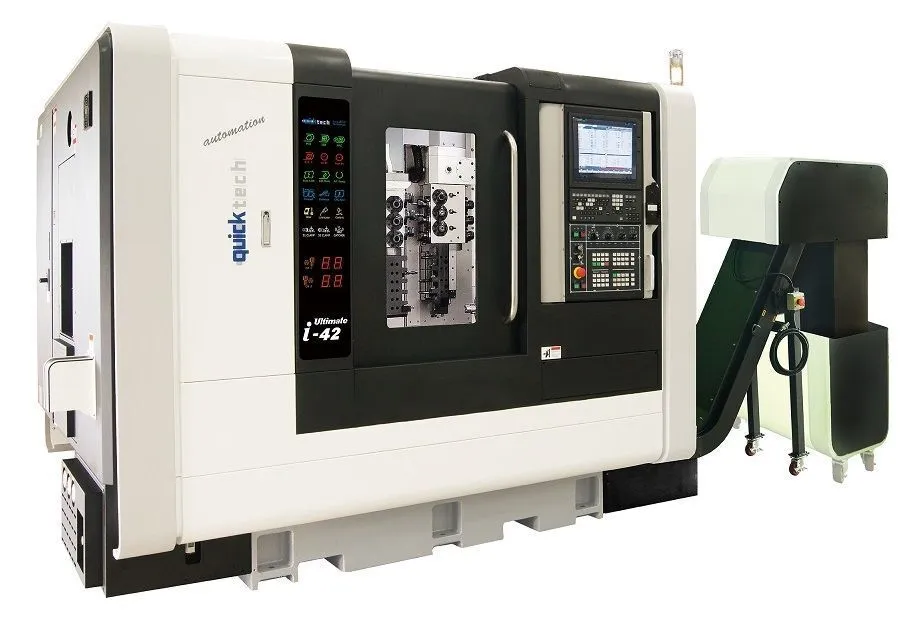

The QuickTECH i-Ultimate Series 10-axis mill-turn centers represent the pinnacle of multi-tasking CNC technology. Featuring dual B-axes and twin opposing spindles, these advanced machines deliver complete “done-in-one” part production with minimal operator intervention. Designed for manufacturers demanding maximum flexibility, speed, and accuracy, the i-Ultimate Series performs simultaneous 5-axis milling and turning operations on both spindles within a compact footprint.
Engineered for aerospace, medical, automotive, and precision component manufacturers, the i-Ultimate Series excels at machining parts with compound angles, intersecting geometries, and intricate features — all completed in a single setup. Its dual B-axes and twin spindles make it ideal for parts that traditionally require multiple operations across several machines, such as turbine components, implants, and housings demanding tight tolerances and ultra-fine surface finishes.
Competing directly with multi-axis solutions from Haas, Doosan, DMG Mori, and Mazak, the QuickTECH i-Ultimate Series delivers unmatched performance and versatility at a significantly lower cost of ownership.
Key Features
- Optional Automation Packages
-10-Axis Twin-Spindle Mill-Turn Configuration

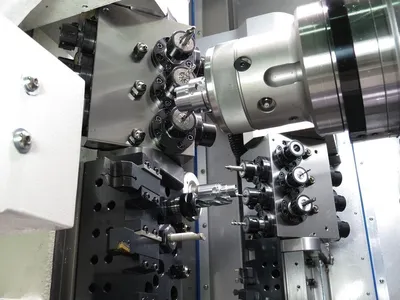

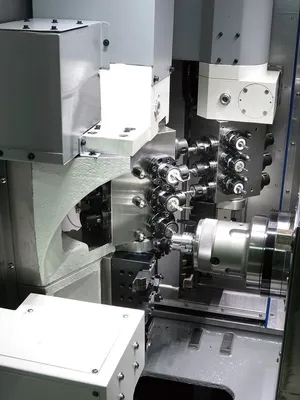

- Dual B-Axes
- 56-Tool Capacity
- High-Rigidity Gantry Structure
- Precision Linear Guideways & Dual Ball Screws
- Advanced Coolant & Chip Evacuation System
- Compact Fully Enclosed Design
| Machining Length | 9.8" | 248.92 mm |
| Bar Capacity | 1.65" | 41.91 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'Yes' | 'Yes' |
| Control | CNC (Mitsubishi) | CNC (Mitsubishi) |
