USED AMERICAN HOLE WIZARD Radial Drills

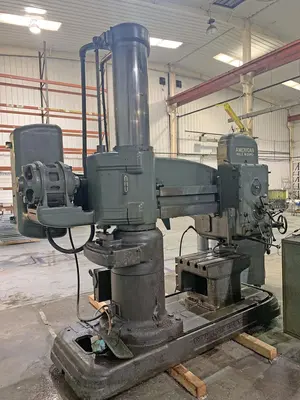

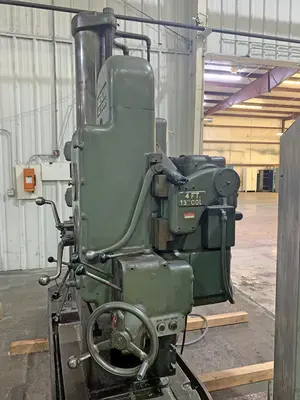

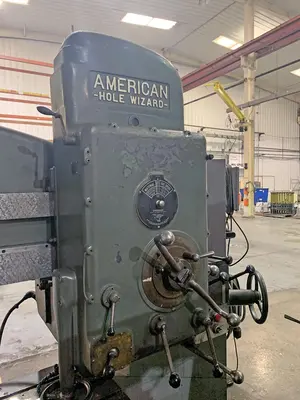

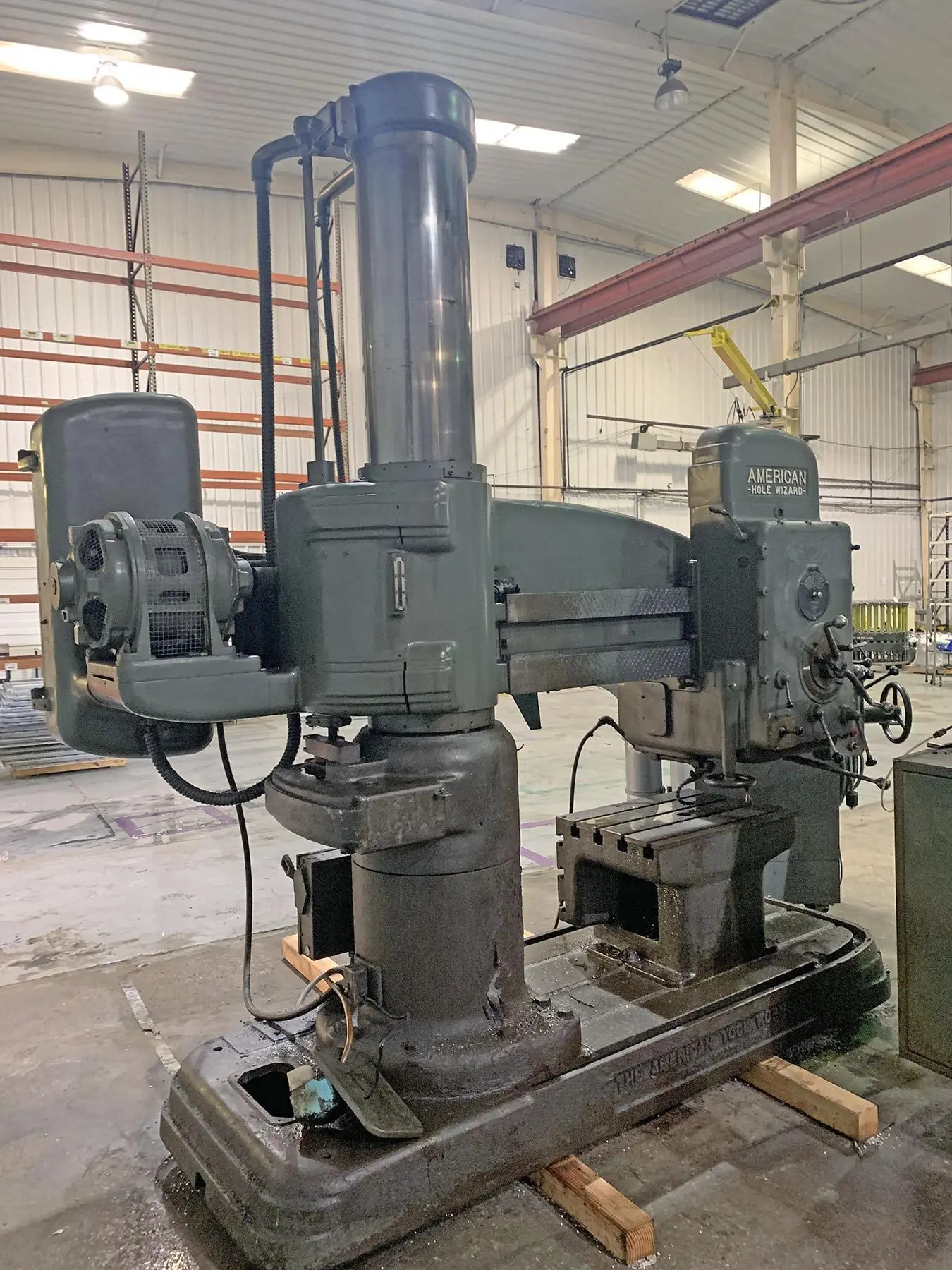

USED, 4' X 13" AMERICAN HOLE WIZARD RADIAL ARM DRILL

ARM LENGTH: 4'
COLUMN DIAMETER: 13"
DRILLS TO CENTER OF CURCLE: 96"
TRAVEL OF HEAD ON ARM" 34.75"
TRAVEL OF ARM ON COLUMN: 36"
SPINDLE TO BASE: 6" - 60"

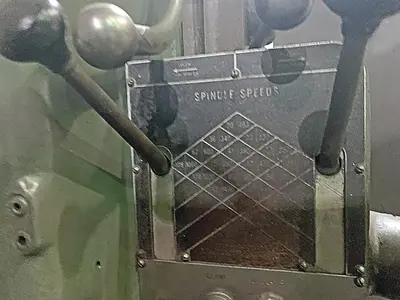

SPINDLE SPEEDS: (16) 25 - 2000 RPM
SPINDLE MOTOR: 10 HP
SPINDLE TRAVEL: 18"
SPINDLE TAPER: 5 MT

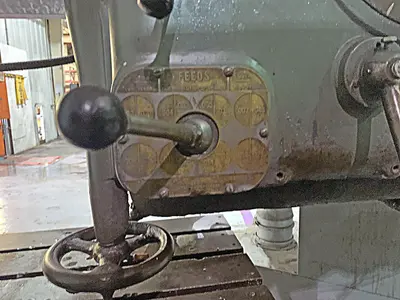

SPINDLE FEEDS: (16) 0.003 - 0.125 IPR
TAP LEADS: 8, 11-1/2, 14, 18

BOX TABLE
POWER ELEVATION
POWER HEAD TRAVERSE
POWER CLAMPING
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
