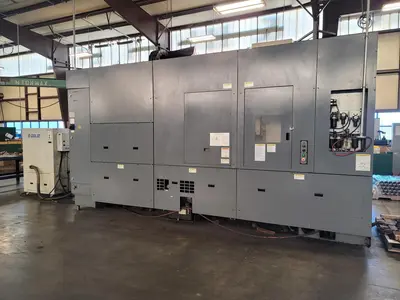

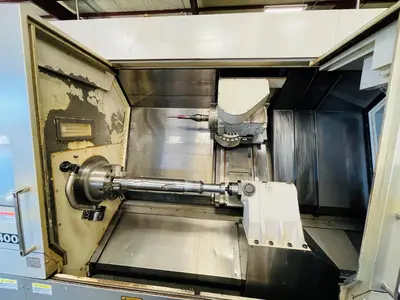

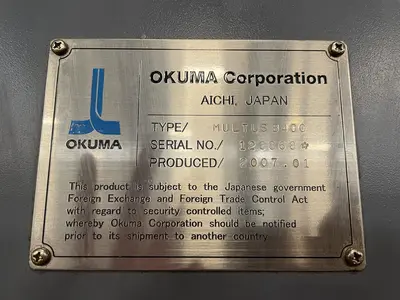

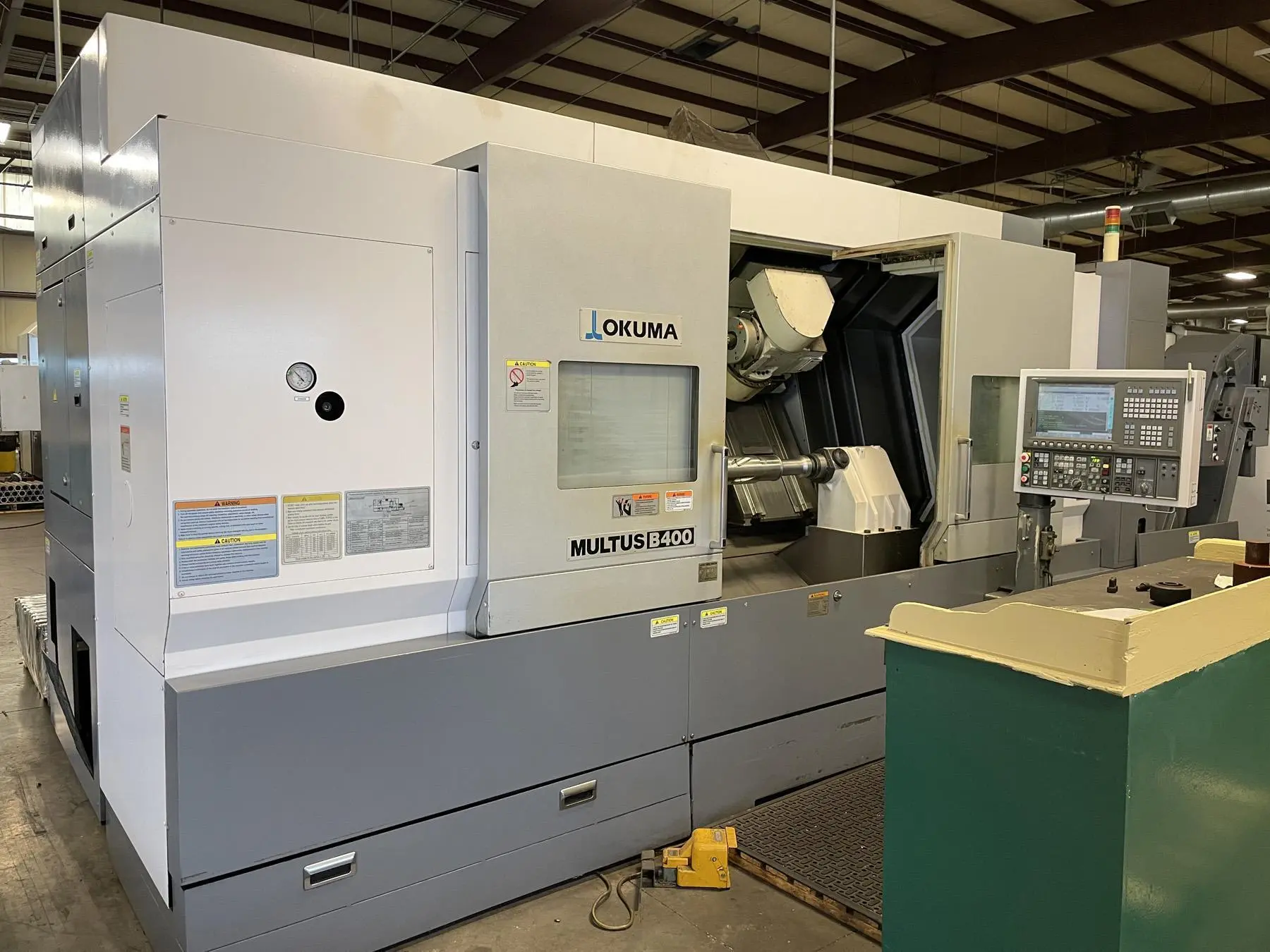

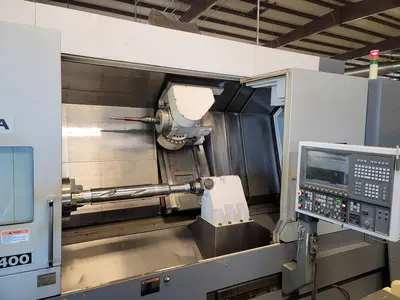

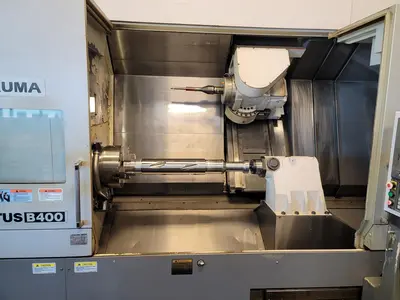

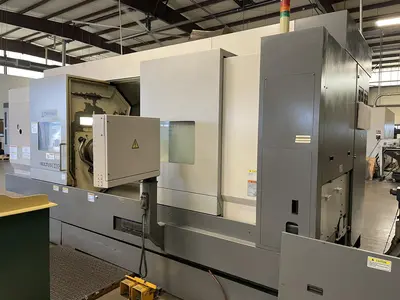

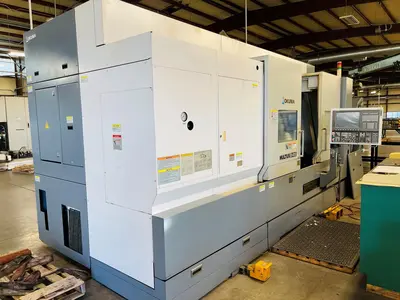

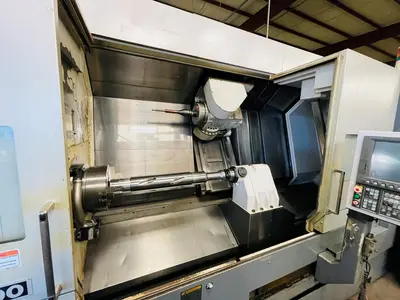

USED 2007 OKUMA MULTUS B400

USED, OKUMA MULTUS B400 5 AXIS CNC TURNING CENTER

SWING OVER BED: 27.95"
SWING OVER SADDLE: 27.95"
DISTANCE BETWEEN CENTERS: 59.06"
MAXIMUM CUTTING DIAMETER: 27.9"
X AXIS TRAVEL: 27.17"
Y AXIS TRAVEL: 9.06" (+4.53" TO -4.53")
Z AXIS TRAVEL: 60.83"
C AXIS TRAVEL: 360 DEG. (MIN. CONTROL ANGLE 0.001 DEG.)
B AXIS INDEXING ANGLE: 225 DEG. (-30 DEG. TO 195 DEG., MIN. CONTROL ANGLE 0.001 DEG.)
MAIN SPINDLE SPEEDS: 38 - 3600 RPM
MAIN SPINDLE MOTOR: 30/20 HP
SPINDLE BORE: 3.15"
SPINDLE NOSE: A2-8
MILLING SPINDLE SPEED: 10,000 RPM
MILLING SPINDLE MOTOR: 27 HP
MILLING SPINDLE TAPER: CAPTO C6

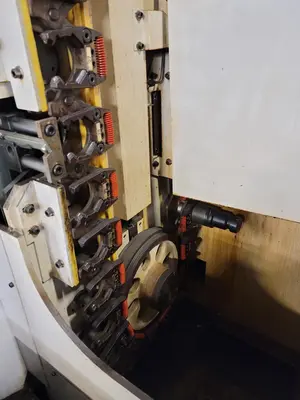

MILLING SPINDLE ATC CAPACITY: 40 TOOLS

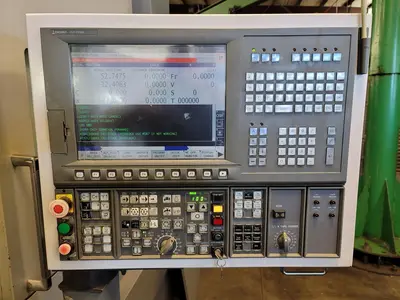

OSP-P200L CNC CONTROL

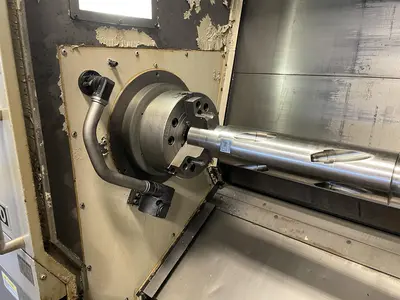

12" HYDRAUILC CHUCK
TOOL PRESETTER

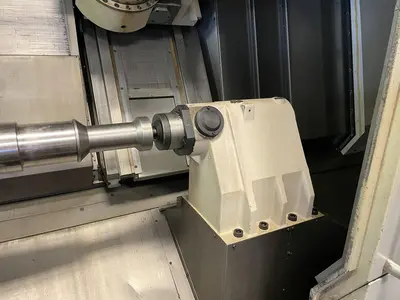

HYDRAULIC TAILSTOCK

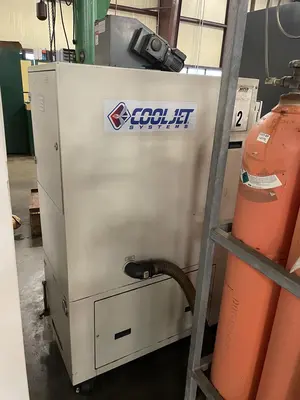

HIGH PRESSURE COOLANT

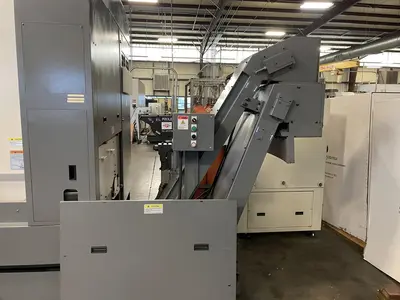

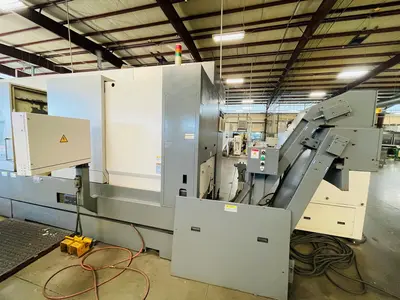

CHIP CONVEYOR
LOW HOURS ON MACHINE
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
