Capacity: ” Ø
Maximum Assembled Product Size: 37.5” x 98”
Minimum Assembled Product Size: 11.375” (vertical) x 9.75” (horizontal) with spacer
blocks 7.5” (vertical) x 5.5” (horizontal)
Maximum Framing Width: 4”
Minimum Framing Width: 1.5”

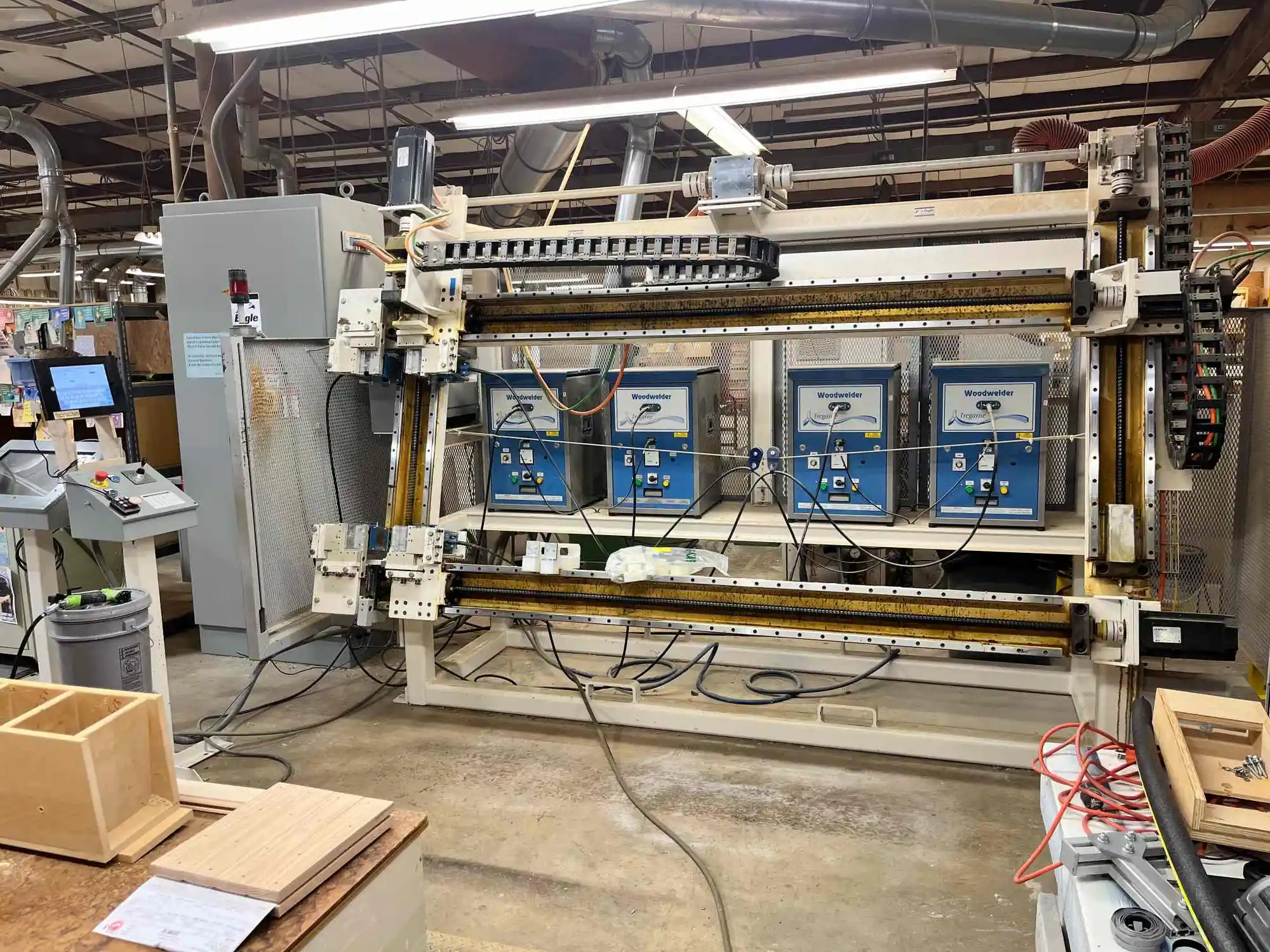

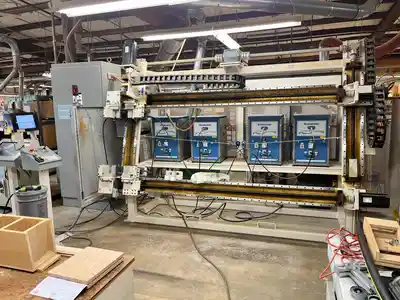

Tubular Steel Frame
THK Linear Bearings and Rails
(1) Allen Bradley Compact Logix PAC
(4) Allen Bradley Kinetix Servos and Drives
a. (1) Vertical Beam
b. (1) Horizontal Beam

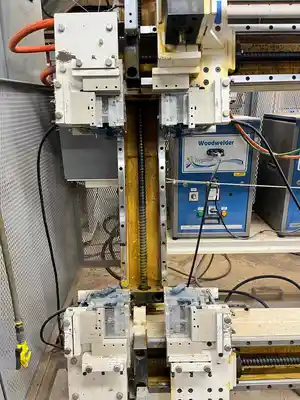

(2) On the Upper Right Hand Clamp to ensure that uniform pressure can be applied
regardless of the cut accuracy of the frame parts
(1) Hoffman Upright Enclosure
Allen Bradley Control Components (Push Buttons, Relays, Power Supplies, Buzzer, etc.)
(1) Hoffman Air Conditioner for Electrical Enclosure
EMS Press Control/Server Communication Software Package

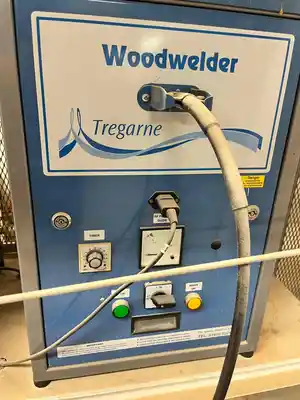

(4) Tregarne Woodwelder with Production Gun
