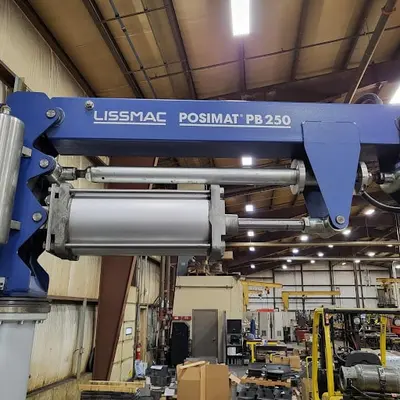

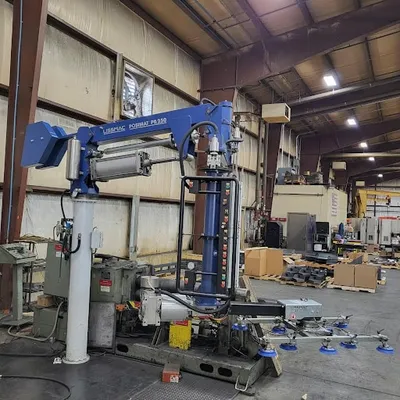

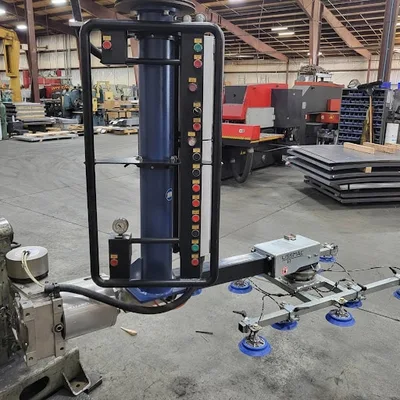

USED 1900 LISSMAC PB 250

Load-Carrying Capacity Without Load Suspension Devices, Without Counterweight: 552 Lbs.
Load-Carrying Capacity Without Load Suspension Devices, With Counterweight: 827 Lbs.
Hoisting Height: 65"
Working Area, Standard: 223"
Working Area Up To Max.: 252"
Standard Jib Length: 112"
Jib Length Up To Max.: 126"
Hoisting Arm Length: 72"
Design Height Of Machine Without Pillar: 36"
Design Height Ok Hoisting Device On Pillar: 150"
Pillar Height: 79"
Range Of Rotation, Main Axis, Hoisting Arm:
Continuous
Pivot Area Axis Folding Arm: 300 °
Range Of Rotation, Pivo Joint: 320 °
Jib Counterweight: 38"
Max. Torque, Axis: 24.892 Ft Lb
Max. Torque, Axis: 7.375 Ft Lb
Max. Torque, Axis: 1.475 Ft Lb
Drive: Pneumatic
Hoisting Speed: 0-20 M/Min.
Min. Operating Pressure: 6 Bar
Air Consumption / Max. Stroke: 138 Nl
Noise Level: 78 Db (A)
Ambient Temperature: -15 / + 70 °c
Dead Weight Without Counterweight And Pillar: 500 Kg
Counterweight: 772 Lbs
