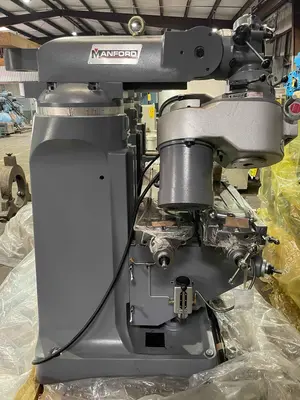

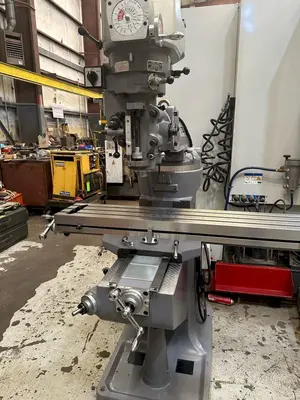

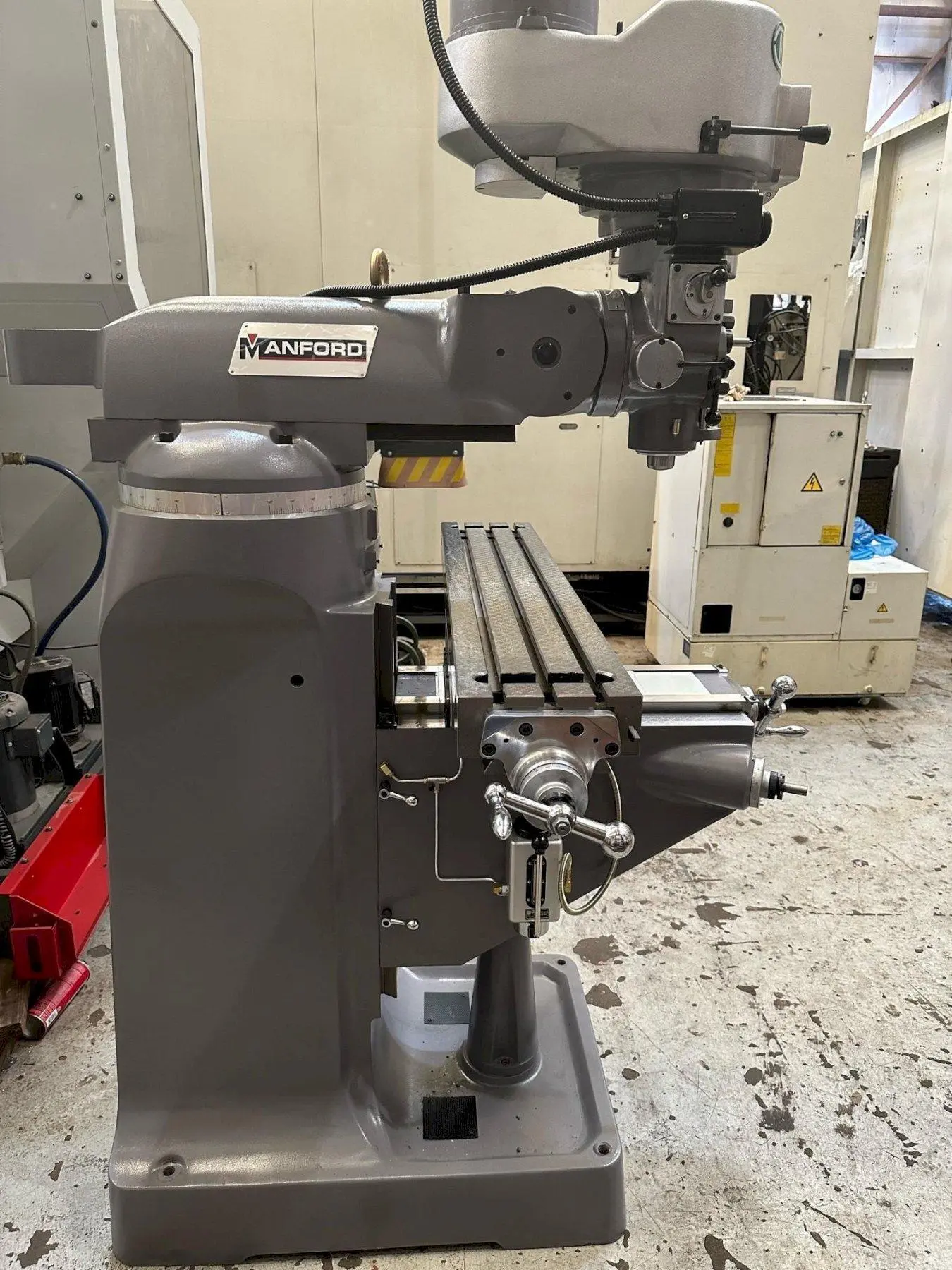

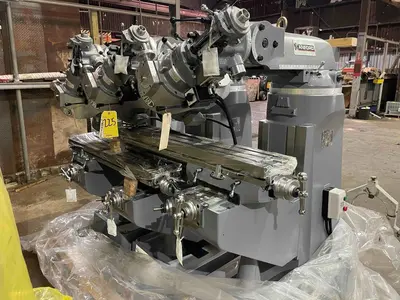

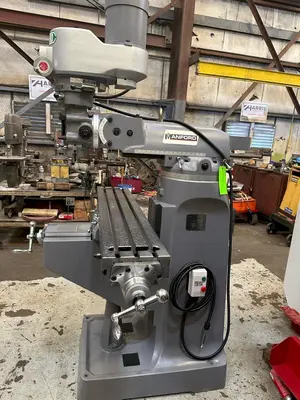

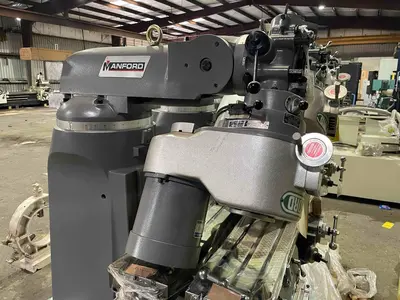

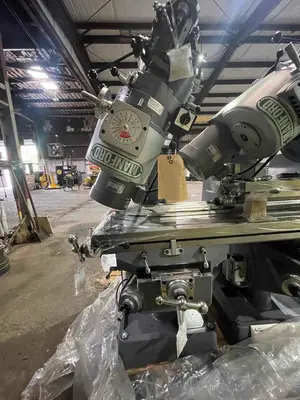

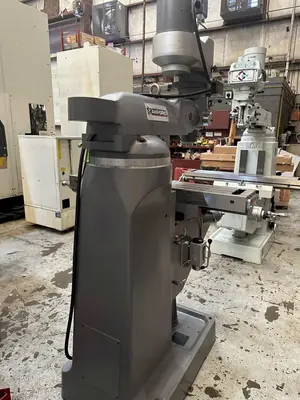

New / Un-used 2024 MANFORD L-2V manual mill offers a 9" x 49" table, 3 hp motor, and speeds up to 4500 RPM. Travel: Long 37", Vert 16", Cross 12". Equipped with variable speed Bridgeport-style head and chrome ways. Approx. weight 2200 lbs.
| Table Size-L | 49" | 1,244.6 mm |
| Table Size-W | 9" | 228.6 mm |
| Motor | 3 hp | 2.2 kW |
| Travel-Long | 37" | 939.8 mm |
| Travel-Vert | 16" | 406.4 mm |
| RPM | 4,500 RPM | 4,500 RPM |
| Motor | 3 hp | 2.2 kW |
| Quill Travel | 5 in | |
| Quill Diameter | 3.375 in | |
| Workhead Swivel | 360 | 360 |
| Dimensions | 59 x 63-5/8 x 84 High | 59 x 63-5/8 x 84 High |
| Weight | 2200 | 2200 |
Table Size: 9" x 49"
T-Slots: (3) 5/8"
Table Longitudinal Travel: 37"
Table Cross Travel: 12"
Knee Vertical Travel: 16"
Ram Travel: 15"
Quill Travel: 5"
Spindle Nose to Table: 1.3" - 17.3"
Turret Swivel: 360 Deg.
Head Swivel (L-R): +/- 45 Deg.
Head Tilt (Up-Down): +/- 45 Deg.
Spindle to Column: 6" - 21.4"
Spindle Speeds: 70 - 4500 RPM
Spindle Motor: 3 HP
Spindle Taper: R8
Quill Feeds: (3) 0.0015, 0.003, 0.006 IPR
Quill Diameter: 3-3/8"
OAD: 59" x 63-5/8" x 84" High
Weight (Approximate): 2200 Lbs.

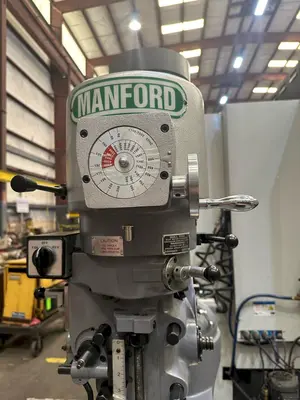

VARIABLE SPEED BRIDGEPORT STYLE HEAD
CHROME WAYS
ONCE SHOT LUBE
Note: All Specifications Subject to Verification
