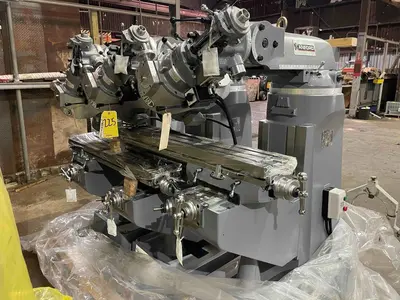

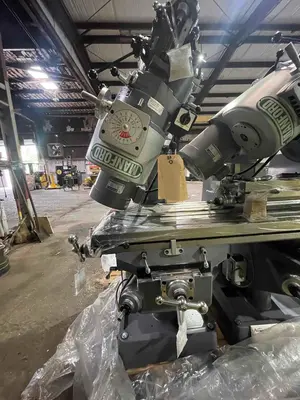

NEW 2024 MANFORD L-2V
Overview

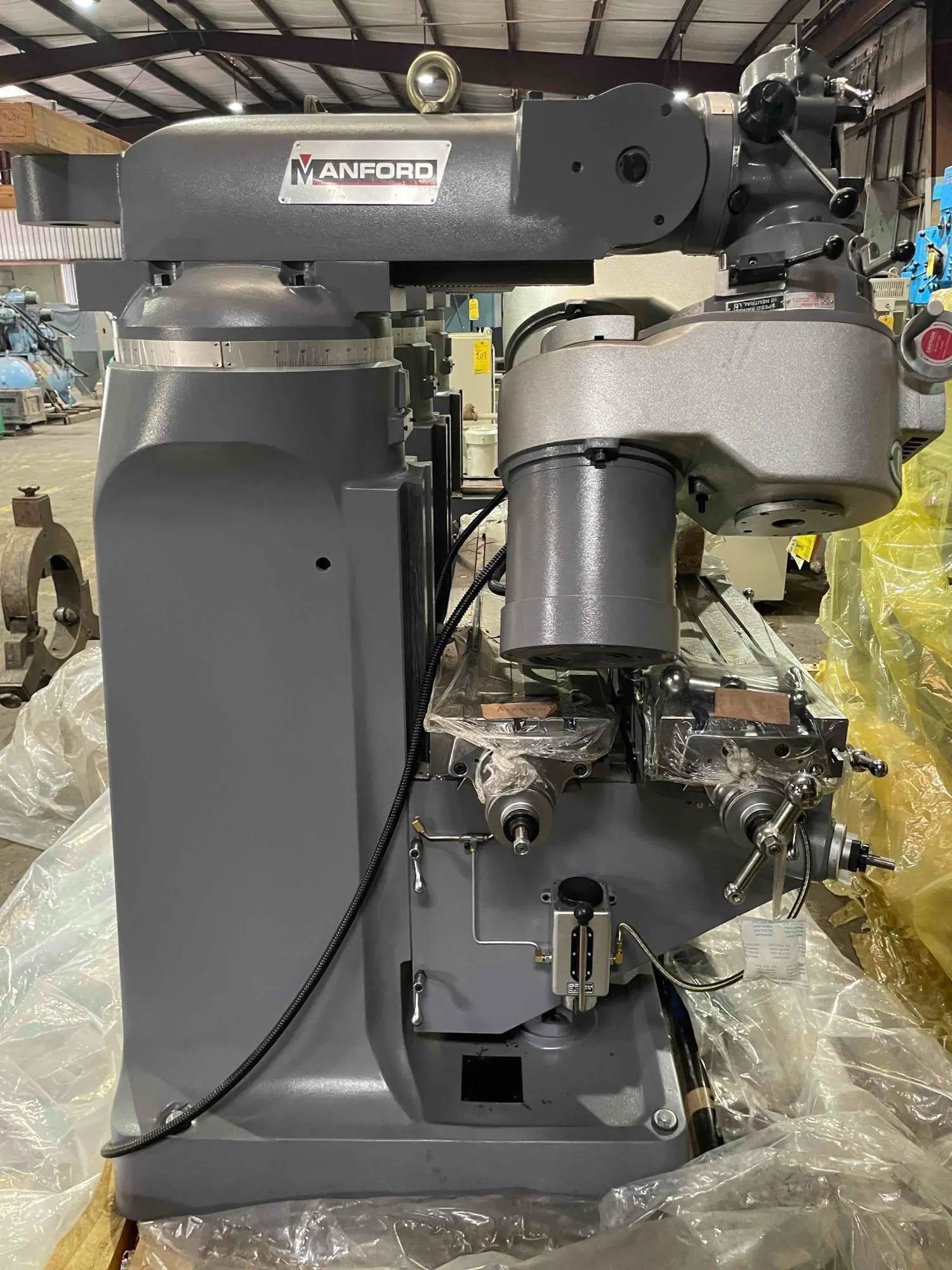

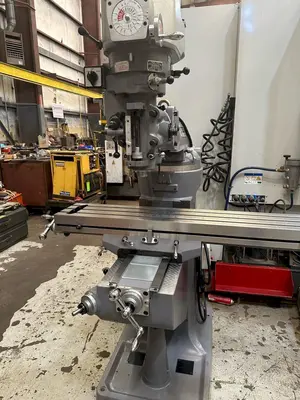

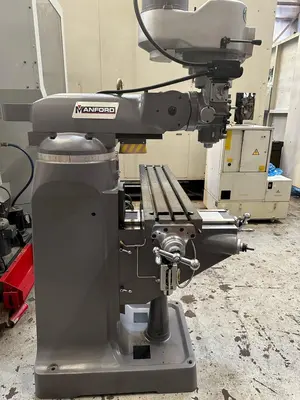

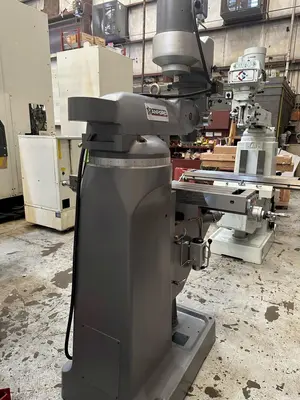

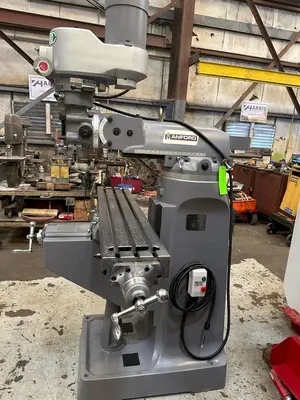

New / Un-used 2024 MANFORD L-2V manual mill offers a 9" x 49" table, 3 hp motor, and speeds up to 4500 RPM. Travel: Long 37", Vert 16", Cross 12". Equipped with variable speed Bridgeport-style head and chrome ways. Approx. weight 2200 lbs.
Specs
"Table Size","9" x 49"",""; "Table Travel Longitudinal","37","inches"; "Table Travel Cross","12","inches"; "Vertical Knee Travel","16","inches"; "Ram Travel","15","inches"; "Quill Travel","5","inches"; "Max Distance Spindle To Table Top","1.3" - 17.3"",""; "Turret Rotation","360 Deg.",""; "Head Swivel","(L-R) +/- 45 Deg.",""; "Head Tilt","(Up-Down) +/- 45 Deg.",""; "Spindle to Column","6" - 21.4"",""; "Spindle Speed (RPM)","70 - 4500 RPM",""; "Spindle Motor","3 HP",""; "Spindle Taper","R8",""; "Quill Feeds","(3) 0.0015, 0.003, 0.006 IPR",""; "Quill Diameter","3.375","inches"; "Dimensions","59" x 63-5/8" x 84" High",""; "Weight","2200","pounds"
Table Size: 9" x 49"
T-Slots: (3) 5/8"
Table Longitudinal Travel: 37"
Table Cross Travel: 12"
Knee Vertical Travel: 16"
Ram Travel: 15"
Quill Travel: 5"
Spindle Nose to Table: 1.3" - 17.3"
Turret Swivel: 360 Deg.
Head Swivel (L-R): +/- 45 Deg.
Head Tilt (Up-Down): +/- 45 Deg.
Spindle to Column: 6" - 21.4"
Spindle Speeds: 70 - 4500 RPM
Spindle Motor: 3 HP
Spindle Taper: R8
Quill Feeds: (3) 0.0015, 0.003, 0.006 IPR
Quill Diameter: 3-3/8"
OAD: 59" x 63-5/8" x 84" High
Weight (Approximate): 2200 Lbs.
Equipped With

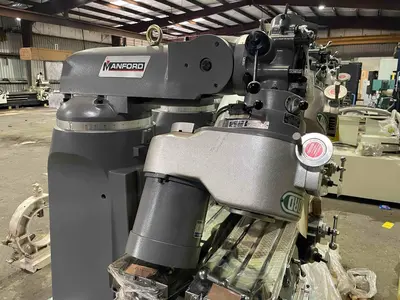

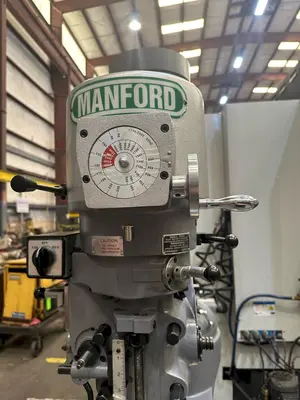

VARIABLE SPEED BRIDGEPORT STYLE HEAD

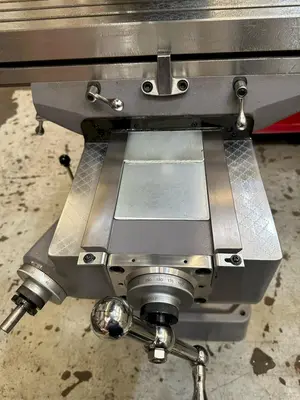

CHROME WAYS
ONCE SHOT LUBE
Note: All Specifications Subject to Verification
