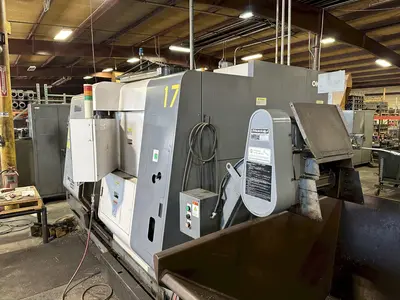

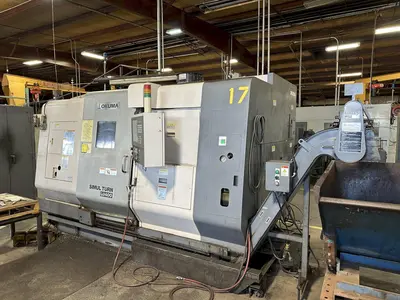

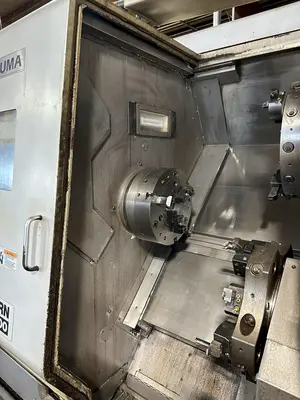

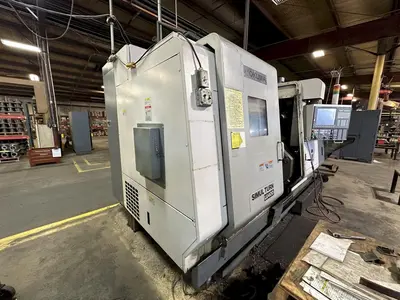

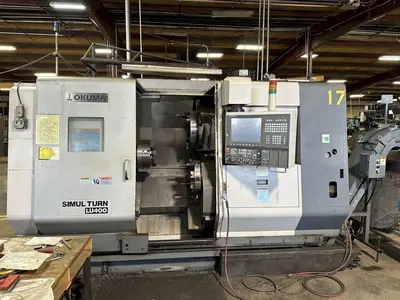

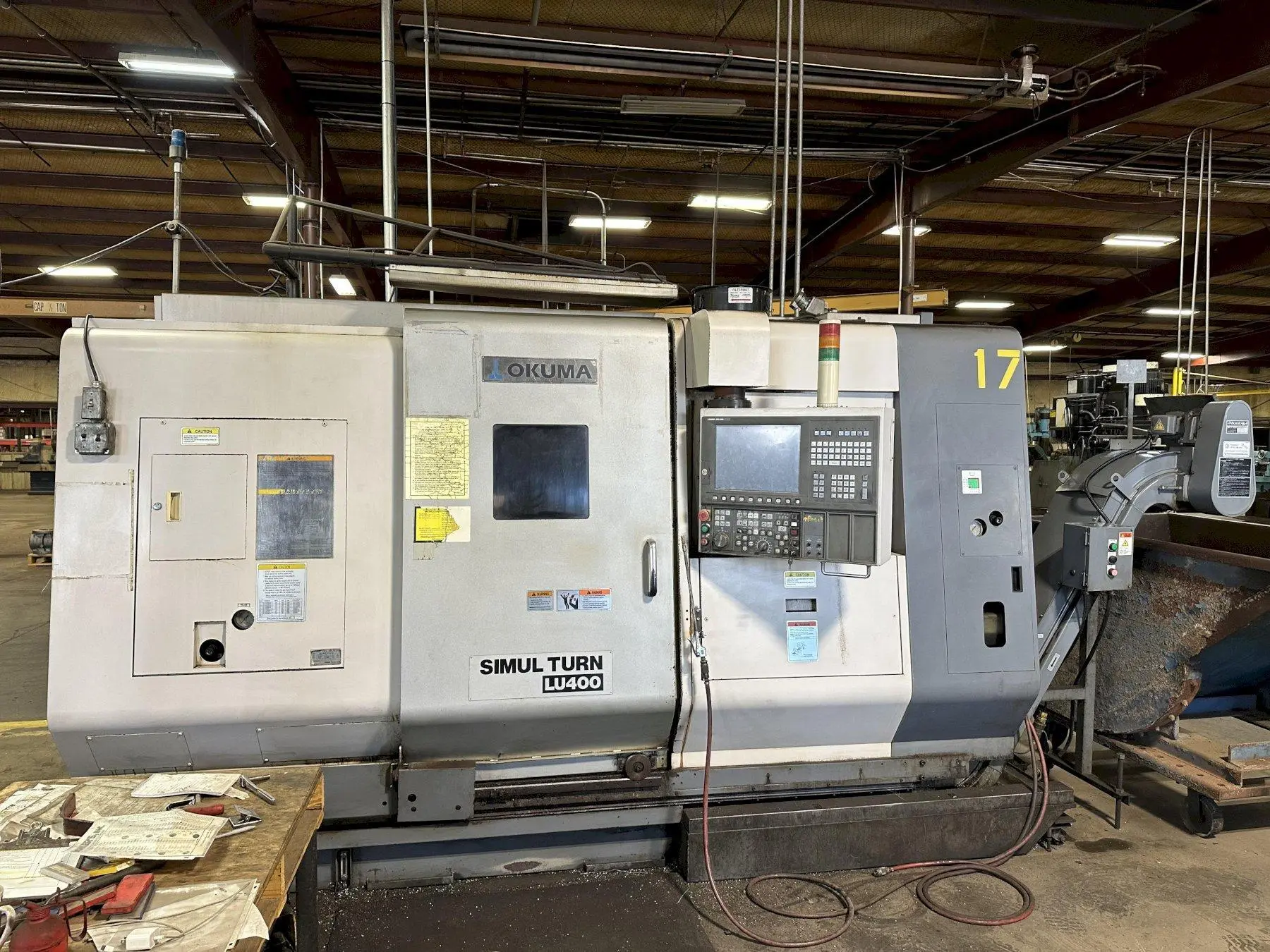

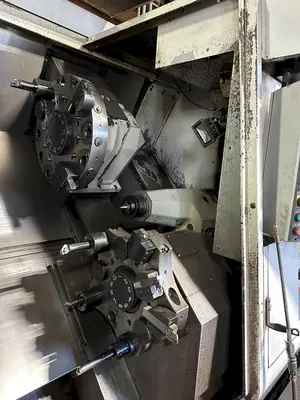

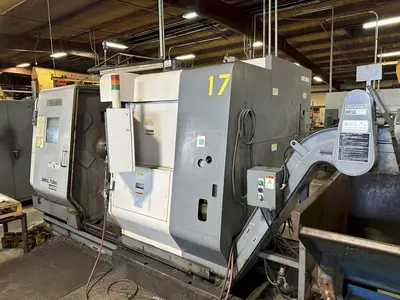

2006 OKUMA LU400 2SC650 4 Axis CNC Lathe
| Swing | 25" | 635 mm |
| Machining Length | 25.59" | 649.99 mm |
| # Axis | 4 | 4 |

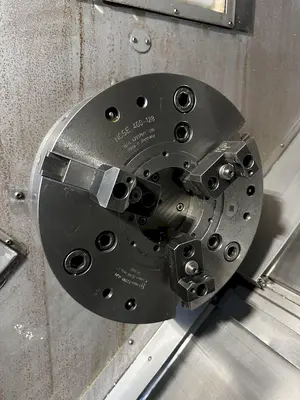

| Chuck Size | 16" | 406.4 mm |
| Bar Capacity | 4.33" | 109.98 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,800 RPM | 3,800 RPM |
| Turning Dia | 16.54" | 420.12 mm |
| Tailstock | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 169 X 85 X 86 | 169 X 85 X 86 |
| Weight | 19800 | 19800 |
Capacity:
Max Turning Diameter: 16.54″
Max Turning Length: 25.59″
Max Bar Capacity: 3.15/4.33″?
Max Swing over bed: 25.59″
Max Swing over carriage: 16.54″
Distance between Centers:26.59″
Max Weight between Centers: 1320 lbs
Travels:
X Axis Travel Upper: 11.73″
X Axis Travel Lower: 7.67″
Z Axis Travel Upper: 26.57″
Z Axis Travel Lower: 26.38″
Rapid Traverse X Axis: 984 IPM
Rapid Traverse Z Axis: 984 IPM
Spindle:
Spindle Bore: 3.5″
Spindle Nose: A2-8
Spindle Speed: 45-3800 RPM
Main Spindle Power: 35 HP

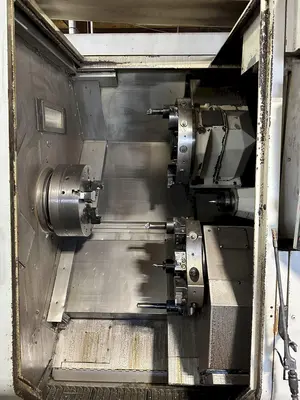

Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 10 Stations
Turret Index Time: 0.2 Second
Tailstock:
Taper: MT 5
Tailstock Quill Dia: 3.94
Tailstock Quill Travel: 5.91
General:
Power: 40 kva, 220/480v 3-Phase
Overall Dimensions: 137 X 85 X 86″ High
Overall Dimensions: 169 X 85 X 86″ with Chip Conveyor
Weight: 19,800 lbs
