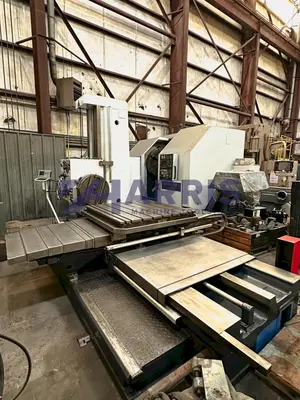

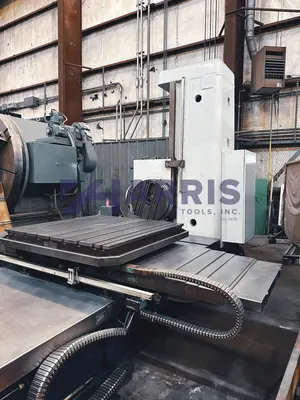

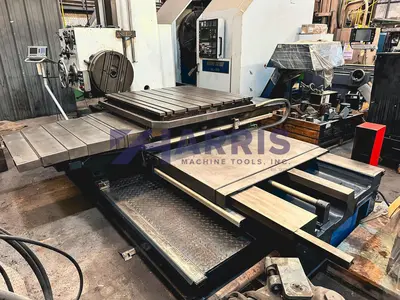

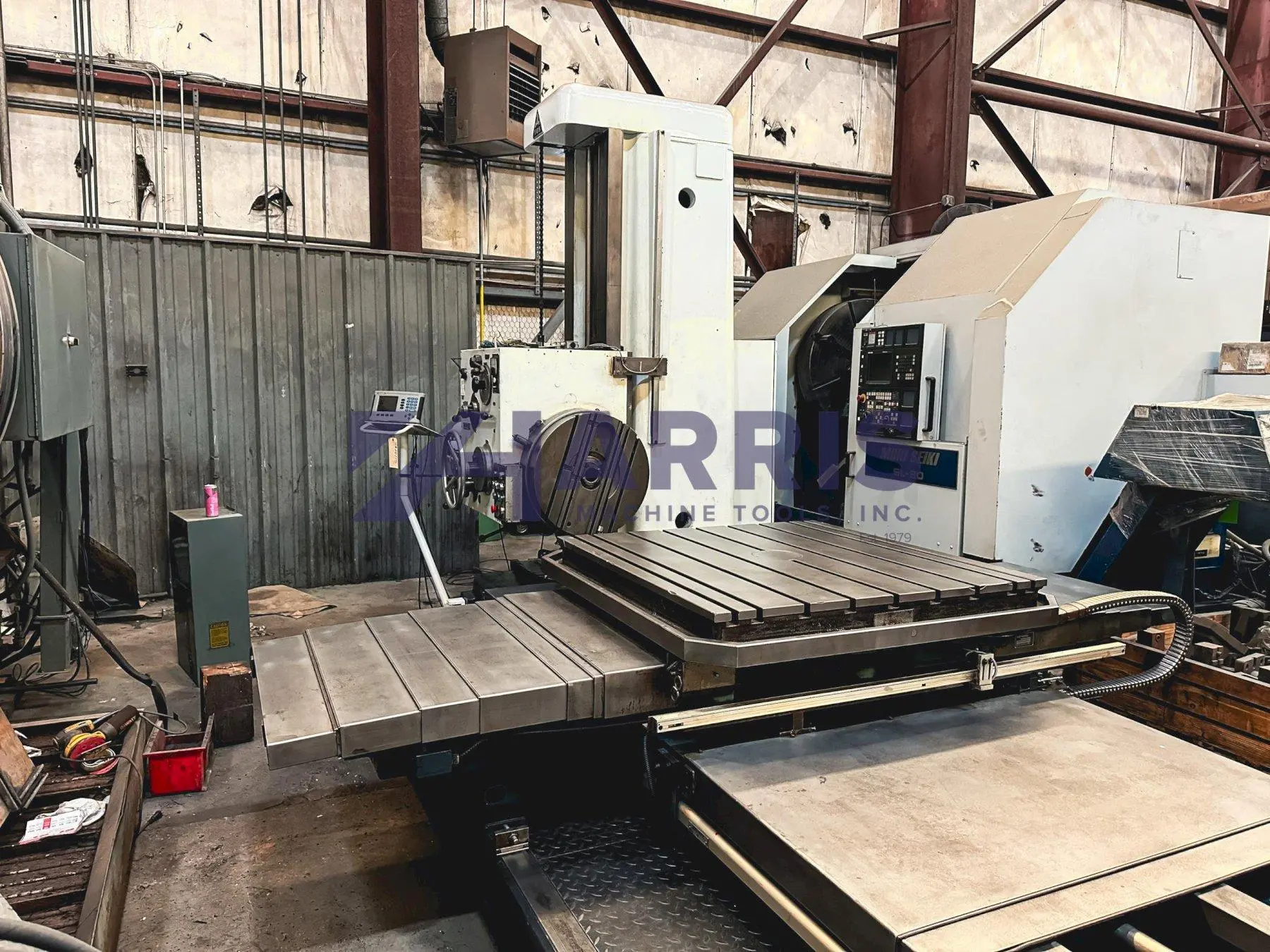

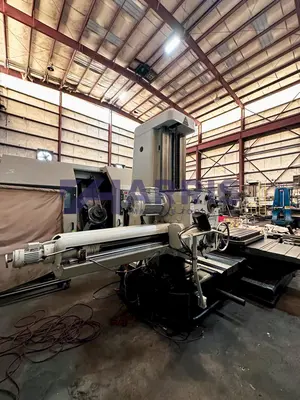

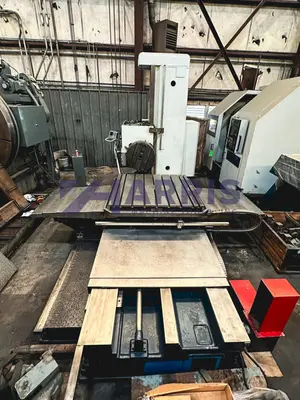

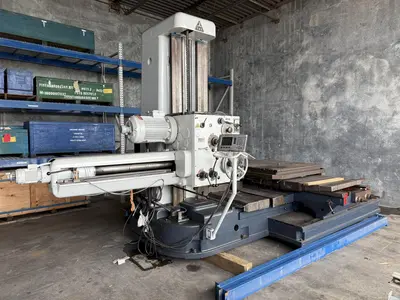

4" TOS Model W100A Table Type Horizontal Boring Mill
| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49" | 1,244.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Spindle Tvl. | 35" | 889 mm |
| Dimensions | 264 X 135 X 118 HIGH | 264 X 135 X 118 HIGH |
| Weight | 31000 | 31000 |
Spindle Size: 4” inches
Table Size: 49" x 49"
Max Weight On Table: 6600 pounds
X-Horiz Tvl of Table: 63” inches
Y-Vert Tvl of Head: 44” inches
Z-Axis Travel: 49” inches
W-Axis Travel (Quill): 35” inches
Spindle Speed: 1120 RPM
Spindle Motor: 15
Spindle Taper: 50
Power: 15 horsepower
RPM: 1120
Table-W: 49” inches
Table-L: 49” inches
Spindle Tvl.: 35” inches
Dimensions: 264" X 135" X 118" HIGH
Weight: 31000 pounds

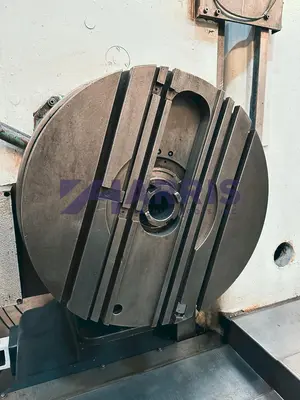

24" BUILT IN FACING HEAD

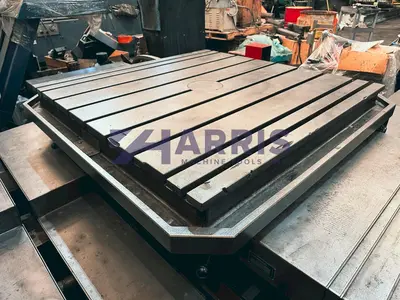

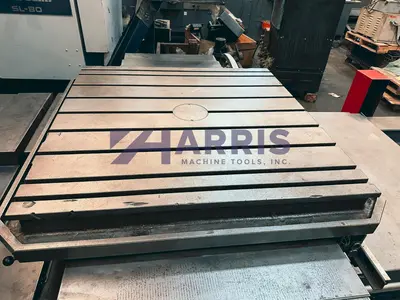

POWER ROTARY TABLE
4 AXIS DRO (X, Y, Z, W)
ONE PIECE BED CASTING
