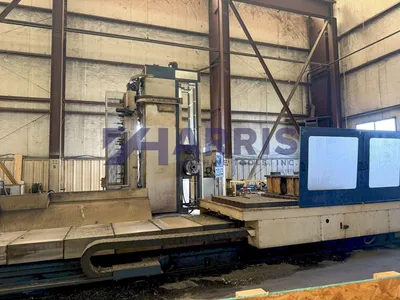

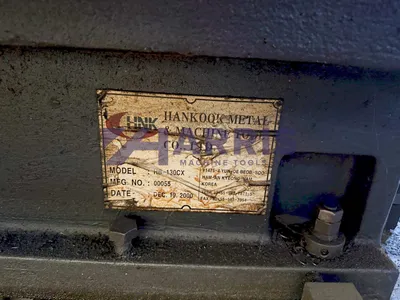

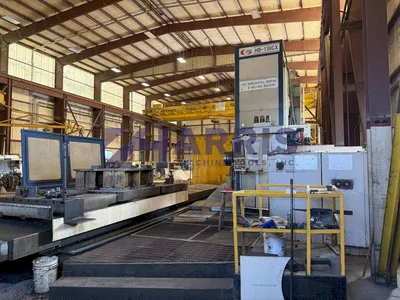

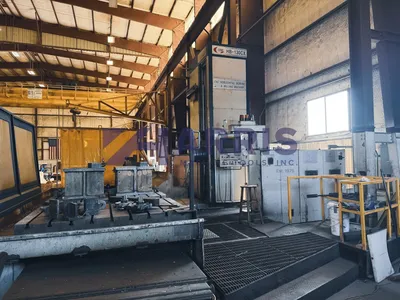

2000 HNK HB-130CX CNC Horizontal Boring Mill with 5.1" spindle, 157" X-axis, and 90" Y-axis travel. Equipped with a 40-tool changer, coolant through the spindle, and FANUC 16 CNC control. See it on YouTube.
| Spindle Size | 5.1" | 129.54 mm |
| X-Horiz Tvl of Table | 157" | 3,987.8 mm |
| Y-Vert Tvl of Head | 90" | 2,286 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 157" | 3,987.8 mm |
| Spindle Tvl. | 27.5" | 698.5 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 397 x 291 x 193 | 397 x 291 x 193 |
| Weight | 108000 | 108000 |
BORING SPINDLE DIAMETER: 5.1"
STROKE:
X AXIS: 157"
Y AXIS: 90"
Z AXIS: 51"
W AXIS: 27.5"
DISTANCE FROM SPINDLE NOSE TO CENTER OF TABLE: 30" - 80"
DISTANCE SPINDLE CENTER TO TOP OF TABLE: 0 - 90"

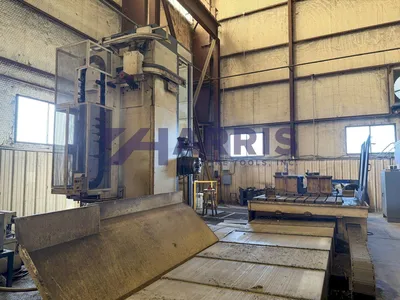

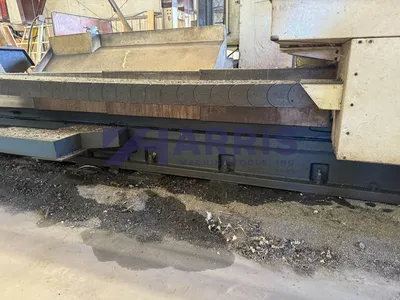

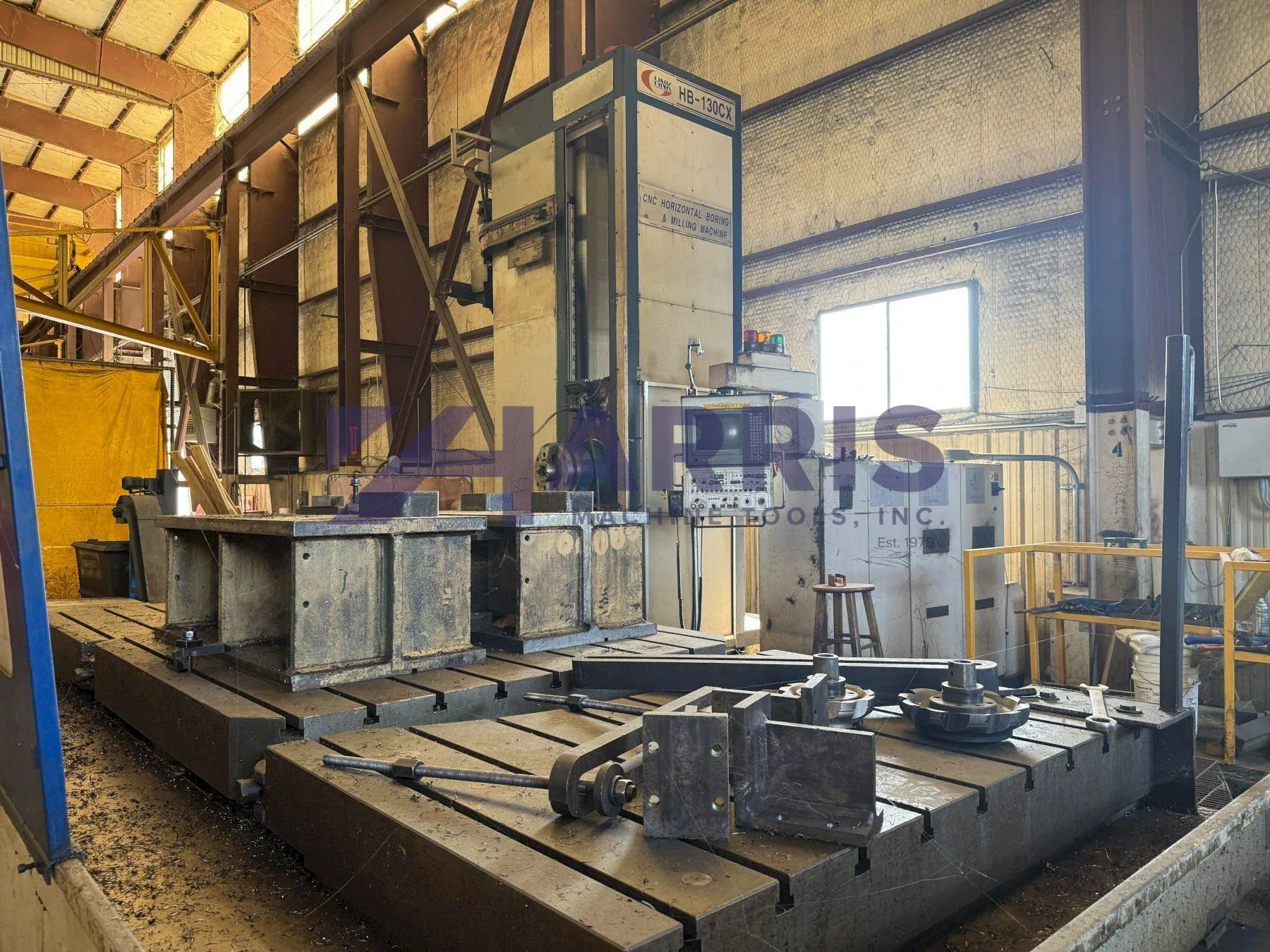

TABLE:

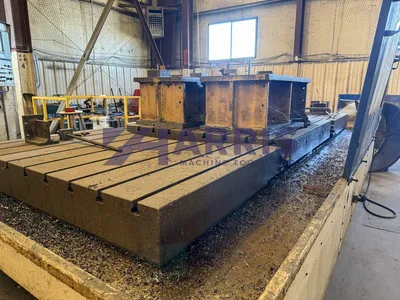

DIMENSION: 63" X 157"
ROTARY TABLE DIMENSION: 63" X 63"
ALLOWABLE LOAD: 33,000 LBS.
ROTARY TABLE ALONE: 22,000 LBS.
ROTARY INDEX: .001 DEGREE WITH 90 DEGREE SHOT PINS

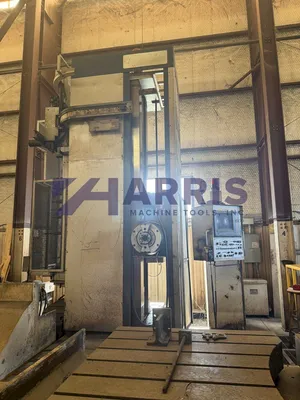

SPINDLE HEAD:
POWER: 35 HP
SPEEDS: 5 - 2500 (3 GEAR RANGES)
SPINDLE TAPER: ISO #50, 7/24 TAPER
MACHINE WEIGHT: 108,000 LBS.
MACHINE DIMENSIONS: 397" X 291" X 193" HIGH

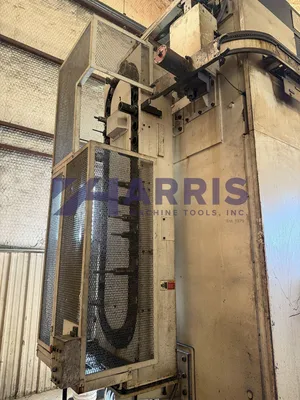

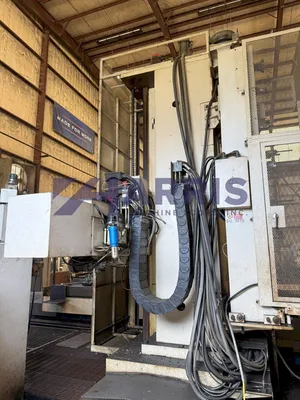

TOOL CHANGER:
40 TOOLS CAPACITY
TOOL SHANK / PULL STUD: CAT 50 / MAX 403 B50T
MAX TOOL WEIGHT: 55 LBS.
MAX TOOL LENGTH IN ATC: 16"

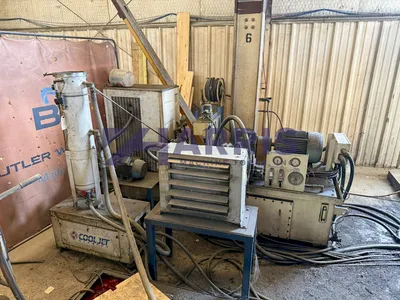

COOLANT THROUGH THE SPINDLE

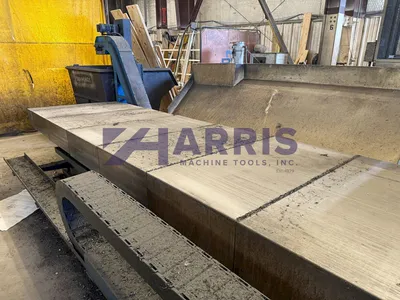

CHIP CONVEYOR

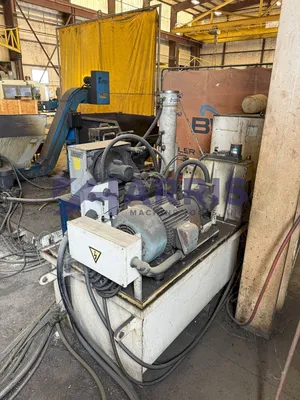

SPINDLE OIL CHILLER

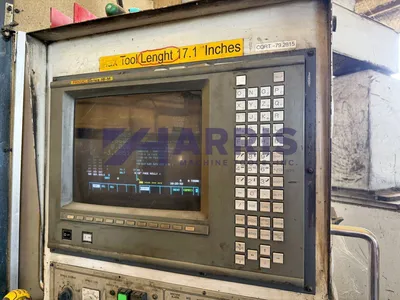

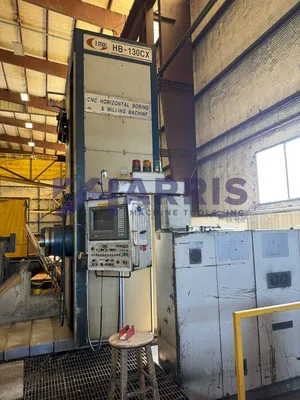

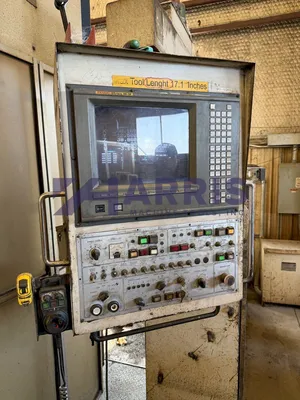

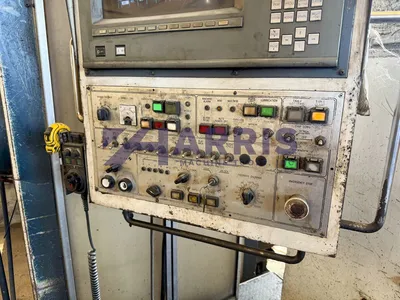

FANUC 16 CNC CONTROL WITHPORTABLE MPG

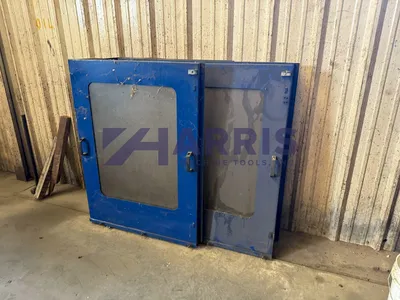

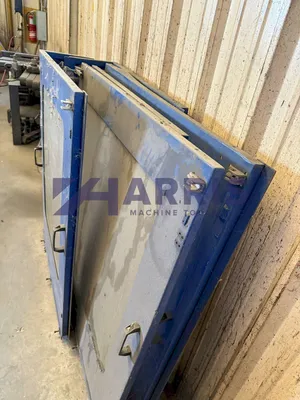

TABLE GUARDING - CURRENTLY REMOVED
** MACHINE SITS FLOOR FLUSH - NO PIT REQUIRED **
B-Axis Rotary Table needs repair.
