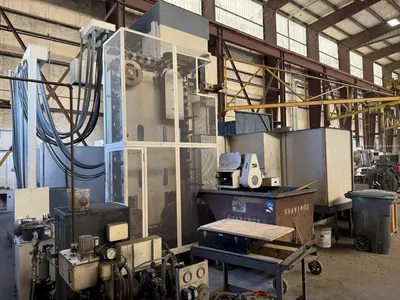

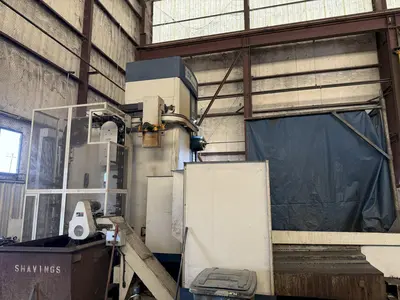

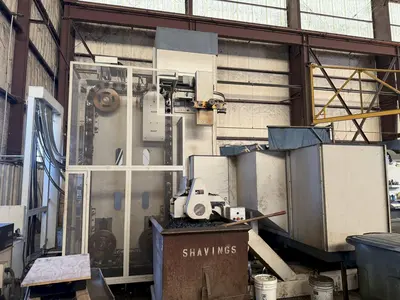

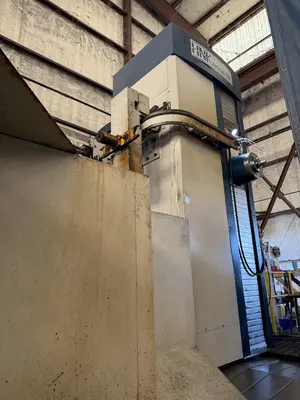

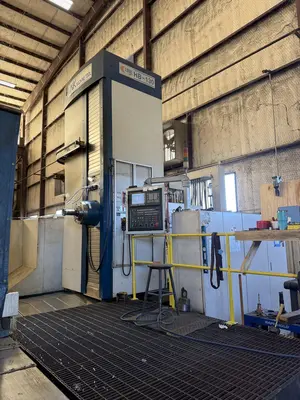

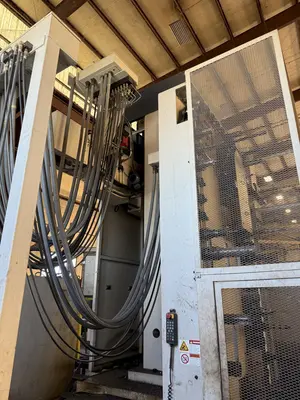

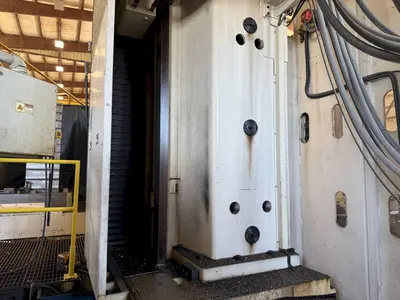

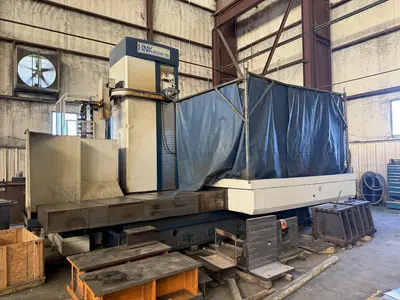

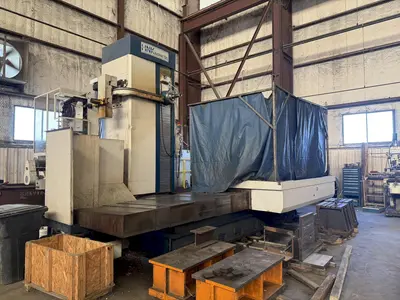

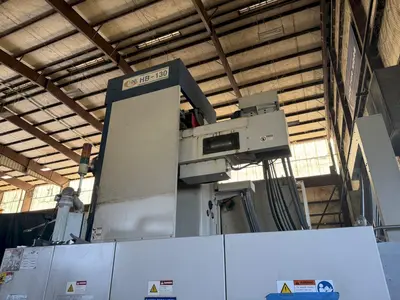

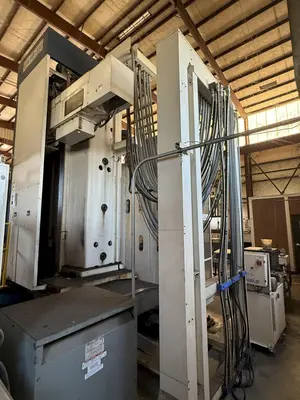

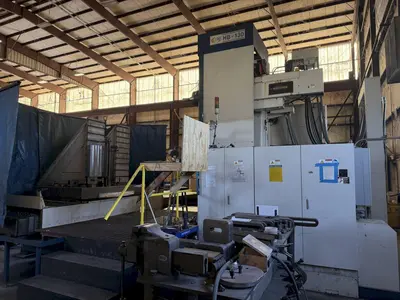

USED 2014 HNK HB-130

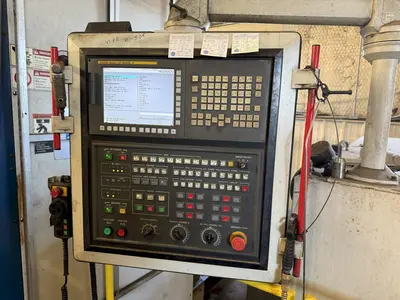

5.1" HNK CNC HORIZONTAL BORING MILL, HBM, BUILT IN ROTARY, 120" CROSS, 90" Y, FANUC 31i, 2014/2016

BORING SPINDLE DIAMETER:  5.1"

STROKE:
X AXIS:  118"
Y AXIS:  90"
Z AXIS:  63"
W AXIS:  27.5"

DISTANCE FROM TABLE CENTER TO SPINDLE NOSE:  29.5 - 92.5"

DISTANCE FROM SPINDLE CENTER TO TABLE SURFACE:  0 - 90.5

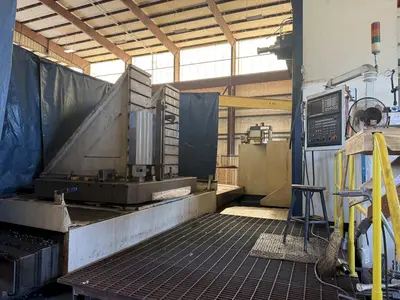

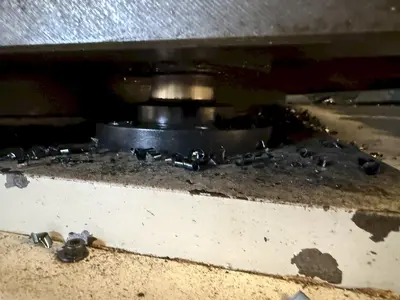

TABLE:
ROTARY TABLE SIZE:  63" X 70"
TABLE INDEXING:  .001 DEGREE (SHOT PIN EVERY 90 DEGREE)
MAX LOAD ON ROTARY TABLE:  33,000 LBS.

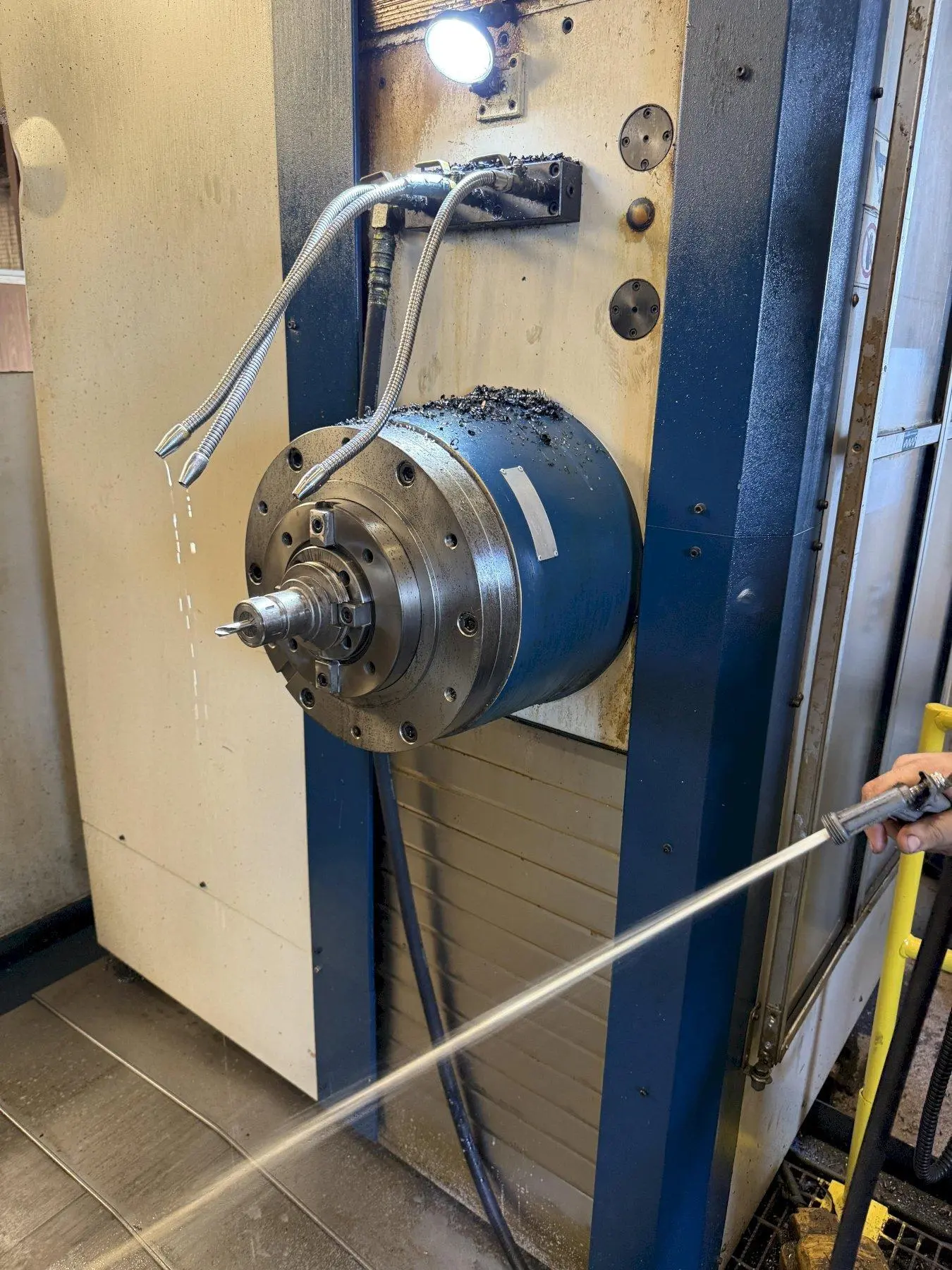

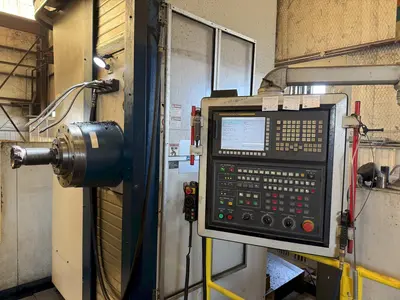

SPINDLE HEAD:
SPINDLE DIAMETER:  5.1"
SPINDLE SPEED:  5 - 2500 (3 RANGES)
SPINDLE TAPER:  ISO 50

SPINDLE POWER:  35 HP

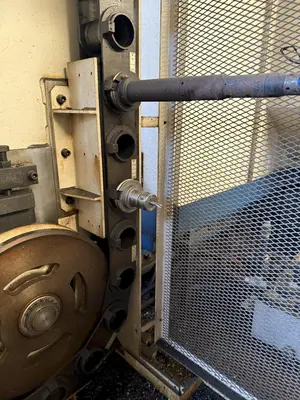

AUTOMATIC TOOL CHANGER:
POSITIONS:  60
MAX TOOL WEIGHT:  55 LBS.
MAX TOOL LENGTH IN CAROUSEL:  16"

MACHINE DIMENSIONS:  285" X 307" X 197" HIGH
MACHINE WEIGHT:  96,000 LBS.

RENISHAW TOOL TOUCH PROBE
RENISHAW PART PROBE

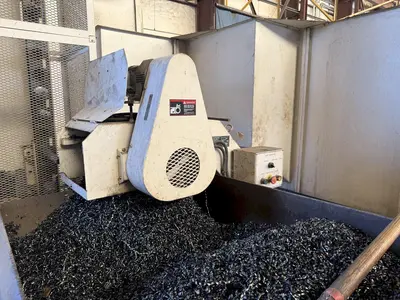

CHIP CONVEYOR
COOLANT THROUGH THE SPINDLE
TABLE GUARDS (CURRENTLY NOT INSTALLED)

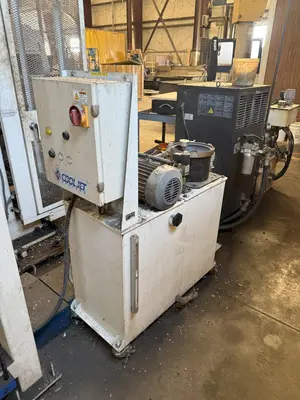

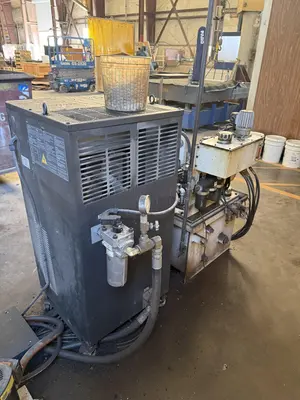

SPINDLE OIL CHILLER
HEIDENHAIN SCALES
