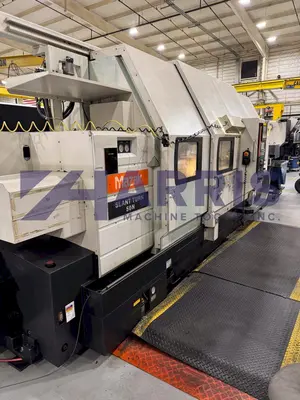

2006 MAZAK Slant Turn 50N 2 Axis CNC Lathe features Mazatrol 640T CNC, 20" chuck, 31.7" swing, 28" turning diameter, and 120" center distance. Equipped with hydraulic steadyrest, 20" 4 jaw chuck, and chip conveyor. Be sure to check out the demo video!
Specs subject to buyer review.
| Swing | 31.7" | 805.18 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 750 RPM | 750 RPM |
| Turning Dia | 28" | 711.2 mm |
| Tailstock | Yes | Yes |
| Control | CNC | CNC |
CNC Control: yes

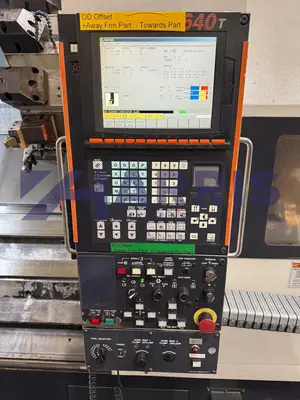

Type of CNC Control: Mazatrol 640T CNC Control
Chuck Size: 20” inches
Swing: 31.7” inches
Turning Diameter: 28” inches
Center Distance: 120” inches
Bar Capacity: 3.5” inches
Spindle Bore: 4” inches
X Axis Travel: 22.6” inches
Z Axis Travel: 12” inches
Rapid Traverse (X/Z): 473/552 IPM
Spindle Speed (RPM): 750
Main Motor: 50
Tailstock: yes
Steady Rest Capacity: 10” inches
See it in action on our YouTube channel!

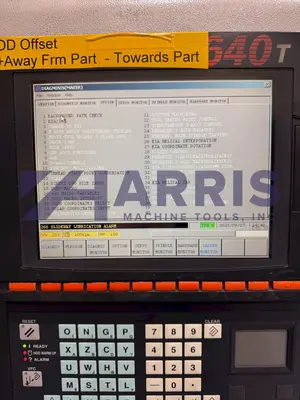

Control Options:
Coordinate Rotation and Scaling
Helical Interpolation
Macros
EIA/ISO Code Input Function
Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check
Hydraulic Steadyrest

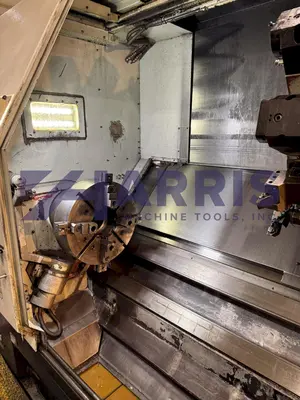

20" 4 Jaw Chuck
Chip Conveyor
*All specs are subject to buyer reveiw
