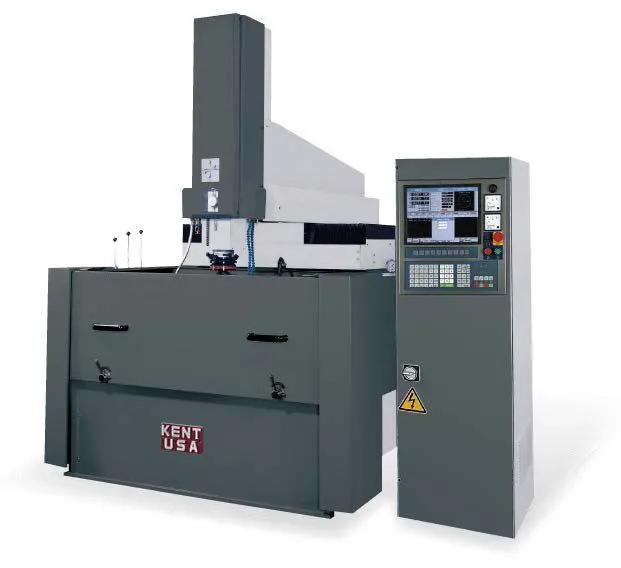

NEW KENT KEB-700L CNC

Sinker Type EDM
Kent USA Sinker EDMs have 3D capabilities and are ideal for mold making, micro hole drilling, creating shapes in fully-hardened metal components, and machining washers, keyways, scientific research apparatuses and more. They are used for creating more complex geometries with a high degree of accuracy. Because there is no direct contact between the electrode and the material, our Sinker EDMs can burn through any electrically conductive material without inducing stress into or deforming the workpiece. Kent USA Sinker Type EDMs offer tank sizes from 43.3″ x 23.6″ x 15.7″ to 77″ x 43″ x 22″, power of 30A to 90A, and up to 8820 lbs of max load. All Kent USA Sinker EDMs are backed by our 15-month warranty.

- 60 Amp power supply capacity
- Fully ribbed solid casting for maximum rigidity and stability
- Built-in 3-axis DRO system integrates with machine control for positioning and auto z-depth setting for easier setup
- Maximum 256 programmable steps for setting all machining parameters enable a complete start to finish auto-cycle for even the most complex jobs
- MOSFET electric discharge circuit design for fast-burning, reduced electrode wear, and more uniform surface finish
- Precision linear ways with lubricated ball screws and AC Servo motors on X, Y, and Z-axis
- Single or 3 axes lateral movement, round orbiting, square orbiting, etc.
- Multi-cavity machining, Auto Home Function
- With Side Loran function (X, Y-axis), Angle Vector machining function, and ARC clockwise & counterclockwise function.
- With C-axis option, the electrode can be turned to machine at an angle.
