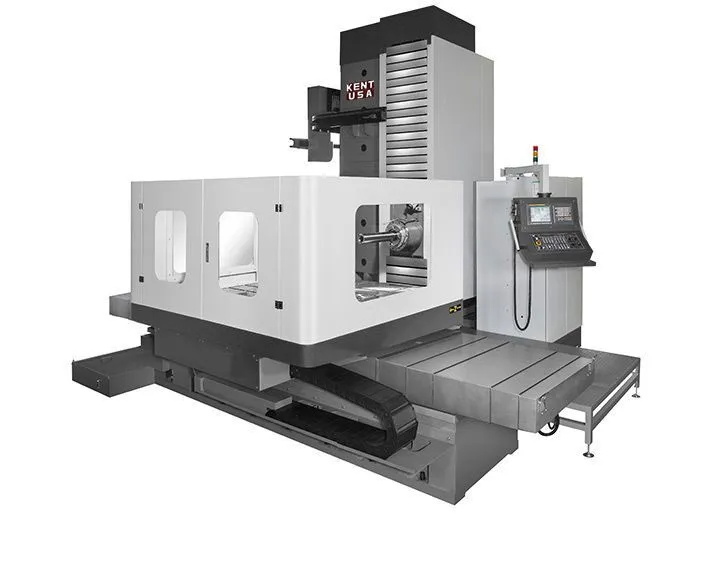

Horizontal Boring Milling Machines
Kent USA’s collection of Horizontal Boring Mills incorporate many features from various machine tools and offer high precision and great stability in heavy-duty cutting. All slide ways are hardened, precision ground, and scraped for long-lasting precision. The X- and Y-axes are equipped with ball screws, which ensure that the table moves smoothly. They are predominantly used to create large manufacturing jigs or to modify large, high precision parts. Kent USA horizontal boring mills offer table sizes of 55″ x 32″ to 66″ x 55″ and spindle HP of 10 HP to 26 HP.
- 7” x 59” hardened and ground table top, #50 taper spindle
- Precision ball screws in X, Y, Z, & W axes
- X, Y, Z, & W axes driven by AC motor

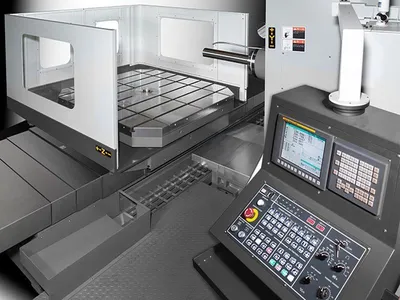

- Compact operation panel
- Meehanite® casting, with built in coolant reservoir in machine base
- Coolant system
- Centralized automatic lubrication
| Spindle Size | 4.33" | 109.98 mm |
| X-Horiz Tvl of Table | 47.25" | 1,200.1 mm |
| Y-Vert Tvl of Head | 62.21" | 1,580.1 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 55" | 1,397 mm |
| Table-L | 78.7" | 1,999 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
