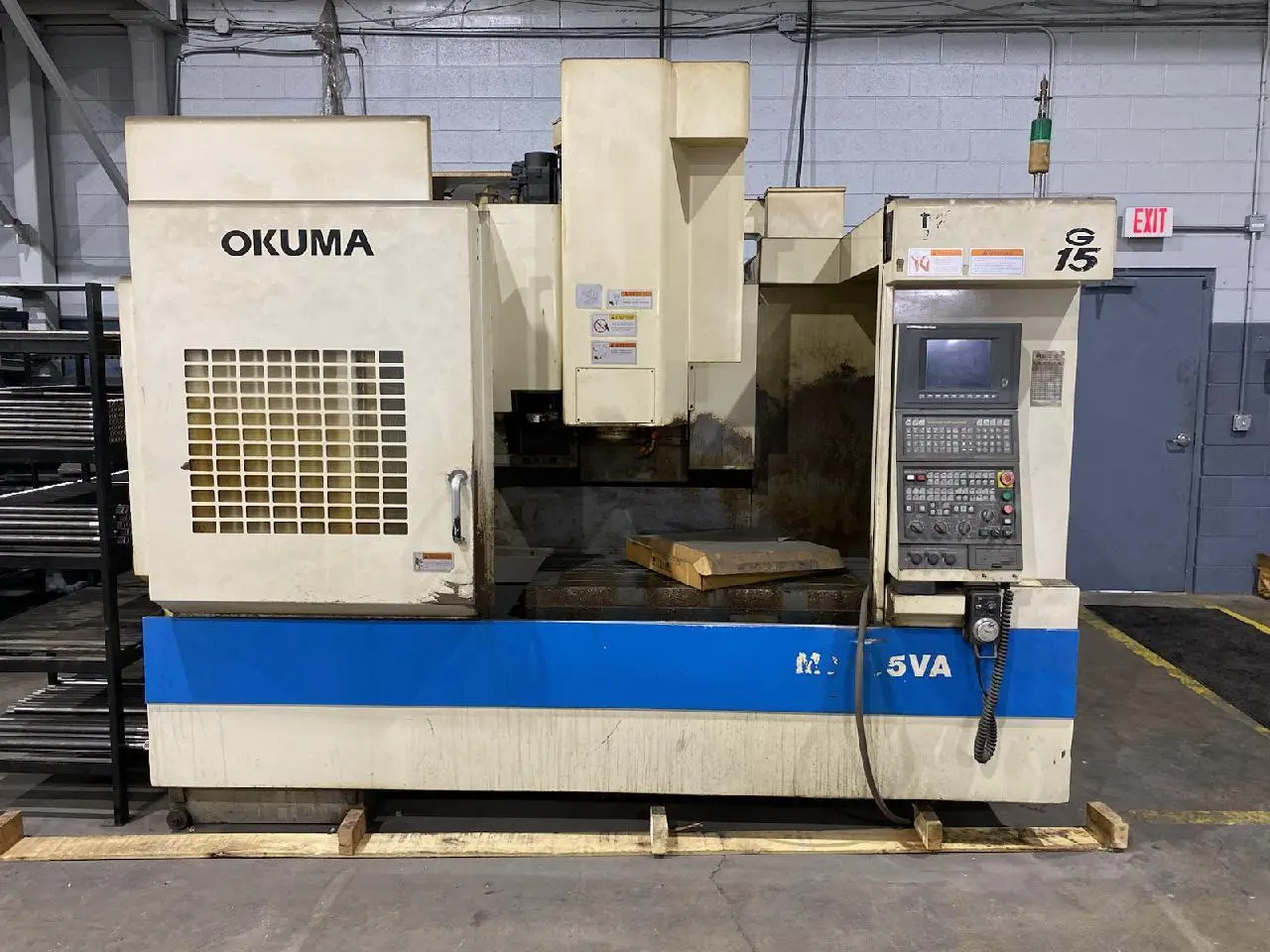

1999 Okuma MX-55VA with OSP700M Control, 32 Station ATC, CAT-40 Spindle, Coolant System.
| X | 41" | 1,041.4 mm |
| Y | 22" | 558.8 mm |
| Z | 17" | 431.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 51.18" | 1,300 mm |
| Table-L | 22.05" | 560.07 mm |
| # Axis | 3 | 3 |
| Control | CNC (OSP-700M) | CNC (OSP-700M) |
| Dimensions | 114" x 114" x 104" | 114" x 114" x 104" |
| Weight | 15,000 LBS | 15,000 LBS |
Table Working Surface............................. 51.18" x 22.05"
Table Load Capacity............................... 1,500 LBS
Longitudinal Travel (X-Axis)...................... 41.3"
Cross Travel (Y-Axis)............................. 22"
Vertical Travel (Z-Axis).......................... 17.72"
Rapid Traverse Rate (X and Y Axes)................ 1181 IPM
Rapid Traverse Rate (Z Axis)...................... 945 IPM
Spindle Face to Table Surface..................... 14" - 31.8"
Tool Storage Capacity............................. 32
Spindle Speeds Range.............................. 50-7000 RPM
Spindle Taper..................................... CAT-40
Approximate Machine Dimensions.................... 114" x 114"
Approximate Machine Height........................ 104"
Approximate Machine Weight........................ 15,000 LBS
OSP-700M CNC Control
RS-232 Port
Manual Pulse Generator
32 Position ATC
Coolant System
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
