NEW EMAG GT 500 HL

Screw Profile Grinding GT 500 HL

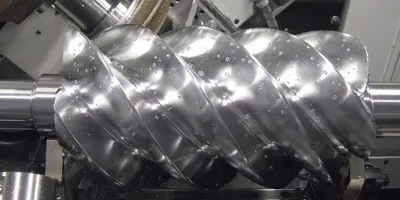

The GT 500 HL is suitable for the manufacture of very large screws and rotors.

Manufacturing of very large screws and rotors

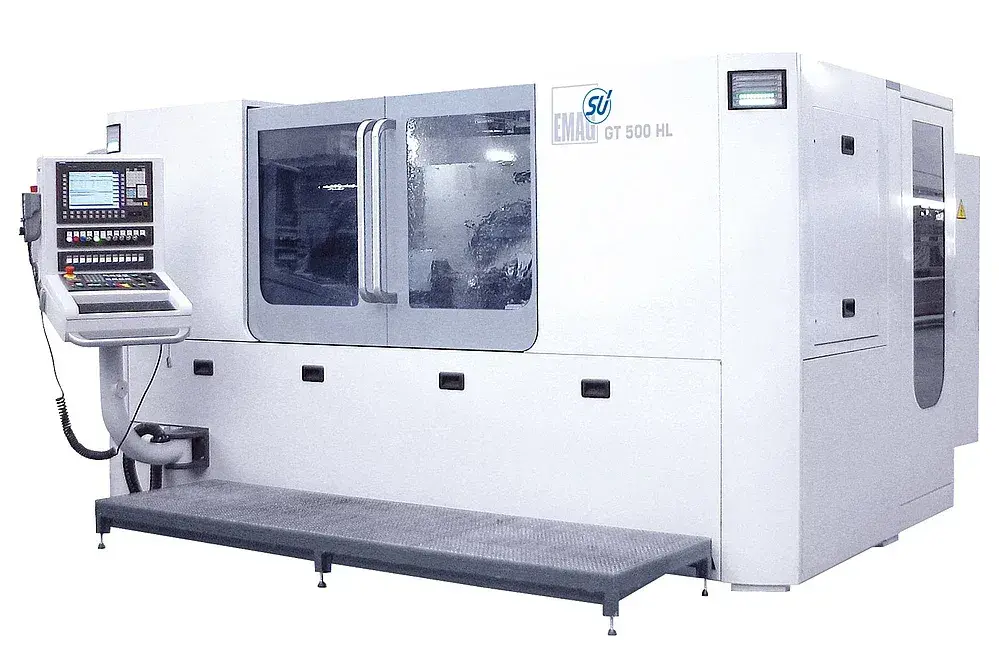

The GT 500 HL screw profile grinding machine is suitable for the manufacture of very large screws and rotors.

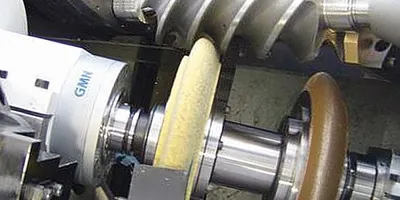

Especially suitable to grind with CBN, the GT 500 HL also facilitates working with dressable ceramic wheels or even combinations of the two.

An integrated measuring unit also makes the correction on board. For more efficient handling, you can link the GT 500 HL to an external robot device and connect it directly with an external measuring unit.

Like the GR gear profile grinding machine, the GT 500 HL comes with a rotor-specific software package, developed under real manufacturing conditions.

- Module range: mm 0.5 - 35.0
- Workpiece dia., max.: 380 mm | 15 in
- Workpiece length, max.: 1,150 mm | 45.5 in
