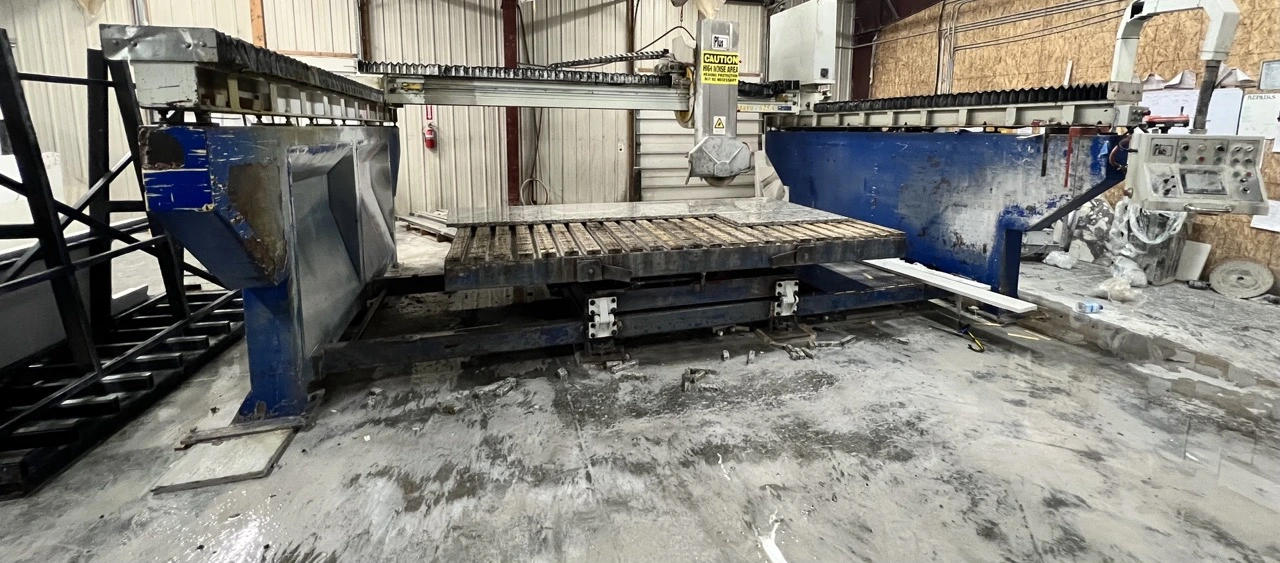

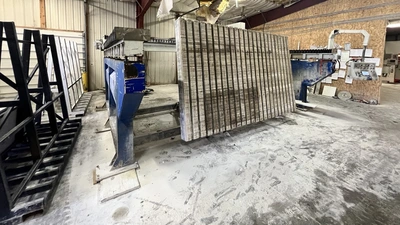

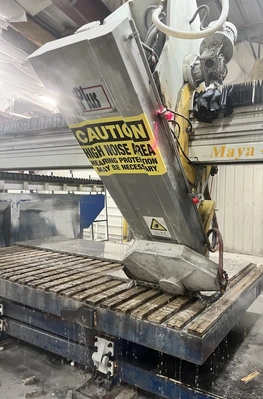

USED 2014 STONEPLUS MACHINERY CO. MAYA 625

Table Size: 126″ × 78″
Max Cut Length: 140″ × 90″Cutting Thickness: 4″–7″ Automatic Step-Cut (Two-Way Cutting)
Blade Size: 18″–24″
Blade / Head Tilt: 0–45°, Hydraulic, Plunge Cut
Blade RPM: 350
Table Turn / Tilt: Powered Tilt to 85°, Powered Rotation 0°–360°
Cut Rate: 10′ × 1.25 IPM
Hydraulic Stops: Automatic Stops at 45° & 90°
Table Load Capacity: 0.6 Ton
Main Motor: Direct Drive, 20 HP (380V) with Transformer
Power Requirement: 220V, 3-Phase, 60A, ±5% Regulated, 30 kW
Engine Speed: 1450 RPM Cutting Speed
Overall Dimensions (L × W × H): 19′ × 15.5′ × 9′
Water Requirement: 4 Gal/Min with Auto Stop
Cooling: Water-Cooled Hydraulic System
Equipped With
Programmable Microcomputer Control

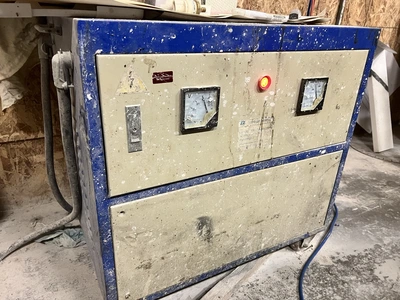

Transformer
Laser Guide System
Wireless Pendant Remote
LCD Control Panel
Cast-Iron Bridge
All Available Manuals
