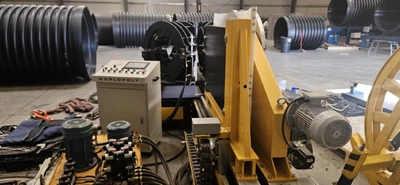

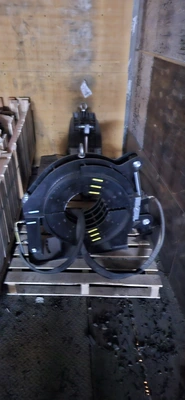

USED 2021 WORLDPOLY WH630CNC

Materials for Welding: Polyethylene (PE)
Max Elbow Outside Diameter: 24.8″ (SDR11)
Max Tee Outside Diameter: 24.8″ (SDR11)
Max Cross Outside Diameter: 24.8″ (SDR11)
Ambient Temperature: 23 °F – 113 °F
Hydraulic Oil (Kinematic Viscosity @ 104 °F): 40–50 mm²/s (approx. 185–232 SUS)
Power Supply: ~400 V ±10%
Frequency: 50 Hz
Total Current: 49.6 A
Total Power: 30.2 kW (≈ 40.5 HP)
Heating Plate: 24.2 kW (≈ 32.4 HP)
Planing Tool Motor: 4 kW (≈ 5.4 HP)
Hydraulic Unit Motor A: 3 kW (≈ 4 HP)
Hydraulic Unit Motor B: 1.5 kW (≈ 2 HP)
Insulating Resistance: >1 MΩ
Max Hydraulic Pressure: 12 MPa (≈ 1740 psi)
Total Cylinder Section: 19.63 cm² (≈ 3.04″²)
Max Heating Plate Temperature: 518 °F
Heating Plate Temperature Difference: ±12.6 °F
Noise Level: <70 dB
Oil Tank Capacity: 8.45 gal
Total Weight: 13,961 lb
