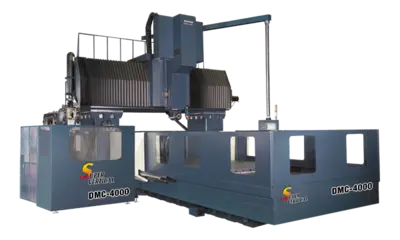

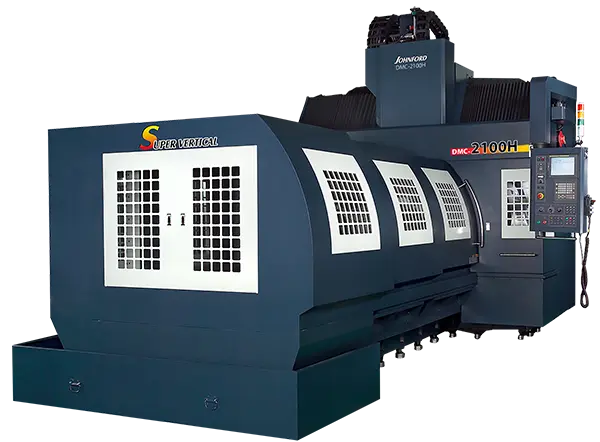

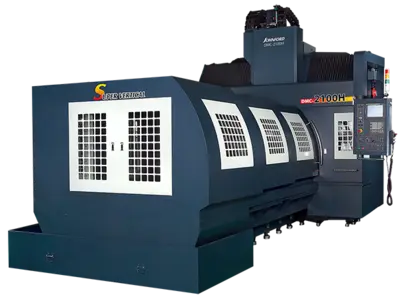

Johnford is renowned worldwide for building some of the heaviest and most rugged CNC bridge mills in the industry — a reputation earned over decades since the company’s founding in the late 1970s. The DMC-1600 to DMC-6100 series features a fixed-column, moving-table design that delivers exceptional rigidity and versatility while conserving valuable floor space. With expansive standard configurations and optional accessories, this series is designed to meet the needs of virtually every metal-cutting manufacturer.
- Unique one-piece bridge and columns casting
- Full-length Meehanite cast iron base for 100% table support
- Hardened and ground box ways in both Y and Z axes for maximum rigidity
- 2-speed gearbox spindle drive for high torque cutting
- Hydraulic Z-axis counterbalance for smooth motion control
- Easy-access, high-speed automatic tool changer (ATC)
- 100% full enclosure to contain chips and coolant
- Complete chip removal system with two screw-type conveyors plus one belt conveyor
- Superior ergonomics with just 30.7″ table height from the floor
| X | 161.4" | 4,099.6 mm |
| Y | 51.2" | 1,300.5 mm |
| Z | 31.542" | 801.17 mm |
| # Axis | 3 | 3 |
| Power | 31 hp | 23.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Table-W | 45.3" | 1,150.6 mm |
| Table-L | 165.3" | 4,198.6 mm |
| Taper | BT-40 / CAT-40 (HSK-63A opt.) | BT-40 / CAT-40 (HSK-63A opt.) |
| Control | CNC (Oi-MF Plus (31i-MB Plus opt.)) | CNC (Oi-MF Plus (31i-MB Plus opt.)) |
