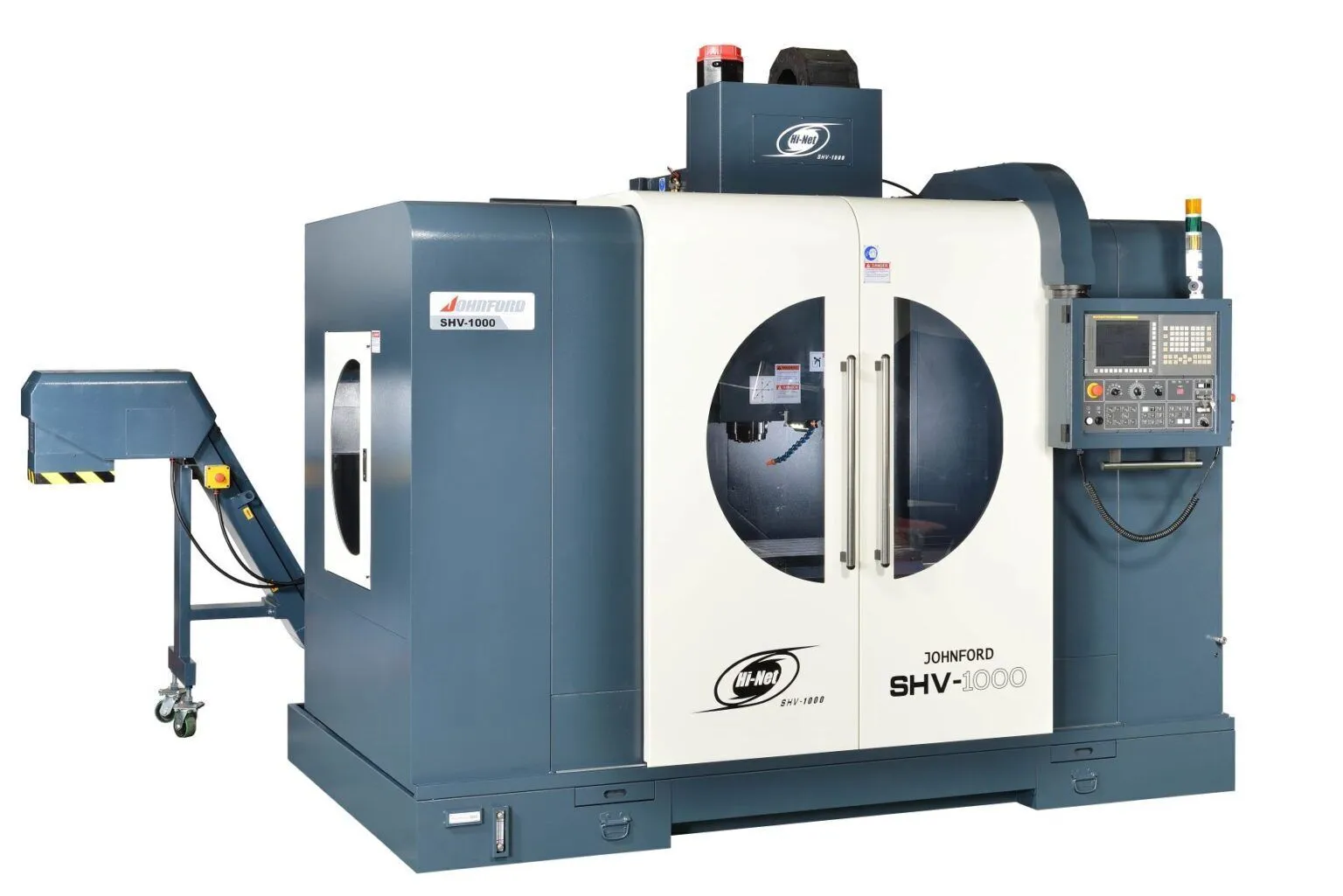

NEW JOHNFORD SHV-1000

View full gallery

Johnford Super Hi-Net series of vertical machining centers combines speed, rigidity and precision specifically aimed at high speed mold machining. To maximize surface finish quality of molds, the SHV Series machines feature Schneeberger roller type linear ways on all axes with large diameter pre-tensioned ballscrews. Weiss integral spindles with 31 hp are standard equipment.

X-Y-Z travels for the four-machine series range from 33″ x 24″ x 24″ (838 mm x 600 mm x 600 mm) to 48″ x 28″ x 25″ (1219 mm x 711 mm x 635 mm).

Standard features include a heavy-duty 24-tool arm-type automatic tool changer mounted to the left side of the machine for easy maintenance, a chip removal system consisting of twin screw type rear discharge conveyors, a high volume coolant system, and a full machine enclosure to contain chips and coolant.
