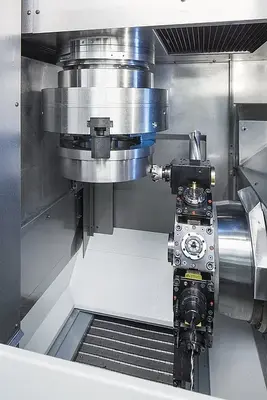

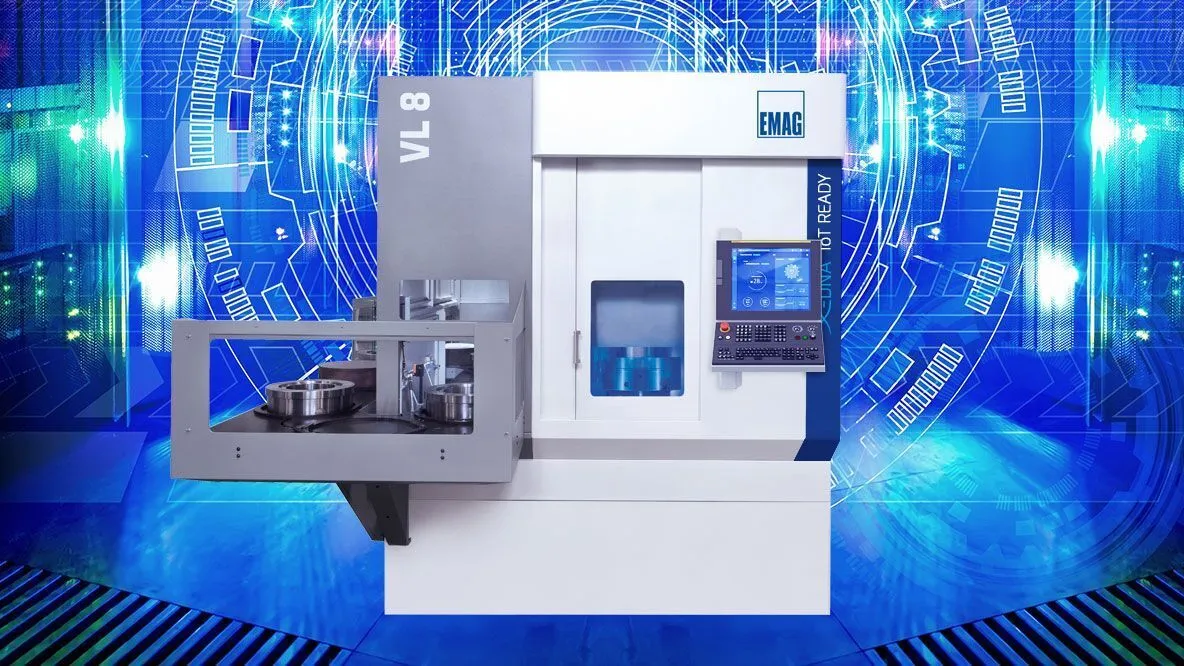

With the VL 8 vertical pick-up turning machine EMAG makes the advantages of its VL series available for large parts as well. The automation system integrated into the turning machines guarantees rapid processing, while the stable basic structure of the machine ensures top quality in turning and milling. The vertical design likewise contributes to the high machining quality, as it virtually eliminates all effects of chips generated during machining.
- Workpiece dia., max.: 400 mm | 15.5 in
- Workpiece length, max.: 300 mm | 12 in
- Chuck dia., max.: 500 mm | 19.5 in
| Swing | 20.5" | 520.7 mm |
| Chuck Size | 19.5" | 495.3 mm |
| # Axis | 2 | 2 |
| Turning Dia | 15.5" | 393.7 mm |
| Machining Length | 12" | 304.8 mm |
| Live Tooling | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
