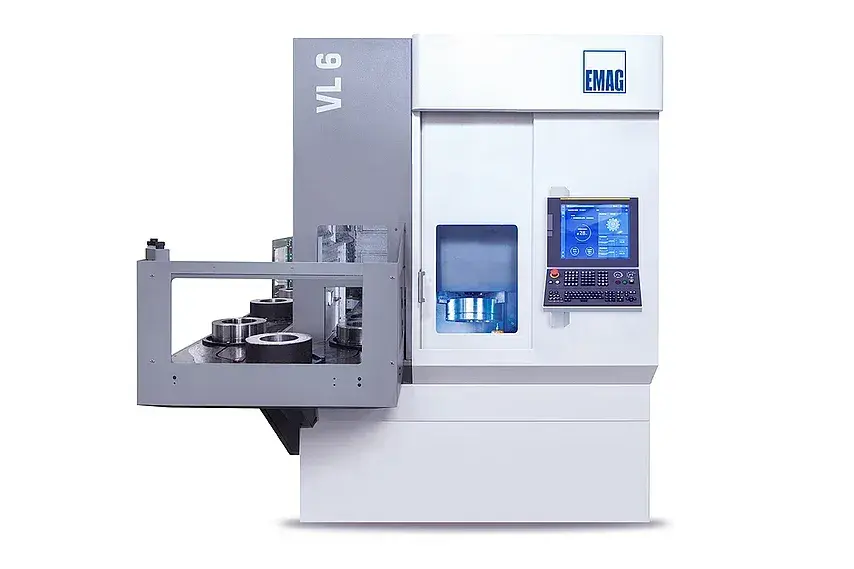

The VL 6 vertical lathe machine offers the same features as the newest EMAG modular designs in a vertical turning machine for larger, heavy workpieces. Equipped with a standard workpiece conveyor and pick-up spindle, the cnc lathe machine loads itself with minimized chip-to-chip times. With a machine base made of the polymer concrete MINERALIT®, a material well-known for its excellent damping quality, it offers extended tool life and outstanding surface finishes.
- Workpiece dia., max.: 300 mm | 12 in
- Workpiece length, max.: 250 mm | 10 in
- Chuck dia., max.: 400 mm | 15.5 in
| Swing | 16.5" | 419.1 mm |
| Chuck Size | 15.5" | 393.7 mm |
| # Axis | 2 | 2 |
| Turning Dia | 12" | 304.8 mm |
| Machining Length | 10" | 254 mm |
| Live Tooling | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
