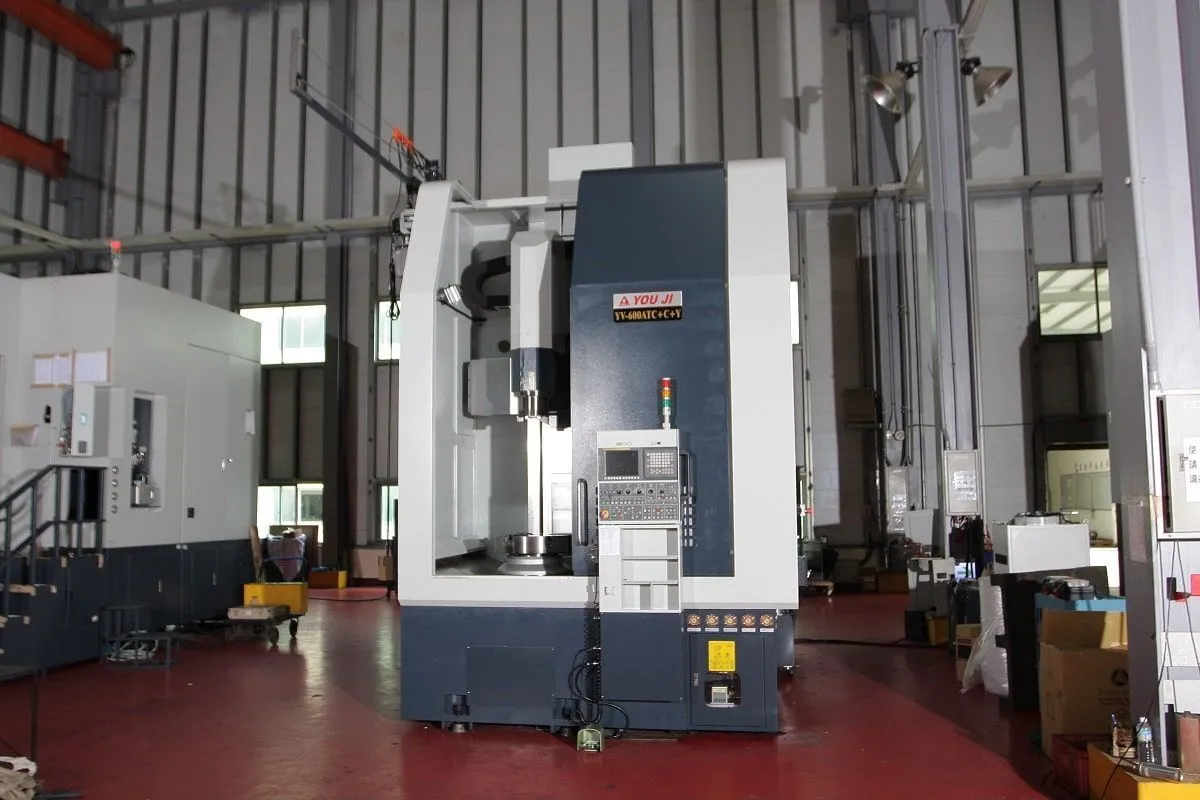

NEW YOU JI YV-600E2T
Overview
Description
You Ji YV Series – Vertical Turret/ATC Turning Centers & Lathes
The You Ji YV Series of vertical turning centers is engineered for efficient machining of small to medium-sized parts and is available in twin-spindle (left/right) configurations for increased productivity. Like all You Ji machines, this series features heavy-duty Meehanite cast iron construction, with a choice of either roller-type linear ways or box ways, along with large-diameter pre-tensioned ballscrews for enhanced rigidity and precision.
To suit a wide range of applications, the series offers four versatile tooling options: a conventional drum-type turret, hex turret, an automatic tool changer (ATC) for maximum flexibility, and cost-effective gang-type tooling. Standard features include hydraulic 3-jaw chuck packages and chip conveyors for smooth operation and efficient chip handling. A full range of productivity-enhancing options is also available, such as a full-contouring C-axis with live milling (on models equipped with drum turrets or ATCs), programmable high/low chuck pressure, high-pressure coolant systems, tailstocks, automatic tool setters, and part probes.
Specifications
| Swing | 35.4" | 899.16 mm |
|---|---|---|
| Work Ht-U/R | 21.65" | 549.91 mm |
| Power | 100 hp | 74.6 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Chuck Size | 32" | 812.8 mm |
| Turning Dia | 27.5" | 698.5 mm |
| Live Tooling | Qty 2 (6 Station Hex Turrets) | Qty 2 (6 Station Hex Turrets) |
| Control | CNC (Fanuc) | CNC (Fanuc) |
