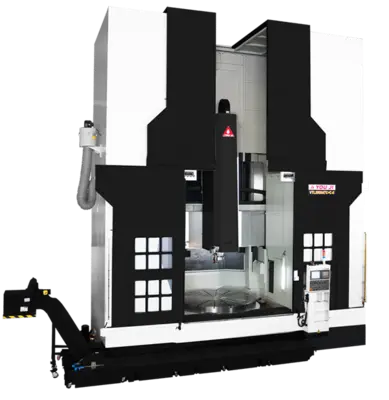

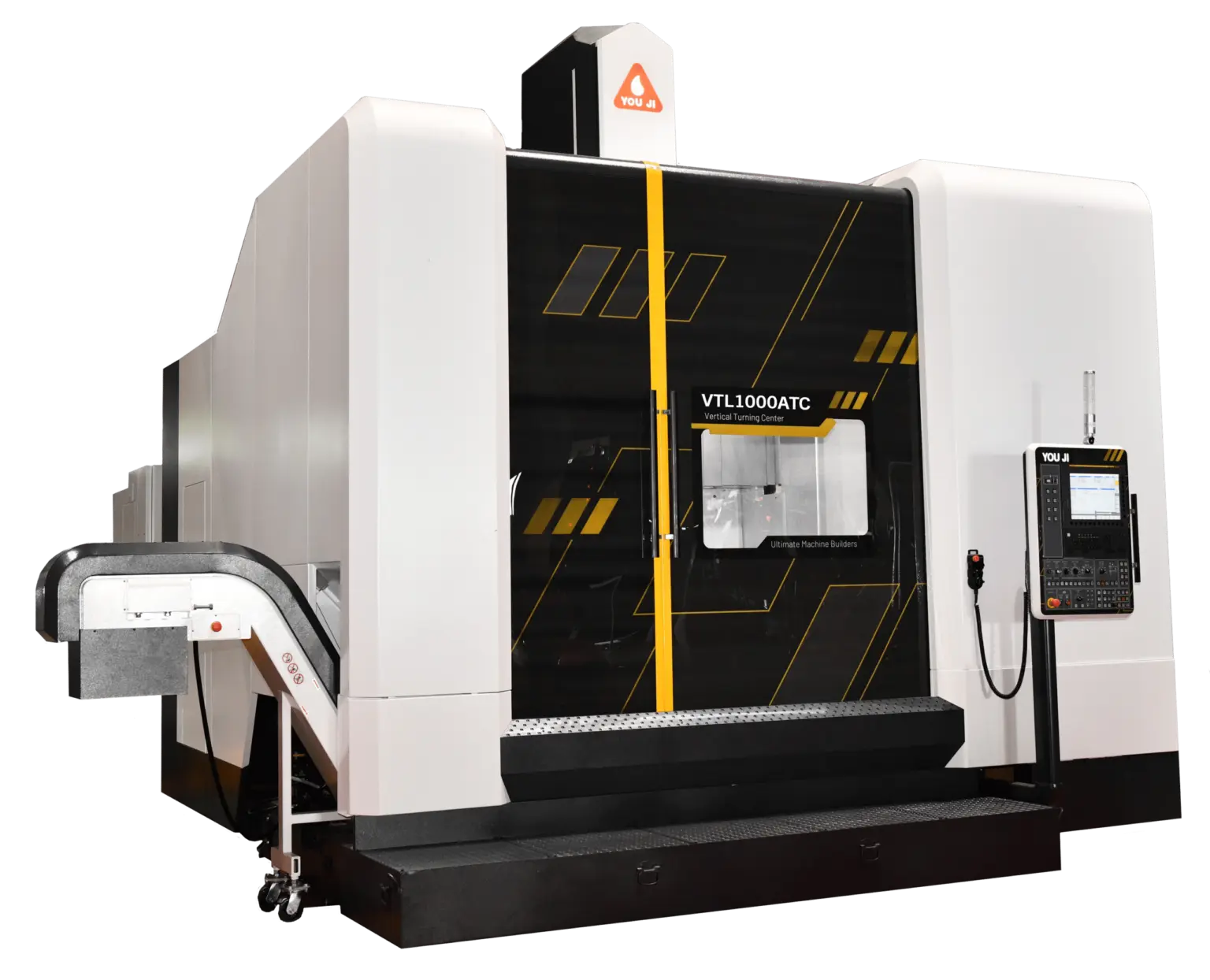

NEW YOU JI VTL-1000ATC
Overview
Description
You Ji YV / VTL Series – Ram-Type Vertical Turning Lathes & Vertical Turning Centers
The You Ji YV/VTL Series comprises vertical ram-type turning lathes engineered for machining large and heavy parts with exceptional precision and durability. These machines are built on a foundation of heavy-duty Meehanite cast iron, incorporating oversized box ways and large-diameter pre-tensioned ballscrews for superior rigidity and stability. All mating surfaces are Turcite-B coated and hand-scraped to ensure optimal alignment and long-term accuracy.

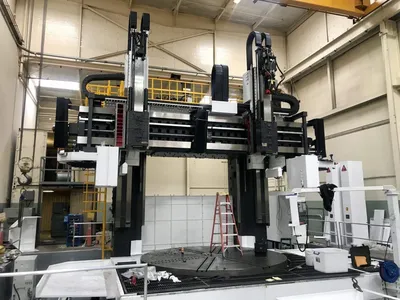

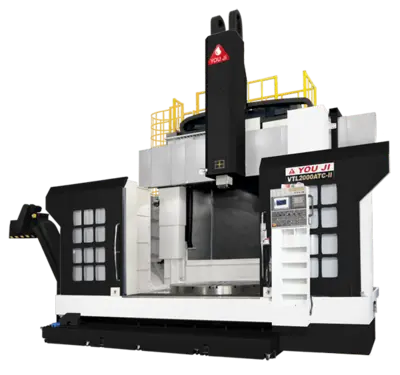

Both the YV and VTL series vertical lathes feature Timken cross roller table bearings, delivering industry-leading rigidity and precision. Variable column heights/ram strokes are available to accommodate very tall workpieces. Starting with the VTL-1600, twin ram configurations are available, while models VTL-3000 and above utilize a robust double-column design for enhanced structural integrity.
An optional C-axis system is available, featuring a dual-spindle motor and dual-pinion drive for virtually zero backlash and exceptional positioning accuracy and repeatability. All models are equipped with high-power spindle motors paired with ZF planetary gearboxes, delivering the high torque needed for heavy-duty metal removal.
Specifications
| Table Dia | 39.4" | 1,000.8 mm |
|---|---|---|
| Swing | 53.1" | 1,348.7 mm |
| Work Ht-U/R | 49.8" | 1,264.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 600 RPM | 600 RPM |
| Turning Dia | 43.3" | 1,099.8 mm |
| Live Tooling | Optional | Optional |
| Control | CNC (Fanuc) | CNC (Fanuc) |
