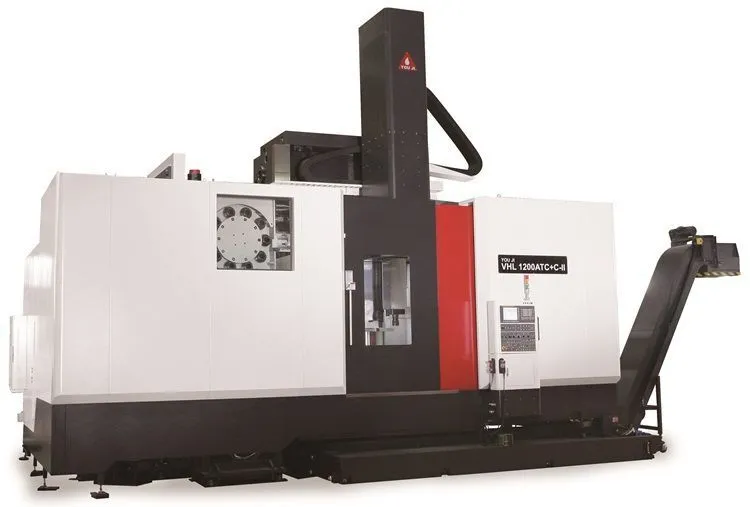

NEW YOU JI VHL-1200ATC
Overview
Description
You Ji VHL Series – Vertical Turning Lathes with Side Milling Head - Designed for Aerospace Manufacturing
The You Ji VHL Aerospace Components Series comprises advanced vertical turning lathes equipped with side heads, specifically designed for aerospace manufacturing applications. These machines combine a vertical ram with an integrated horizontal side head, facilitating multitasking operations such as turning, drilling, tapping, milling, and grinding.
The horizontal ram extends past wide diameters to access difficult-to-reach areas, enabling the use of shorter tools and eliminating the need to transfer parts to other machines. The side head allows for side milling without a right-angle head and supports pinch-turning of thin-walled aerospace components like engine casings.
Specifications
| Swing | 63" | 1,600.2 mm |
|---|---|---|
| Work Ht-U/R | 59.4" | 1,508.8 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 350 RPM | 350 RPM |
| Chuck Size | 49" | 1,244.6 mm |
| Turning Dia | 63" | 1,600.2 mm |
| Live Tooling | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
