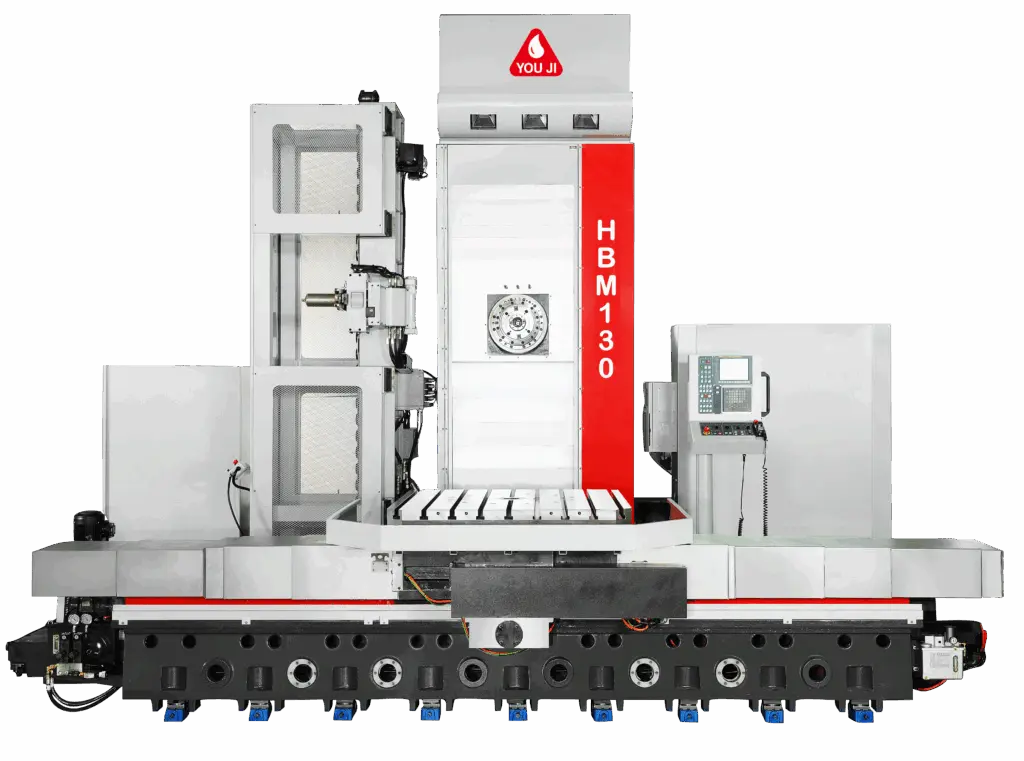

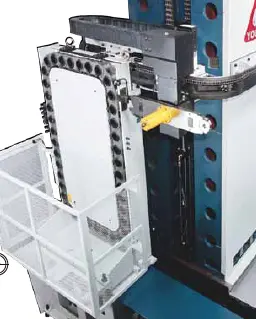

NEW YOU JI HBM-130

You Ji HBM Series – Table-Type Horizontal Boring Mills.

The You Ji HBM series of table-type horizontal boring mills feature a moving column for the Z axis and a moving table for the X axis. The design provides full support of the table over the entire X axis travel and results in maximum rigidity and accuracy, and eliminates the need for additional supports to withstand high table loads. The X axis features a unique triple box guideway with a hydrostatic way structure.

Standard X-Y-Z travels for the HBM-130 is 118″ x 102.4″ x 65″ (2997 mm x 2601 mm x 1651 mm).

The machine features precision ground and induction hardened box ways in all linear axes. All mating surfaces are hand scraped and coated with Turcite-B, and the ways are force lubricated via a pressurized automatic oil system. Large diameter, pre-tensioned ballscrews assure accurate positioning. All linear axes feature Heidenhain linear scales.

The triple-cooled 60 hp, 2,500 rpm spindle motor with 2 speed gear drive produces 1,452 lb-ft. of torque at 218 rpm.

The standard rotary B-axis has a hydrostatic bearing system and is driven via a high-precision dual pinion mechanism. With the high-resolution encoder, B-axis accuracy is +/-7.5 arc seconds with +/-5 arc seconds repeatability. Standard features includes a stand-alone heavy duty 60 tool (80 and 120 tool optional) arm type automatic tool changer, a comprehensive chip removal system, a high volume coolant system, and 300 psi coolant through the spindle. The standard Fanuc 31iM-B control features the Fanuc Alpha I servo system with 1,000,000 pulse encoders.

A comprehensive selection of options enables users to custom-tailor the machine’s capabilities to specific production needs. Choices include axis extenders, rotary tables, pallet changers, tool and part probes and high-pressure coolant systems.
