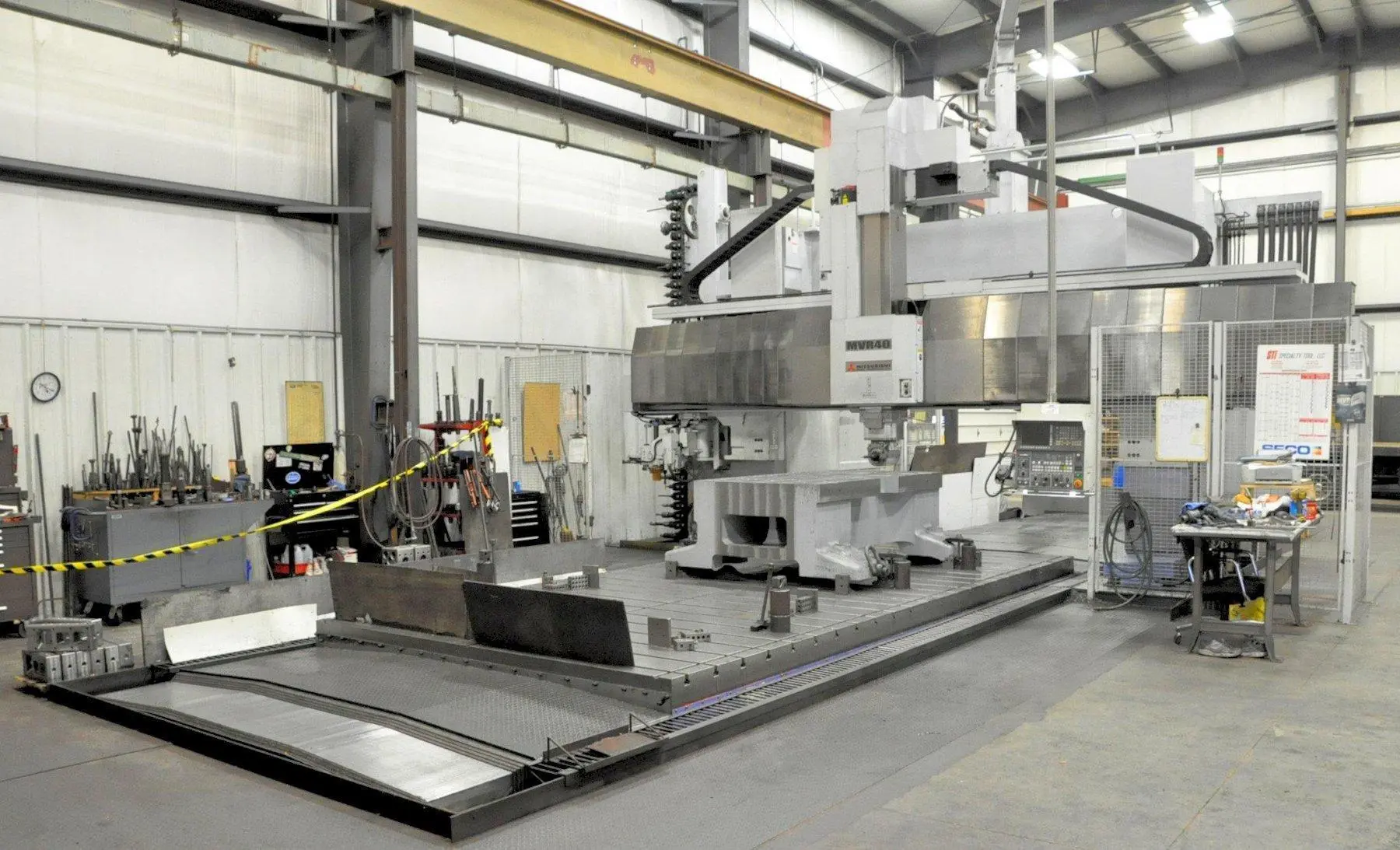

USED 2014 MITSUBISHI MVR-40 5-FACE
Overview
2014 Mitsubishi MVR-40 CNC Vertical Bridge Mill with Fanuc 31i-A Control, 80 Station ATC, Right Angle Head with 1 Degree Indexing, Coolant & Air Through Spindle, Column Riser for 84.6" Clearance
Specs
TABLE SIZE....................118.11" X 236.22"
LOAD CAPACITY.................77,000 LBS
SPINDLE NOSE TO TABLE.........84.6" (COLUMN RISER BLOCKS)
WIDTH BETWEEN COLUMNS.........147.6"
X-AXIS TRAVEL.................244.10"
Y-AXIS TRAVEL.................165.35"
Z-AXIS TRAVEL.................27.55"
W-AXIS TRAVEL.................31.49"
SPINDLE TAPER.................CV-50
SPINDLE MOTOR.................40 HP
SPINDLE SPEED.................4,000 RPM
SPINDLE DIAMETER..............4.33"
RAM SIZE......................13.7" SQUARE
CUTTING FEEDS.................0.039 - 393.7 IPM
X-AXIS POSITIONING ACCURACY...+/- 0.0010/244.1"
Y-AXIS POSITIONING ACCURACY...+/- 0.0008/157.5"
Z-AXIS POSITIONING ACCURACY...+/- 0.0002/31.5"
W-AXIS POSITIONING ACCURACY...+/- 0.0003/43.3"
X-AXIS RAPIDS.................590 IPM
Y-AXIS RAPIDS.................866 IPM
Z-AXIS RAPIDS.................393 IPM
W-AXIS RAPIDS.................118 IPM
APPROXIMATE MACHINE WEIGHT....130,000 LBS
Equipped With
FANUC 31I-A CNC CONTROLS
80 POSITION AUTOMATIC TOOL CHANGER
MITSUBISHI VHRH-30-35-35P-AC CNC RIGHT ANGLE HEAD WITH 1-DEGREE INDEXING
5-FACE MACHINING SOFTWARE
GEARED HEAD
ATTACHMENT STORAGE FOR RIGHT ANGLE HEAD
FACTORY COLUMN RISER FOR 84.6" CLEARANCE SPINDLE NOSE TO TABLE
INCH/METRIC CONVERSION, HELICAL INTERPOLATION
RIGID TAPPING INCLUDING 3 DIMENSIONAL TAPPING
COOLANT/AIR THRU SPINDLE, 141 PSI
CHIP CONVEYORS
PREPPED FOR WORKPIECE PROBING
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
