New | Build-to-Order

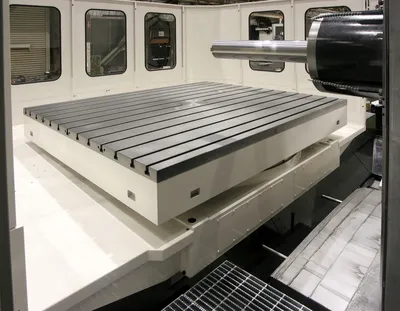

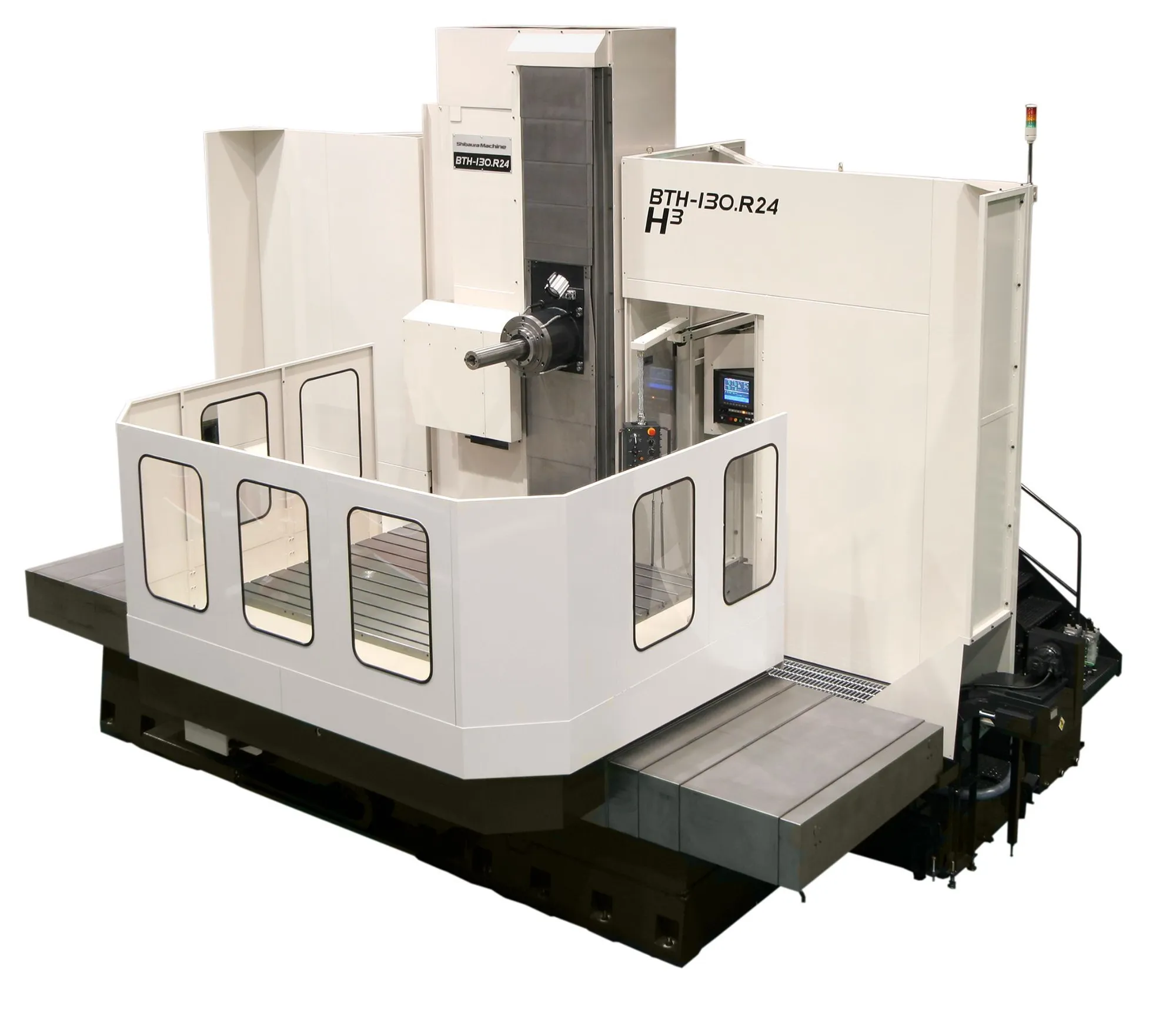

NEW SHIBAURA BTH-130R24

Texas, United States
1,555Listings|28Followers
Overview
Horizontal Table Type Boring Mills

With the experience of over 8,000 machines including continual technical improvements, the BTH-130.R24 series Horizontal Boring Mill has been developed to provide horizontal boring operational ability with machining center productivity and flexibility

Specs
Spindle Size
5.1"
129.54 mm
X-Horiz Tvl of Table
118"
2,997.2 mm
Y-Vert Tvl of Head
90.5"
2,298.7 mm
RPM
4,000 RPM
4,000 RPM
Table-W
79"
2,006.6 mm
Table-L
94"
2,387.6 mm
Spindle Tvl.
27.5"
698.5 mm
Control
CNC (Fanuc)
CNC (Fanuc)
