New | Build-to-Order

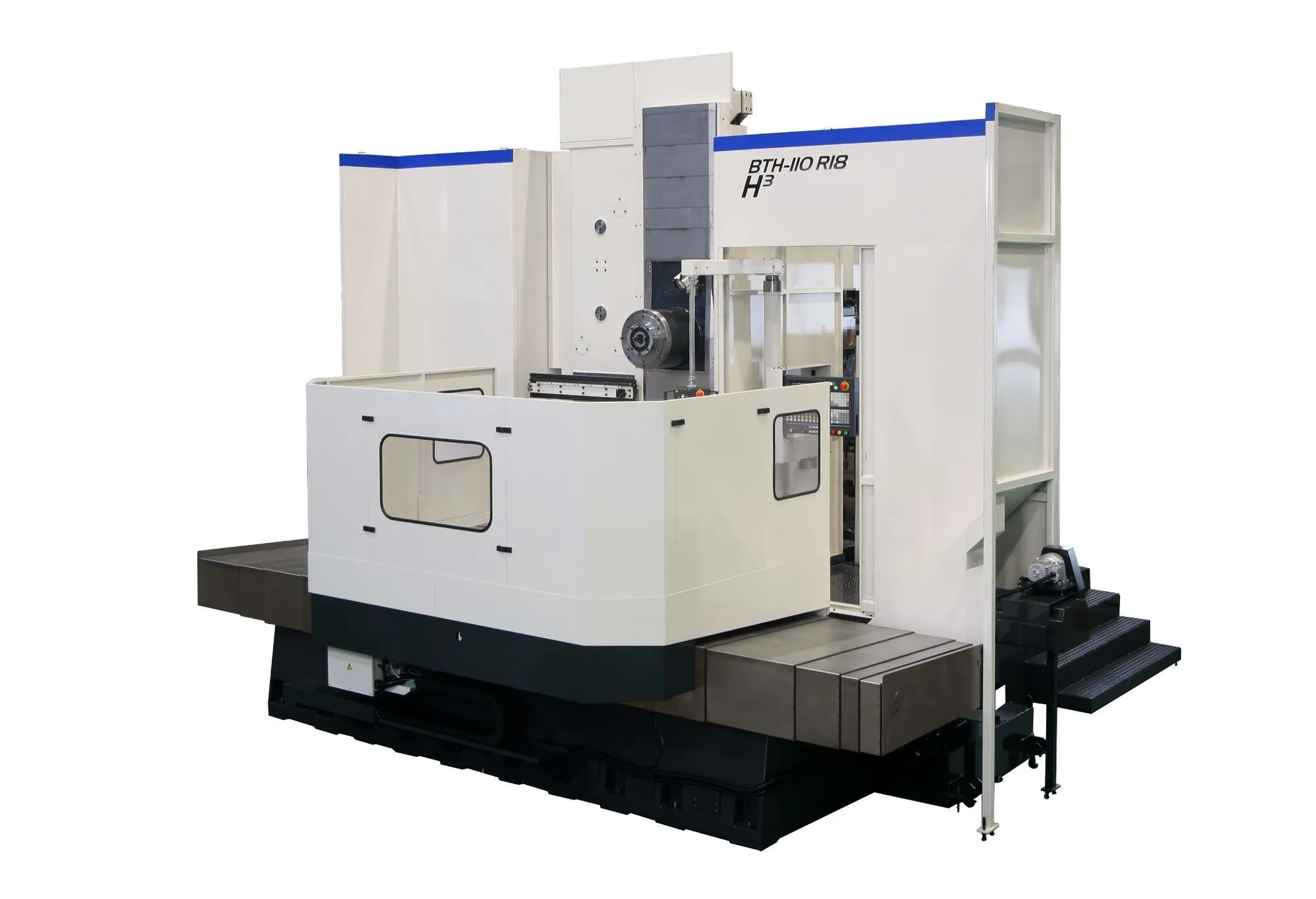

NEW SHIBAURA BTH-110R18

Texas, United States
1,555Listings|28Followers
Overview
Horizontal Table Type Boring Mills

With the experience of over 8,000 machines including continual technical improvements, the BTH-110.R18 series Horizontal Boring Mill has been developed to provide horizontal boring operational ability with machining center productivity and flexibility.

Specs
Spindle Size
4.3"
109.22 mm
X-Horiz Tvl of Table
100"
2,540 mm
Y-Vert Tvl of Head
80"
2,032 mm
RPM
4,000 RPM
4,000 RPM
Table-W
55"
1,397 mm
Table-L
71"
1,803.4 mm
Spindle Tvl.
20"
508 mm
Control
CNC (Fanuc)
CNC (Fanuc)
