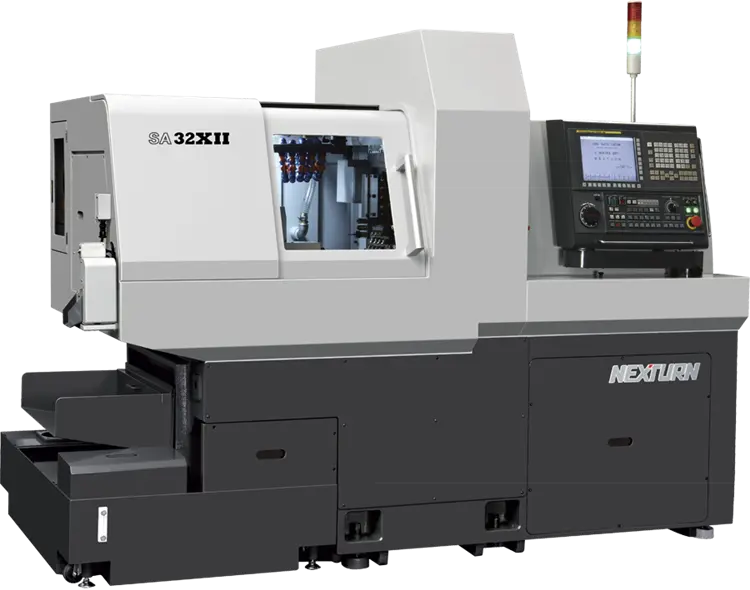

NEW NEXTURN SA-32XII

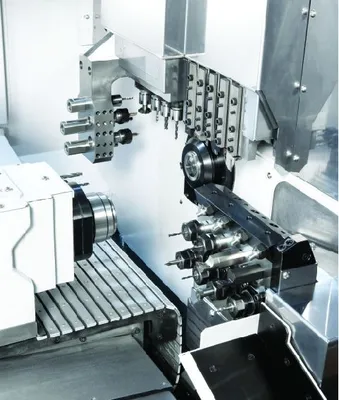

The SA(XII) series of Nexturn Swiss CNC lathes consists of five models with or without rotary synchronous guide bushings. An optional continuous swiveling 135˚ B-axis permits variable angle machining up to 10 front and 8 back-side live tools. Use of guide bushings permits turning of longer parts, while machines without guide bushings are ideal for processing short parts and cold drawn material.

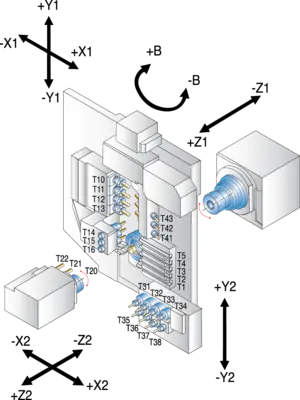

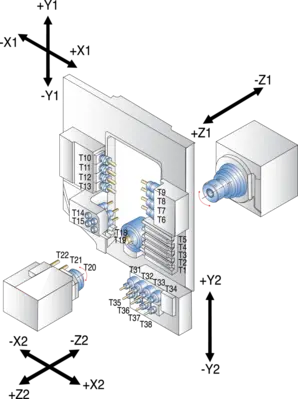

The machines feature up to 8 axes and up to 29 total tools, increasing to 9 axes with the B-axis. Maximum bar diameter capacity of the main and sub spindles is 20mm – 51mm, depending on machine size. Maximum turning lengths are 118 mm – 275mm.

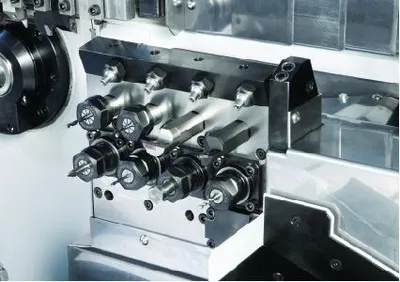

Main and sub spindles provide as much as 20 HP (15kW) at speeds as high as 8,000 RPM while offering full C-axis capability. The synchronous sub-spindle permits simultaneous front and back working. Live tools provide 1.3 HP (1 kW) – 3 HP (3.3 kW) and 6,000 RPM. Rigid tapping is standard.

Excellent rigidity results from the use of FEA technology in machine structure design. The slant-bed machines maximize ease of use with ergonomically arranged controls and fully opening covers and doors.

Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements.

- B Series 7-Axis Industry-Leading Efficient Model with 22 Tools
- PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles
- PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing
- XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing
- XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
