NEW NEXTURN SA-20PYII

The Nexturn SA(PYII) Swiss CNC lathe series are our high-level machines featuring an exchangeable guide bushing Removing the guide bushing for short parts keeps remnant length to a minimum with a maximum turn length of 60mm, and allows the use of non-ground bar stock. The guide bushing, for longer parts utilizing ground bar stock, allows maximum turning length up to 210mm. The PYII series features 8 axes and 4 different models from 20mm to 38mm bar capacity.

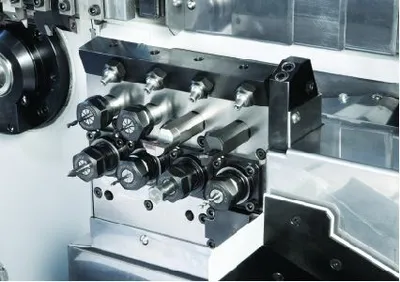

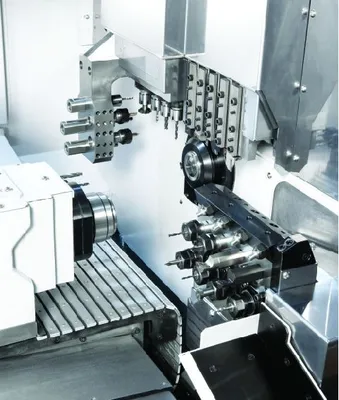

The SA(PYII) features a total of 8 axes (Z1, X1, Y1, Z2, X2, Y2, C1, and C2) and up to 27 total tools. Bar capacity is 20/26/32/38mm. High precision integral motor spindles on both main and sub provide excellent precision and fast cycle times.

The machine is built for rigidity, accuracy, reliability, and ease of use. The highly rigid one-piece cast iron machine bed is designed using FEM software. Powerful motors for both turning and milling deliver outstanding machining capability. The use of ultra-precision pre-tensioned ballscrews and LM guides produce high accuracy. High speed positioning of 1260”/min. reduces cycle times. A sliding operators door, as opposed to a lift up style door, provides easy access to the machining area and is drip free.

Six Different CNC Swiss Lathe Series Are Designed to Meet Specific Production and Economic Requirements.

- B Series 7-Axis Industry-Leading Efficient Model with 22 Tools
- PII Series 7-Axis Performance Model with Exchangeable Guide Bushing & Modular Rotary Spindles
- PYII Series 8-Axis Performance Model, Dual Y, 27 Tools, Modular Rotary Spindles, & Exchangeable Guide Bushing
- XII Series 9-Axis Advanced Model with Fully Programmable B-Axis, 33 Tool Capacity, Modular Rotary - Spindles, & Exchangeable Guide Bushing
- XIII Series 11-Axis Advanced Model with 3-Channel Dual Opposed Gang Tool Post, 33 Tools, & Modular Rotary Spindles
