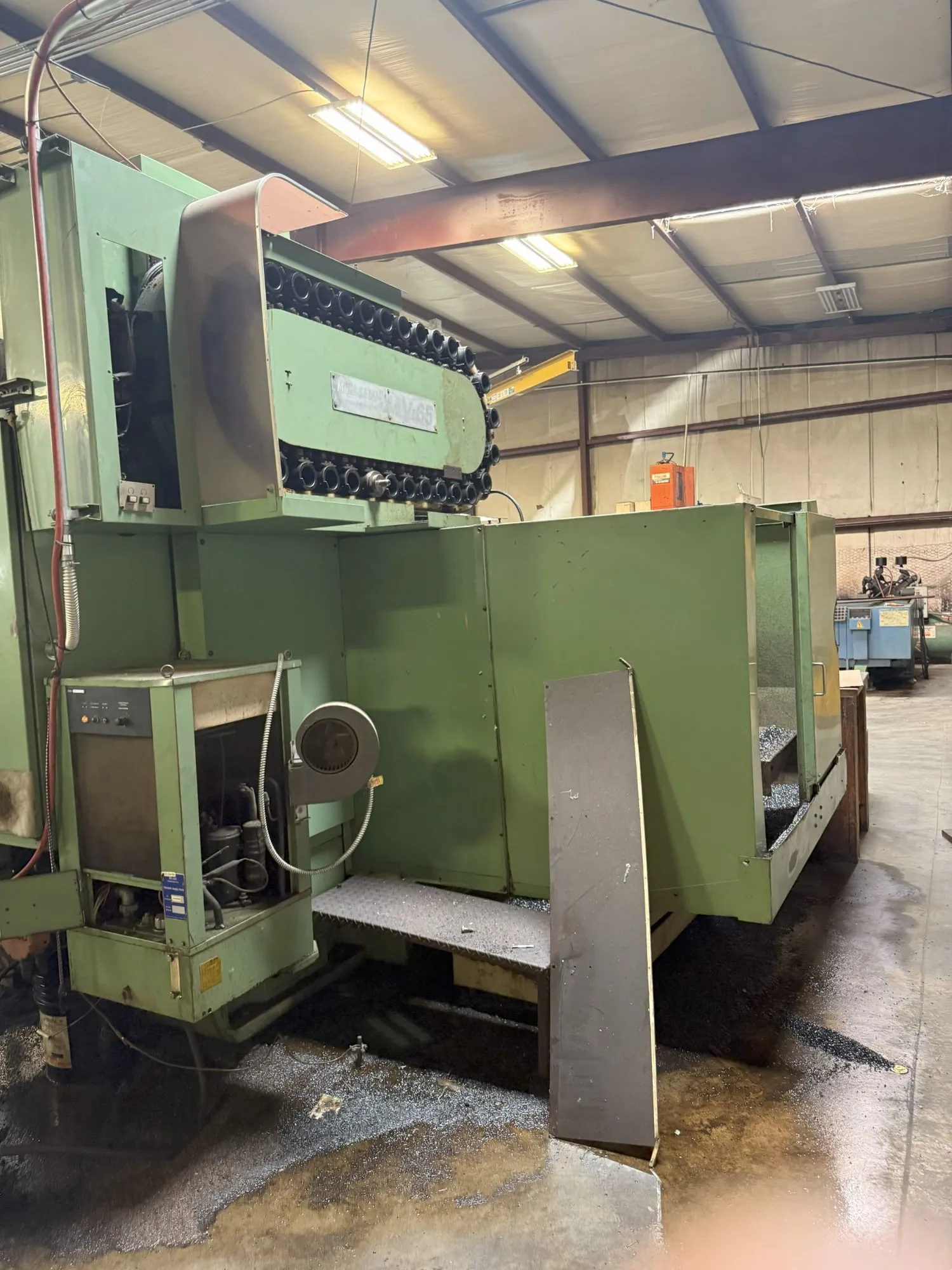

Mori Seiki MV-65/50 Vertical Machining Center with Fanuc 11M Control, and 4th Axis Rotary Table
| X | 50" | 1,270 mm |
| Y | 25.6" | 650.24 mm |
| Z | 25.6" | 650.24 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 67" | 1,701.8 mm |
| Table-L | 26" | 660.4 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 11M) | CNC (Fanuc 11M) |
| Dimensions | 172" x 152" x 124" | 172" x 152" x 124" |
| Weight | 29,800 LBS | 29,800 LBS |
ABLE SIZE.......................67" x 26"
MAXIMUM TABLE LOAD...............4,400 LBS
SPINDLE NOSE TO TABLE TOP........7.9" - 33.5"
X-AXIS TRAVEL....................50.0"
Y-AXIS TRAVEL....................25.6"
Z-AXIS TRAVEL....................25.6"
SPINDLE MOTOR....................20 HP
SPINDLE TAPER....................CAT-50
SPINDLE SPEEDS...................4,000 RPM
RAPID TRAVERSE RATE X & Y AXES...590 IPM
RAPID TRAVERSE RATE Z AXIS.......472 IPM
NUMBER OF TOOLS..................30 ATC
DIMENSIONS, APPROX...............172"L x 152"W x 124"H
WEIGHT, APPROX...................29,800 LBS
Fanuc 11M CNC Control
4th Axis Rotary Table
30 Station ATC
Chip Conveyor
VIDEOS:
https://youtube.com/shorts/uhqQeg_SyQI
https://youtube.com/shorts/54OzTaxDQ-w
https://youtube.com/shorts/XzPD6cSDNlI
https://youtube.com/shorts/WRPmtKbm4ic
https://youtube.com/shorts/pGLooz4KgkU
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
